54-710

Active

NTE Electronics, Inc

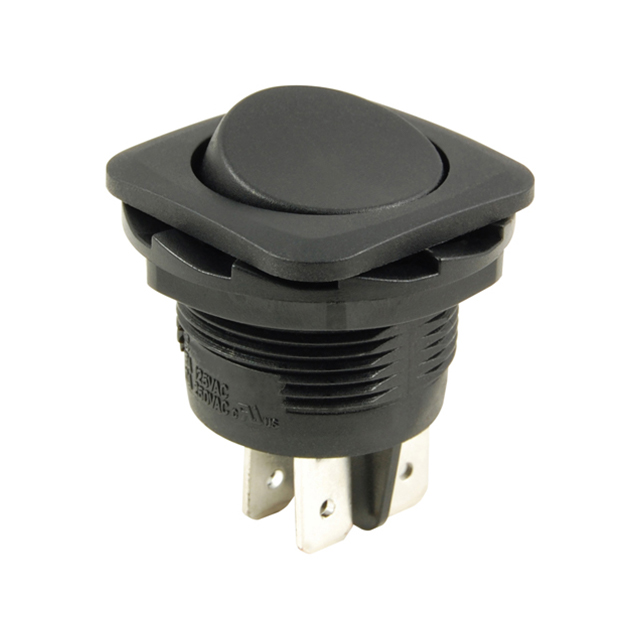

SWITCH ROCKER DPST 16A 125V

Deep-Dive with AI

Search across all available documentation for this part.

54-710

Active

NTE Electronics, Inc

SWITCH ROCKER DPST 16A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	54-710

Actuator Marking	No Marking
Actuator Type	Round
Circuit	DPST
Color - Actuator/Cap	Black
Current Rating (Amps)	16 A
Mounting Type	Panel Mount, Threaded Body with Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

- Series

Part	Illumination	Voltage Rating - AC	Termination Style	Circuit	Current Rating (Amps)	Actuator Type	Switch Function	Actuator Length [x]	Features	Panel Cutout Dimensions [diameter]	Electrical Life	Bushing Thread	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Ingress Protection	Color - Actuator/Cap	Illumination Voltage (Nominal)	Mounting Type	Actuator Marking	Illumination Type, Color	Approval Agency
NTE Electronics, Inc 54-730	Non-Illuminated	125 V	Solder Lug	SPDT	10 A	Paddle	On-Off-On	23.5 mm
NTE Electronics, Inc 54-659	Non-Illuminated	125 V	Quick Connect - 0.250" (6.3mm)	SPDT	15 A	Standard Round	Mom-Off-Mom	17.44 mm	Sealed	12.7 mm	50000 Cycles	15/32-32	Brass Nickel Plated	65.6 °C	-17.8 °C
NTE Electronics, Inc 54-728	Non-Illuminated	125 V	Solder Lug	DPDT	10 A	Paddle	On-On	23.5 mm
NTE Electronics, Inc 54-142	Non-Illuminated	120 V	Solder Lug	DPDT	3 A	Standard Round	On-On	9.4 mm						85 °C	-30 ░C	28 V
NTE Electronics, Inc 54-727	Non-Illuminated	125 V	Solder Lug	SPST	10 A	Paddle	On-Off	23.5 mm
NTE Electronics, Inc 54-143	Non-Illuminated	125 V	Screw Terminal	SPST	6 A	Standard Round	On-Off	17.44 mm						65.6 °C	-17.8 °C
NTE Electronics, Inc 54-459	Non-Illuminated	125 V	Quick Connect - 0.250" (6.3mm)	SPDT	15 A	Standard Round	On-Off-On	17.44 mm	Sealed	12.7 mm	50000 Cycles	15/32-32	Brass Nickel Plated	65.6 °C	-17.8 °C
NTE Electronics, Inc 54-151		125 V	Quick Connect - 0.250" (6.3mm)	SPST-NO	16 A	Concave (Curved) - Illuminated	Off-Mom							85 °C	-40 °C		IP65 - Dust Tight Water Resistant	Black	12 VDC	Panel Mount Snap-In	No Marking	Amber/Green LED	CSA UR
NTE Electronics, Inc 54-710		125 V	Quick Connect - 0.250" (6.3mm)	DPST	16 A	Round	On-Off							85 °C	-20 C			Black		Panel Mount Threaded Body with Nut	No Marking
NTE Electronics, Inc 54-721	Illuminated		Quick Connect - 0.250" (6.3mm)	SPST	20 A	Standard Round	On-Off	19.2 mm						85 °C	-20 C	12 V			12 VDC			LED Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

- Series

Rocker Switch DPST 16A (AC) 125 V Panel Mount, Threaded Body with Nut

Documents

Technical documentation and resources

No documents available
