826647-2

Active

TE Connectivity AMP Connectors

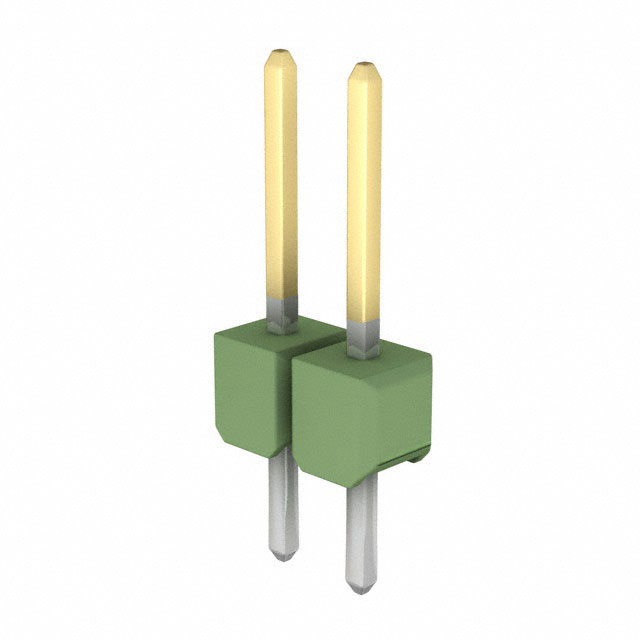

CONN HEADER VERT 2POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

826647-2

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 2POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	18000	$ 0.51

Description

General part information

826647 Series

Connector Header Through Hole 2 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	826647-2	826647 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	0.099 µm	0.099 µm
Contact Finish Thickness - Mating	3.9 µin	3.9 µin
Contact Finish Thickness - Post	3 µm	3 µm
Contact Finish Thickness - Post	118.1 µin	118.1 µin
Contact Length - Mating	0.228 in	0.228 in
Contact Length - Mating	5.8 mm	5.8 mm
Contact Length - Post	2.5 mm	2.5 mm
Contact Length - Post	0.098 in	0.098 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	2	2 - 50
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	11.1 mm	11.1 mm
Overall Contact Length	0.437 in	0.437 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

826647 Series

CONN HEADER VERT 4POS 2.54MM

Part	Current Rating (Amps)	Contact Finish - Mating	Style	Contact Type	Contact Shape	Contact Finish - Post	Connector Type	Number of Positions	Contact Length - Mating	Contact Length - Mating	Contact Material	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Termination	Material Flammability Rating	Mounting Type	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Insulation Material	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding
TE Connectivity AMP Connectors 826647-4	5 A	Gold	Board to Board, Cable	Male Pin	Square	Tin	Breakaway, Header	4	0.228 in	5.8 mm	Brass	2.5 mm	0.098 in	11.1 mm	0.437 in	Solder	UL94 V-0	Through Hole	Green	0.099 µm	3.9 µin	1	-65 ░C	105 ░C	All	Polybutylene Terephthalate (PBT)	Push-Pull	0.1 in	2.54 mm	3 µm	118.1 µin	Unshrouded
TE Connectivity AMP Connectors 826647-7	5 A	Gold	Board to Board, Cable	Male Pin	Square	Tin	Breakaway, Header	7	0.228 in	5.8 mm	Brass	2.5 mm	0.098 in	11.1 mm	0.437 in	Solder	UL94 V-0	Through Hole	Green	0.099 µm	3.9 µin	1	-65 ░C	105 ░C	All	Polybutylene Terephthalate (PBT)	Push-Pull	0.1 in	2.54 mm	3 µm	118.1 µin	Unshrouded
TE Connectivity AMP Connectors 826647-5	5 A	Gold	Board to Board, Cable	Male Pin	Square	Tin	Breakaway, Header		0.228 in	5.8 mm	Brass	2.5 mm	0.098 in	11.1 mm	0.437 in	Solder	UL94 V-0	Through Hole	Green	0.099 µm	3.9 µin	1	-65 ░C	105 ░C	All	Polybutylene Terephthalate (PBT)	Push-Pull	0.1 in	2.54 mm	3 µm	118.1 µin	Unshrouded
TE Connectivity AMP Connectors 826647-6	5 A	Gold	Board to Board, Cable	Male Pin	Square	Tin	Breakaway, Header	6	0.228 in	5.8 mm	Brass	2.5 mm	0.098 in	11.1 mm	0.437 in	Solder	UL94 V-0	Through Hole	Green	0.099 µm	3.9 µin	1	-65 ░C	105 ░C	All	Polybutylene Terephthalate (PBT)	Push-Pull	0.1 in	2.54 mm	3 µm	118.1 µin	Unshrouded
TE Connectivity AMP Connectors 5-826647-0	5 A	Gold	Board to Board, Cable	Male Pin	Square	Tin	Breakaway, Header	50	0.228 in	5.8 mm	Brass	2.5 mm	0.098 in	11.1 mm	0.437 in	Solder	UL94 V-0	Through Hole	Green	0.099 µm	3.9 µin	1	-65 ░C	105 ░C	All	Polybutylene Terephthalate (PBT)	Push-Pull	0.1 in	2.54 mm	3 µm	118.1 µin	Unshrouded
TE Connectivity AMP Connectors 826647-3	5 A	Gold	Board to Board, Cable	Male Pin	Square	Tin	Breakaway, Header		0.228 in	5.8 mm	Brass	2.5 mm	0.098 in	11.1 mm	0.437 in	Solder	UL94 V-0	Through Hole	Green	0.099 µm	3.9 µin	1	-65 ░C	105 ░C	All	Polybutylene Terephthalate (PBT)	Push-Pull	0.1 in	2.54 mm	3 µm	118.1 µin	Unshrouded
TE Connectivity AMP Connectors 826647-8	5 A	Gold	Board to Board, Cable	Male Pin	Square	Tin	Breakaway, Header	8	0.228 in	5.8 mm	Brass	2.5 mm	0.098 in	11.1 mm	0.437 in	Solder	UL94 V-0	Through Hole	Green	0.099 µm	3.9 µin	1	-65 ░C	105 ░C	All	Polybutylene Terephthalate (PBT)	Push-Pull	0.1 in	2.54 mm	3 µm	118.1 µin	Unshrouded
TE Connectivity AMP Connectors 826647-2	5 A	Gold	Board to Board, Cable	Male Pin	Square	Tin	Breakaway, Header	2	0.228 in	5.8 mm	Brass	2.5 mm	0.098 in	11.1 mm	0.437 in	Solder	UL94 V-0	Through Hole	Green	0.099 µm	3.9 µin	1	-65 ░C	105 ░C	All	Polybutylene Terephthalate (PBT)	Push-Pull	0.1 in	2.54 mm	3 µm	118.1 µin	Unshrouded
