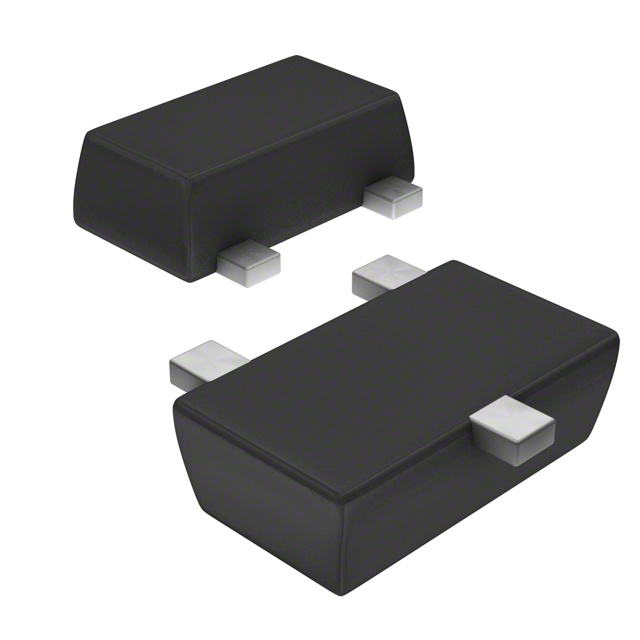

CMPSH1-4 TR PBFREE

Obsolete

Central Semiconductor Corp

DIODE SCHOTTKY 40V 1.75A SOT23F

Search across all available documentation for this part.

Obsolete

Central Semiconductor Corp

DIODE SCHOTTKY 40V 1.75A SOT23F

Technical Specifications

Parameters and characteristics for this part

Specification	CMPSH1-4 TR PBFREE

Capacitance @ Vr, F	25 pF
Current - Average Rectified (Io)	1.75 A
Current - Reverse Leakage @ Vr	100 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	SOT-23-3 Flat Leads
Speed	200 mA, 500 ns
Supplier Device Package	SOT-23F
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	620 mV

Part	Speed	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Technology	Package / Case
Central Semiconductor Corp CMPSH1-4 TR PBFREE	200 mA 500 ns	620 mV	150 °C	-65 C	Surface Mount	1.75 A	100 µA	25 pF	40 V	SOT-23F	Schottky	SOT-23-3 Flat Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 40 V 1.75A Surface Mount SOT-23F
