HW-05-08-T-S-250-SM-003-TR

Active

Samtec Inc.

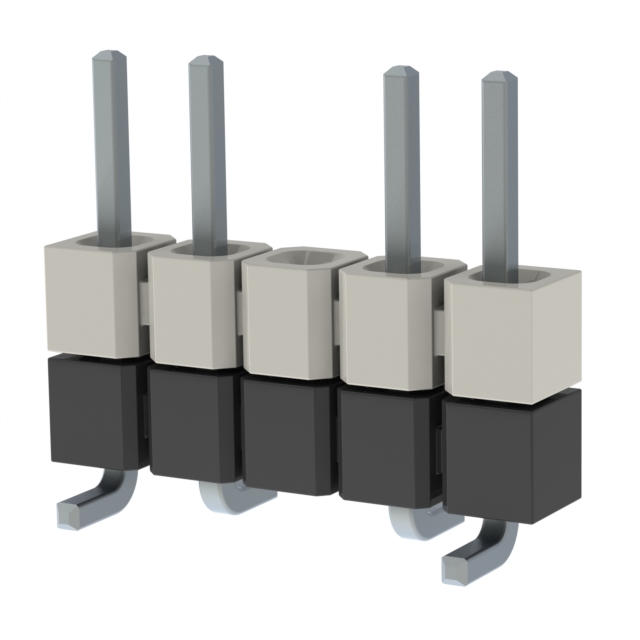

CONN HDR 5POS 0.1 STACK SMD TIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HW-05-08-T-S-250-SM-003-TR

Active

Samtec Inc.

CONN HDR 5POS 0.1 STACK SMD TIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW-05-08-T-S-250-SM-003-TR

Color	Black
Contact Finish - Post (Mating)	Tin
Length - Overall Pin	11.811 mm
Length - Overall Pin	0.465 in
Length - Post (Mating) [x]	5.791 mm
Length - Post (Mating) [x]	0.215 in
Length - Stack Height [x]	0.25 in
Length - Stack Height [x]	6.35 mm
Mounting Type	Surface Mount
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

HW-05-08 Series

Part	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Contact Finish - Post (Mating)	Length - Overall Pin	Length - Overall Pin	Row Spacing [x]	Row Spacing	Termination	Number of Positions	Length - Stack Height [x]	Length - Stack Height [x]	Pitch [x]	Pitch [x]	Mounting Type	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Color	Number of Rows	Length - Tail [x]	Length - Tail [x]
Samtec Inc. HW-05-08-S-D-280-SM-A-TR	30 µin	0.76 µm	Gold	11.811 mm	0.465 in	0.1 in	2.54 mm	Solder	10	7.112 mm	0.28 in	2.54 mm	0.1 in	Surface Mount	4.699 mm	0.185 in	Black	2
Samtec Inc. HW-05-08-F-D-251-SM-A-TR	3 Áin	0.076 Ám	Gold	11.811 mm	0.465 in	0.1 in	2.54 mm	Solder	10	6.375 mm	0.251 in	2.54 mm	0.1 in	Surface Mount	5.436 mm	0.214 in	Black	2
Samtec Inc. HW-05-08-T-D-350-118			Tin	13.462 mm	0.53 in	0.1 in	2.54 mm	Solder	10	8.89 mm	0.35 in	2.54 mm	0.1 in	Through Hole	1.575 mm	0.062 in	Black	2
Samtec Inc. HW-05-08-F-S-255-SM	3 Áin	0.076 Ám	Gold	11.811 mm	0.465 in			Solder		6.477 mm	0.255 in	2.54 mm	0.1 in	Surface Mount	5.334 mm	0.21 in	Black	1
Samtec Inc. HW-05-08-F-D-370-SM	3 Áin	0.076 Ám	Gold	11.811 mm	0.465 in	0.1 in	2.54 mm	Solder	10			2.54 mm	0.1 in	Surface Mount	2.413 mm	0.095 in	Black	2
Samtec Inc. HW-05-08-T-D-300-SM			Tin	11.811 mm	0.465 in	0.1 in	2.54 mm	Solder	10	7.62 mm	0.3 in	2.54 mm	0.1 in	Surface Mount	4.191 mm	0.165 in	Black	2
Samtec Inc. HW-05-08-S-D-300-SM-A-TR	30 µin	0.76 µm	Gold	11.811 mm	0.465 in	0.1 in	2.54 mm	Solder	10	7.62 mm	0.3 in	2.54 mm	0.1 in	Surface Mount	4.191 mm	0.165 in	Black	2
Samtec Inc. HW-05-08-G-D-350-SM-A	10 Áin	0.25 Ám	Gold	11.811 mm	0.465 in	0.1 in	2.54 mm	Solder	10	8.89 mm	0.35 in	2.54 mm	0.1 in	Surface Mount	2.921 mm	0.115 in	Black	2
Samtec Inc. HW-05-08-T-S-250-SM-003-TR			Tin	11.811 mm	0.465 in			Solder		6.35 mm	0.25 in	2.54 mm	0.1 in	Surface Mount	5.791 mm	0.215 in	Black	1
Samtec Inc. HW-05-08-F-S-300-100	3 Áin	0.076 Ám	Gold	13.462 mm	0.53 in			Solder		7.62 mm	0.3 in	2.54 mm	0.1 in	Through Hole	3.302 mm	0.13 in	Black	1	0.1 "	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 0.81

Description

General part information

HW-05-08 Series

5 Position Header Spacer Connector 0.100" (2.54mm) Tin Surface Mount
