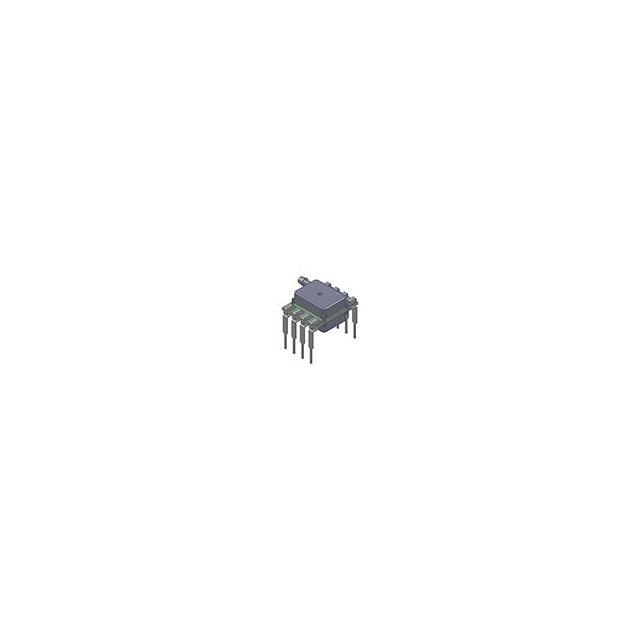

ELVH-M160G-HKNJ-C-N5A4

Active

Amphenol All Sensors Corporation

SENSOR 2.32PSIG 0.11" 14BIT

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 2.32PSIG 0.11" 14BIT

Technical Specifications

Parameters and characteristics for this part

SENSOR 2.32PSIG 0.11" 14BIT

Part	Operating Pressure	Operating Pressure	Port Style	Output	Output Type	Features	Termination Style	Accuracy	Voltage - Supply [Min]	Voltage - Supply [Max]	Pressure Type	Package / Case	Port Size	Port Size	Port Size	Mounting Type
Amphenol All Sensors Corporation ELVH-M160G-HKNJ-C-N5A4	2.32 PSI	16 kPa	Needle	14 b	I2C	Temperature Compensated	J Lead	0.25 %	2.7 V	5.5 V	Gauge	8-SMD, J-Lead, Top Port	Male, Tube	0.11 "	2.8 mm	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 2.32PSI (16kPa) Gauge Male - 0.11" (2.8mm) Tube 14 b 8-SMD, J-Lead, Top Port
