DS87C530-QNL+
ActiveAnalog Devices Inc./Maxim Integrated

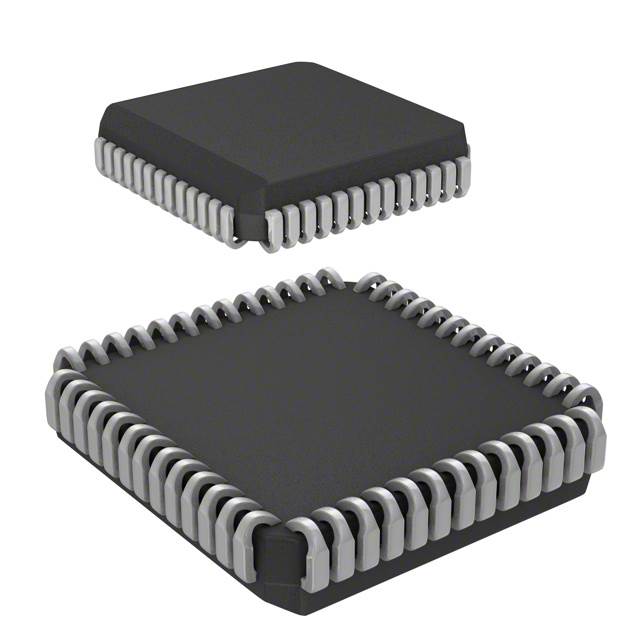

IC MCU 8BIT 16KB OTP 52PLCC
Deep-Dive with AI
Search across all available documentation for this part.
DS87C530-QNL+
ActiveAnalog Devices Inc./Maxim Integrated
IC MCU 8BIT 16KB OTP 52PLCC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS87C530-QNL+ | DS87C530 Series |
|---|---|---|
| Connectivity | UART/USART, SIO, EBI/EMI | UART/USART, SIO, EBI/EMI |
| Core Processor | 8051 | 8051 |
| Core Size | 8-Bit | 8-Bit |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 32 | 32 |
| Operating Temperature [Max] | 85 °C | 70 - 85 °C |
| Operating Temperature [Min] | -40 °C | -40 - 0 °C |
| Oscillator Type | External | External |
| Package / Case | 52-LCC (J-Lead) | 52-TQFP, 52-LCC (J-Lead), 52-CLCC, Window (J Lead) |
| Peripherals | PWM, WDT, Power-Fail Reset | PWM, WDT, Power-Fail Reset |
| Program Memory Size | 16 KB | 16 KB |
| Program Memory Type | OTP | OTP, UV, EPROM |
| RAM Size | 1 K | 1 K |
| Speed | 33 MHz | 33 MHz |
| Supplier Device Package | 52-PLCC (19.13x19.13) | 52-TQFP (10x10), 52-PLCC (19.13x19.13), 52-CLCC (19.2x19.2) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 4.5 V | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 48.31 | |
| 10 | $ 47.71 | |||
DS87C530 Series
IC MCU 8BIT 16KB OTP 52TQFP
| Part | Program Memory Size | Core Size | Program Memory Type | Core Processor | Package / Case | Mounting Type | Supplier Device Package | Connectivity | Number of I/O | Oscillator Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | RAM Size | Speed | Peripherals |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DS87C530-ECL | 16 KB | 8-Bit | OTP | 8051 | 52-TQFP | Surface Mount | 52-TQFP (10x10) | EBI/EMI, SIO, UART/USART | 32 | External | 70 °C | 0 °C | 5.5 V | 4.5 V | 1 K | 33 MHz | |
Analog Devices Inc./Maxim Integrated DS87C530-QNL | 16 KB | 8-Bit | OTP | 8051 | 52-LCC (J-Lead) | Surface Mount | 52-PLCC (19.13x19.13) | EBI/EMI, SIO, UART/USART | 32 | External | 85 °C | -40 °C | 5.5 V | 4.5 V | 1 K | 33 MHz | |
Analog Devices Inc./Maxim Integrated DS87C530-KCL | 16 KB | 8-Bit | EPROM, UV | 8051 | 52-CLCC, Window (J Lead) | Surface Mount | 52-CLCC (19.2x19.2) | EBI/EMI, SIO, UART/USART | 32 | External | 70 °C | 0 °C | 5.5 V | 4.5 V | 1 K | 33 MHz | |
Analog Devices Inc./Maxim Integrated DS87C530-QCL+ | 16 KB | 8-Bit | OTP | 8051 | 52-LCC (J-Lead) | Surface Mount | 52-PLCC (19.13x19.13) | EBI/EMI, SIO, UART/USART | 32 | External | 70 °C | 0 °C | 5.5 V | 4.5 V | 1 K | 33 MHz | |
Analog Devices Inc./Maxim Integrated DS87C530-QCL | 16 KB | 8-Bit | OTP | 8051 | 52-LCC (J-Lead) | Surface Mount | 52-PLCC (19.13x19.13) | EBI/EMI, SIO, UART/USART | 32 | External | 70 °C | 0 °C | 5.5 V | 4.5 V | 1 K | 33 MHz | |
Analog Devices Inc./Maxim Integrated DS87C530-ENL | 16 KB | 8-Bit | OTP | 8051 | 52-TQFP | Surface Mount | 52-TQFP (10x10) | EBI/EMI, SIO, UART/USART | 32 | External | 85 °C | -40 °C | 5.5 V | 4.5 V | 1 K | 33 MHz | |
Analog Devices Inc./Maxim Integrated DS87C530-QNL+ | 16 KB | 8-Bit | OTP | 8051 | 52-LCC (J-Lead) | Surface Mount | 52-PLCC (19.13x19.13) | EBI/EMI, SIO, UART/USART | 32 | External | 85 °C | -40 °C | 5.5 V | 4.5 V | 1 K | 33 MHz | Power-Fail Reset, PWM, WDT |
Description
General part information
DS87C530 Series
8051 87C Microcontroller IC 8-Bit 33MHz 16KB (16K x 8) OTP 52-PLCC (19.13x19.13)
