10320-3540-000
Active3M

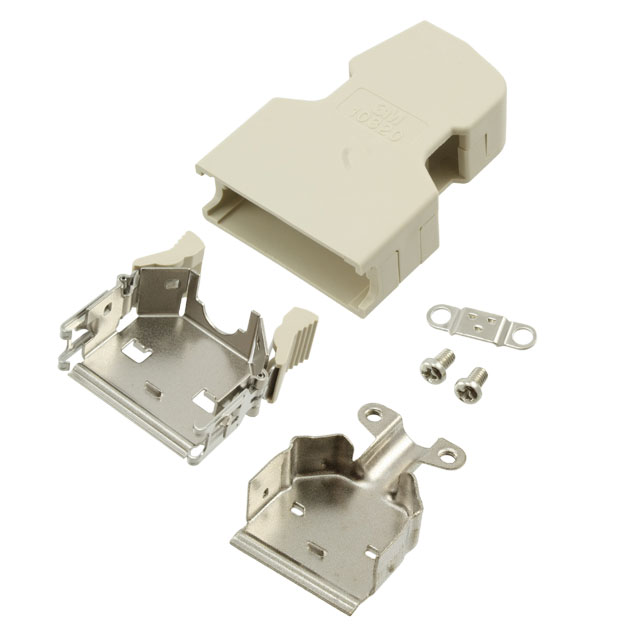

JE150187373 10320-3540-000=20/MDR/SHELL/60DEGREE/PLASTIC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10320-3540-000
Active3M
JE150187373 10320-3540-000=20/MDR/SHELL/60DEGREE/PLASTIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10320-3540-000 | 10320 Series |
|---|---|---|
| - | - | |
| Accessory Type | Two Piece Backshell | Two Piece Backshell, Two Piece Backshell and Cover |
| Cable Exit | 60 ° | 60 - 180 ° |
| Cable Type | - | Round |
| Color | - | Silver, Beige, Black |
| Features | Latch Lock | Latch Lock, Mating Screws M2.6 |
| Hardware | - | Assembly Hardware, Strain Relief |
| Material | - | Aluminum, Zinc Alloy, Metal, Plastic, Polybutylene Terephthalate (PBT), Glass Filled, Polyester, Glass Filled |
| Material | - | Plastic, Steel |
| Material | - | Metal |
| Number of Positions | 20 | 20 |
| Plating | - | Nickel |
| Primary Material | - | Metal, Plastic |
| Shielding | - | Shielded, Unshielded |
10320 Series
CONN BACKSHELL 20POS 180DEG SHLD
| Part | Cable Type | Primary Material | Material | Color | Plating | Features | Shielding | Number of Positions | Accessory Type | Cable Exit | Material [custom] | Material [custom] | Hardware |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Round | Metal | Aluminum | Silver | Nickel | Latch Lock | Shielded | 20 | Two Piece Backshell | 180 ° | ||||
Latch Lock | 20 | Two Piece Backshell | 60 ° | ||||||||||
Round | Metal | Beige | Latch Lock | Shielded | 20 | Two Piece Backshell and Cover | 180 ° | Plastic, Steel | Metal | ||||
Round | Metal | Aluminum | Silver | Nickel | Latch Lock | Shielded | 20 | Two Piece Backshell | 180 ° | ||||
Round | Metal | Zinc Alloy | Silver | Nickel | Latch Lock | Shielded | 20 | Two Piece Backshell | 180 ° | ||||
Round | Metal | Metal, Zinc Alloy | Silver | Nickel | Latch Lock | Shielded | 20 | Two Piece Backshell | 180 ° | ||||
Round | Plastic | Plastic | Black | 20 | Two Piece Backshell | 180 ° | Assembly Hardware | ||||||
Round | Plastic | Polybutylene Terephthalate (PBT), Glass Filled | Black | Latch Lock | Unshielded | 20 | Two Piece Backshell | 180 ° | Assembly Hardware, Strain Relief | ||||
Round | Plastic | Polyester, Glass Filled | Black | Mating Screws M2.6 | Unshielded | 20 | Two Piece Backshell | 180 ° | Assembly Hardware, Strain Relief |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
10320 Series
20 Position Two Piece Backshell Connector 60°
