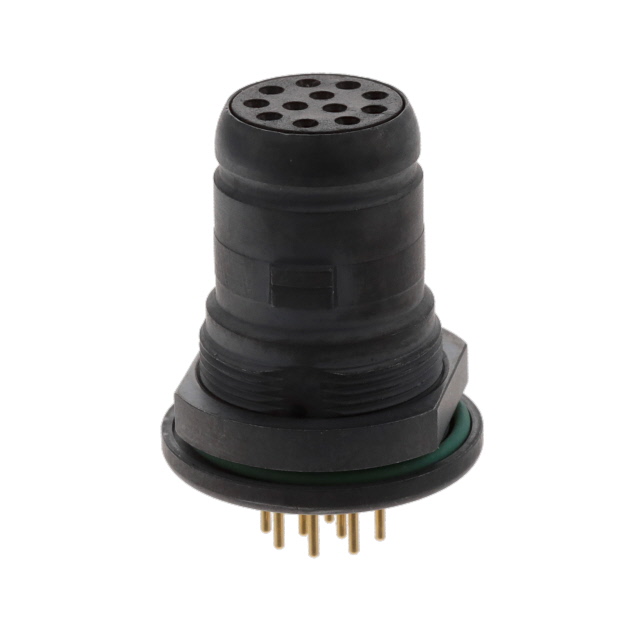

Specification	SCE2-B-76A07-12SN-001

Applications	Communication Systems, Audio, Military
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Copper Alloy
Current Rating Options	3A, 7.5A, 1.5A
Fastening Type	Push-Pull
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount, Through Hole
Number of Positions	12
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Primary Material	Metal
Shell Finish	Black
Shell Material	Brass
Shell Size - Insert (Maximum)	12
Shell Size - Insert (Minimum)	7
Shielding	Unshielded
Termination	Solder
Voltage Rating	400 V

SCE2-B Series

Part	Shielding	Primary Material	Color	Ingress Protection IP Rating	Ingress Protection Description	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Shell Material	Voltage Rating	Mounting Feature	Shell Finish	Number of Positions	Orientation	Contact Material	Contact Finish Thickness - Mating	Fastening Type	Current Rating Options	Connector Type	Mounting Type	Applications	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Features	Backshell Material	Plating	Shell Size - Insert
McGill Microwave Systems SCE2-B-76A07-14SN-002	Unshielded	Metal	Black	IP68	Dust Tight Waterproof	7	14	Brass	400 V	Bulkhead Front Side Nut	Black	14	N (Normal)	Copper Alloy	39.4 µin	Push-Pull	1.5A 3A 7.5A	Female Sockets Plug	Panel Mount	Audio Communication Systems Military	Solder Cup	125 °C	-55 °C	Gold
McGill Microwave Systems SCE2-B-76A09-26SN-001	Unshielded	Metal	Black	IP68	Dust Tight Waterproof	9	26	Brass	400 V	Bulkhead Front Side Nut	Black	26	N (Normal)	Copper Alloy	39.4 µin	Push-Pull	1.5A 3A 7.5A	Female Sockets Plug	Panel Mount Through Hole	Audio Communication Systems Military	Solder	125 °C	-55 °C	Gold
McGill Microwave Systems SCE2-B-L1K06-07PN	Unshielded	Metal	Black	IP68	Dust Tight Waterproof	6	7	Brass	400 V		Black	7	N (Normal)	Copper Alloy	39.4 µin	Push-Pull	1.5A 3A 7.5A	Male Pins Receptacle	Free Hanging (In-Line)	Audio Communication Systems Military	Solder Cup	125 °C	-55 °C	Gold	Backshell Coupling Nut	Brass	Black Silver
McGill Microwave Systems SCE2-B-L1K10-37PN	Unshielded	Metal	Black	IP68	Dust Tight Waterproof	10	37	Brass	400 V		Black	37 pos	N (Normal)	Copper Alloy	39.4 µin	Push-Pull	1.5A 3A 7.5A	Male Pins Receptacle	Free Hanging (In-Line)	Audio Communication Systems Military	Solder Cup	125 °C	-55 °C	Gold	Backshell Coupling Nut	Brass	Black Silver
McGill Microwave Systems SCE2-B-01K06-07PN	Unshielded	Metal	Black	IP68	Dust Tight Waterproof	6	7	Brass	400 V		Black	7	N (Normal)	Copper Alloy	39.4 µin	Push-Pull	1.5A 3A 7.5A	Male Pins Receptacle	Free Hanging (In-Line)	Audio Communication Systems Military	Solder Cup	125 °C	-55 °C	Gold	Backshell	Brass	Black Silver
McGill Microwave Systems SCE2-B-76A10-37SN-001	Unshielded	Metal	Black	IP68	Dust Tight Waterproof	10	37	Brass	400 V	Bulkhead Front Side Nut	Black	37 pos	N (Normal)	Copper Alloy	39.4 µin	Push-Pull	1.5A 3A 7.5A	Female Sockets Plug	Panel Mount Through Hole	Audio Communication Systems Military	Solder	125 °C	-55 °C	Gold
McGill Microwave Systems SCE2-B-06K07-14SN	Unshielded	Metal	Black	IP68	Dust Tight Waterproof	7	14	Brass	400 V		Black	14	N (Normal)	Copper Alloy	39.4 µin	Push-Pull	1.5A 3A 7.5A	Female Sockets Plug	Free Hanging (In-Line)	Audio Communication Systems Military	Solder Cup	125 °C	-55 °C	Gold	Backshell	Brass	Black Silver
McGill Microwave Systems SCE2-B-76A07-10ASN-002	Unshielded	Metal	Black	IP68	Dust Tight Waterproof			Brass	400 V	Bulkhead Front Side Nut	Black	10	N (Normal)	Copper Alloy	39.4 µin	Push-Pull	1.5A 3A 7.5A	Female Sockets Plug	Panel Mount	Audio Communication Systems Military	Solder Cup	125 °C	-55 °C	Gold				7-A10
McGill Microwave Systems SCE2-B-76A08-19SN-002	Unshielded	Metal	Black	IP68	Dust Tight Waterproof	8	19	Brass	400 V	Bulkhead Front Side Nut	Black	19	N (Normal)	Copper Alloy	39.4 µin	Push-Pull	1.5A 3A 7.5A	Female Sockets Plug	Panel Mount	Audio Communication Systems Military	Solder Cup	125 °C	-55 °C	Gold
McGill Microwave Systems SCE2-B-06K06-07SN	Unshielded	Metal	Black	IP68	Dust Tight Waterproof	6	7	Brass	400 V		Black	7	N (Normal)	Copper Alloy	39.4 µin	Push-Pull	1.5A 3A 7.5A	Female Sockets Plug	Free Hanging (In-Line)	Audio Communication Systems Military	Solder Cup	125 °C	-55 °C	Gold	Backshell	Brass	Black Silver
