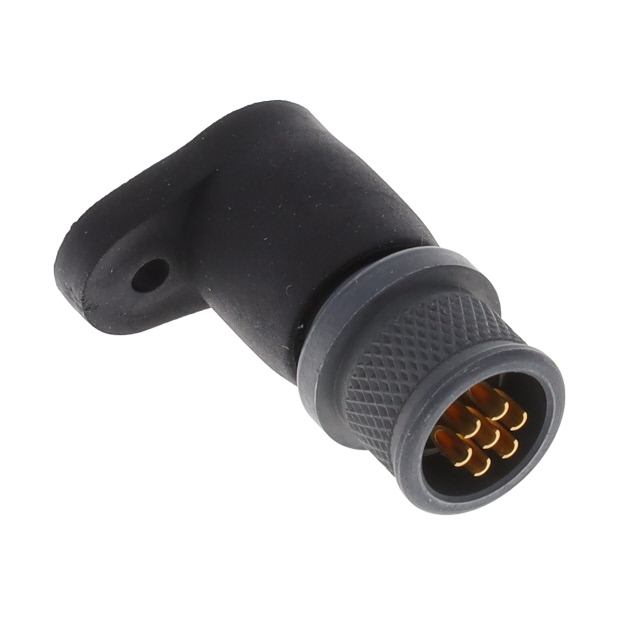

Specification	SCE2-B-06K06-07SN

Applications	Communication Systems, Audio, Military
Backshell Material	Brass
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Copper Alloy
Current Rating Options	3A, 7.5A, 1.5A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Plating	Black Silver
Primary Material	Metal
Shell Finish	Black
Shell Material	Brass
Shell Size - Insert (Maximum)	7
Shell Size - Insert (Minimum)	6
Shielding	Unshielded
Termination	Solder Cup
Voltage Rating	400 V

SCE2-B Series

Part	Shielding	Primary Material	Color	Ingress Protection IP Rating	Ingress Protection Description	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Shell Material	Voltage Rating	Mounting Feature	Shell Finish	Number of Positions	Orientation	Contact Material	Contact Finish Thickness - Mating	Fastening Type	Current Rating Options	Connector Type	Mounting Type	Applications	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Features	Backshell Material	Plating	Shell Size - Insert
McGill Microwave Systems SCE2-B-76A07-14SN-002	Unshielded	Metal	Black	IP68	Dust Tight Waterproof	7	14	Brass	400 V	Bulkhead Front Side Nut	Black	14	N (Normal)	Copper Alloy	39.4 µin	Push-Pull	1.5A 3A 7.5A	Female Sockets Plug	Panel Mount	Audio Communication Systems Military	Solder Cup	125 °C	-55 °C	Gold

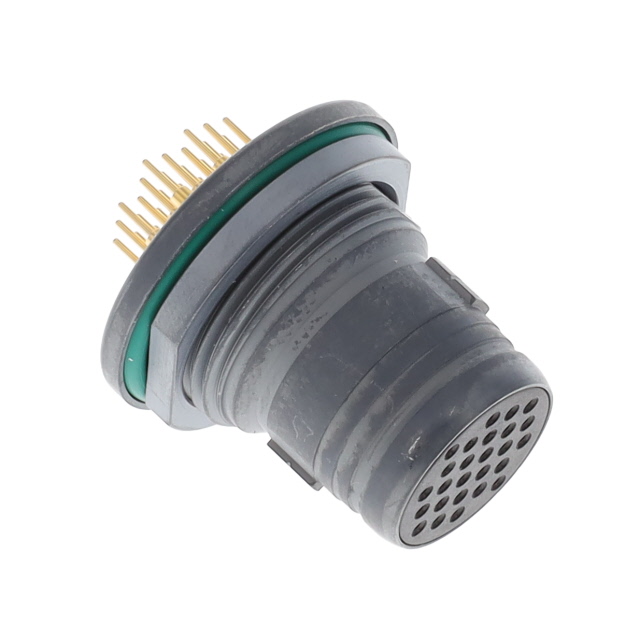

McGill Microwave Systems SCE2-B-76A09-26SN-001	Unshielded	Metal	Black	IP68	Dust Tight Waterproof	9	26	Brass	400 V	Bulkhead Front Side Nut	Black	26	N (Normal)	Copper Alloy	39.4 µin	Push-Pull	1.5A 3A 7.5A	Female Sockets Plug	Panel Mount Through Hole	Audio Communication Systems Military	Solder	125 °C	-55 °C	Gold

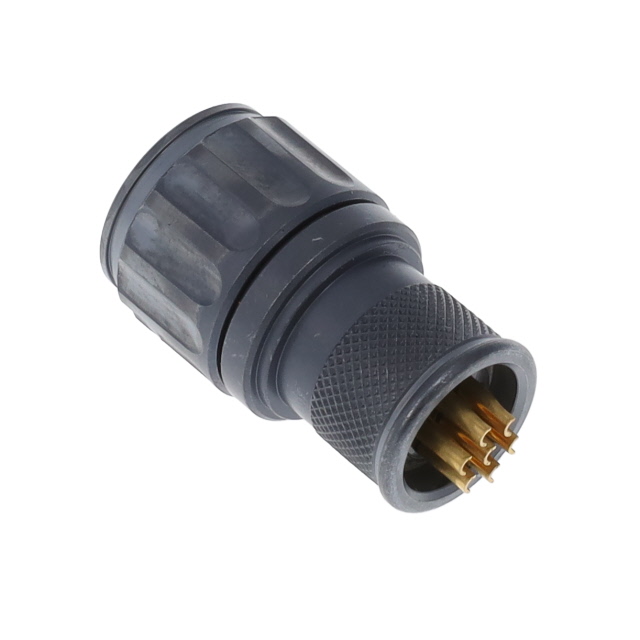

McGill Microwave Systems SCE2-B-L1K06-07PN	Unshielded	Metal	Black	IP68	Dust Tight Waterproof	6	7	Brass	400 V		Black	7	N (Normal)	Copper Alloy	39.4 µin	Push-Pull	1.5A 3A 7.5A	Male Pins Receptacle	Free Hanging (In-Line)	Audio Communication Systems Military	Solder Cup	125 °C	-55 °C	Gold	Backshell Coupling Nut	Brass	Black Silver

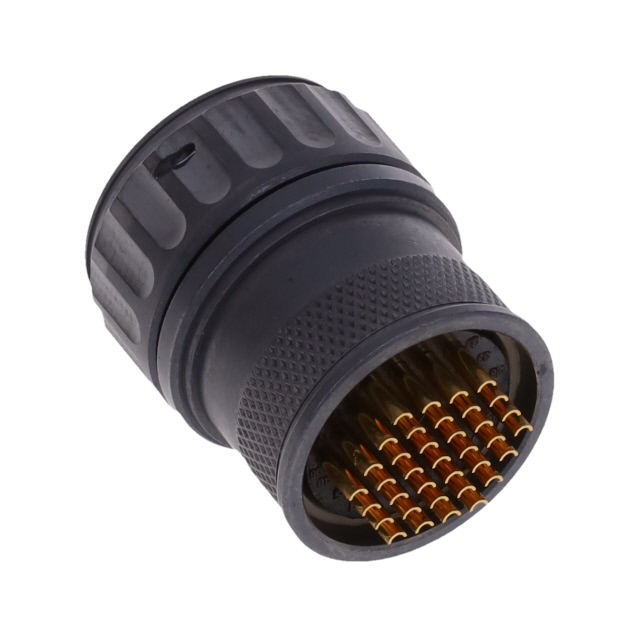

McGill Microwave Systems SCE2-B-L1K10-37PN	Unshielded	Metal	Black	IP68	Dust Tight Waterproof	10	37	Brass	400 V		Black	37 pos	N (Normal)	Copper Alloy	39.4 µin	Push-Pull	1.5A 3A 7.5A	Male Pins Receptacle	Free Hanging (In-Line)	Audio Communication Systems Military	Solder Cup	125 °C	-55 °C	Gold	Backshell Coupling Nut	Brass	Black Silver
McGill Microwave Systems SCE2-B-01K06-07PN	Unshielded	Metal	Black	IP68	Dust Tight Waterproof	6	7	Brass	400 V		Black	7	N (Normal)	Copper Alloy	39.4 µin	Push-Pull	1.5A 3A 7.5A	Male Pins Receptacle	Free Hanging (In-Line)	Audio Communication Systems Military	Solder Cup	125 °C	-55 °C	Gold	Backshell	Brass	Black Silver
McGill Microwave Systems SCE2-B-76A10-37SN-001	Unshielded	Metal	Black	IP68	Dust Tight Waterproof	10	37	Brass	400 V	Bulkhead Front Side Nut	Black	37 pos	N (Normal)	Copper Alloy	39.4 µin	Push-Pull	1.5A 3A 7.5A	Female Sockets Plug	Panel Mount Through Hole	Audio Communication Systems Military	Solder	125 °C	-55 °C	Gold

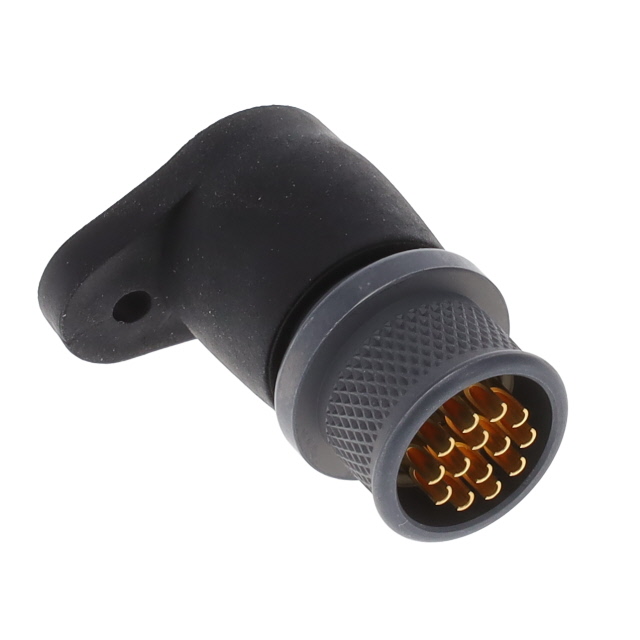

McGill Microwave Systems SCE2-B-06K07-14SN	Unshielded	Metal	Black	IP68	Dust Tight Waterproof	7	14	Brass	400 V		Black	14	N (Normal)	Copper Alloy	39.4 µin	Push-Pull	1.5A 3A 7.5A	Female Sockets Plug	Free Hanging (In-Line)	Audio Communication Systems Military	Solder Cup	125 °C	-55 °C	Gold	Backshell	Brass	Black Silver

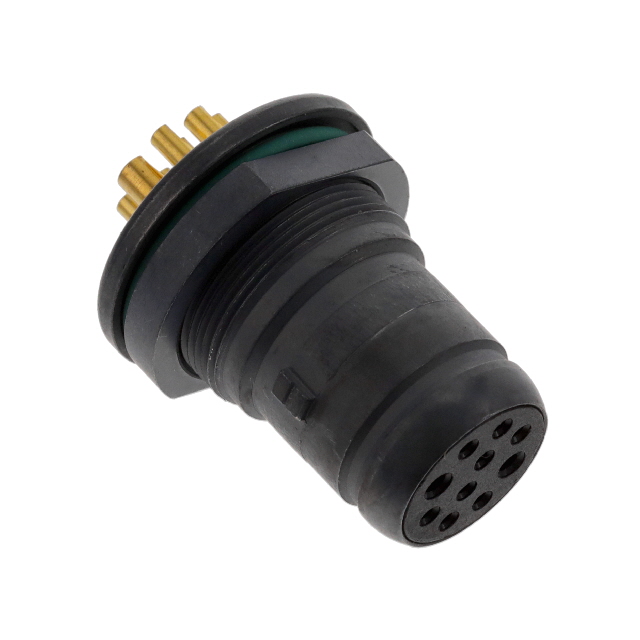

McGill Microwave Systems SCE2-B-76A07-10ASN-002	Unshielded	Metal	Black	IP68	Dust Tight Waterproof			Brass	400 V	Bulkhead Front Side Nut	Black	10	N (Normal)	Copper Alloy	39.4 µin	Push-Pull	1.5A 3A 7.5A	Female Sockets Plug	Panel Mount	Audio Communication Systems Military	Solder Cup	125 °C	-55 °C	Gold				7-A10
McGill Microwave Systems SCE2-B-76A08-19SN-002	Unshielded	Metal	Black	IP68	Dust Tight Waterproof	8	19	Brass	400 V	Bulkhead Front Side Nut	Black	19	N (Normal)	Copper Alloy	39.4 µin	Push-Pull	1.5A 3A 7.5A	Female Sockets Plug	Panel Mount	Audio Communication Systems Military	Solder Cup	125 °C	-55 °C	Gold
McGill Microwave Systems SCE2-B-06K06-07SN	Unshielded	Metal	Black	IP68	Dust Tight Waterproof	6	7	Brass	400 V		Black	7	N (Normal)	Copper Alloy	39.4 µin	Push-Pull	1.5A 3A 7.5A	Female Sockets Plug	Free Hanging (In-Line)	Audio Communication Systems Military	Solder Cup	125 °C	-55 °C	Gold	Backshell	Brass	Black Silver
