HGP.00.250.CTLP

Active

LEMO

CONN NIMCAMAC RCPT STR 50 OHM

Search across all available documentation for this part.

Active

LEMO

CONN NIMCAMAC RCPT STR 50 OHM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HGP.00.250.CTLP	HGP.00.250 Series

Body Finish	Chrome	Nickel, Chrome
Body Material	Brass	Brass
Center Contact Material	Bronze	Bronze
Center Contact Plating	Gold	Gold
Connector Style	NIM-CAMAC CD/N 549	NIM-CAMAC CD/N 549
Connector Type	Receptacle, Female Socket	Receptacle, Female Socket
Contact Termination	Solder Cup	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Features	-	Vacuumtight
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms

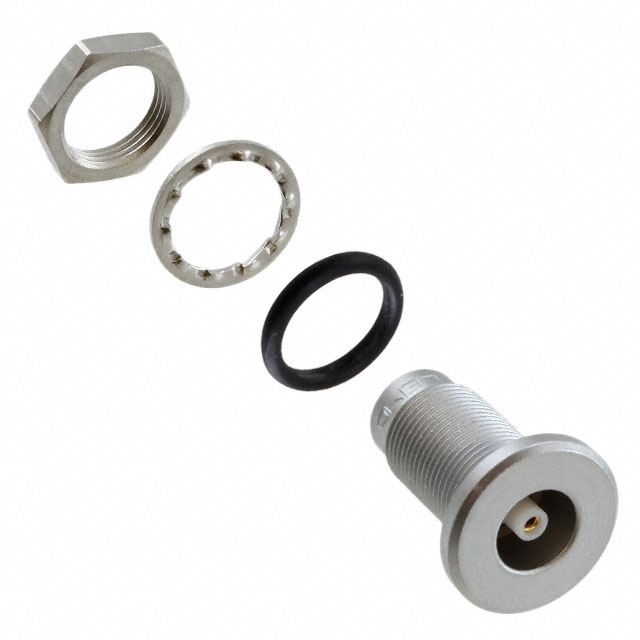

Includes	1 Nut, 1 Connector, 1 Lockwasher	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Mating Cycles	5000	5000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Ports	1	1
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Shield Termination	Solder	Solder
Voltage Rating	700 VDC	700 VDC

CONN NIMCAMAC RCPT STR 50 OHM

Part	Body Material	Includes	Connector Type	Impedance	Shield Termination	Number of Ports	Connector Style	Housing Color	Fastening Type	Mounting Feature	Mating Cycles	Voltage Rating	Center Contact Plating	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Dielectric Material	Ingress Protection	Features	Contact Termination
LEMO HGP.00.250.NTLPV	Brass	1 Connector, 1 Lockwasher, 1 Nut	Female Socket, Receptacle	50 Ohms	Solder	1	NIM-CAMAC CD/N 549	Silver	Push-Pull	Bulkhead - Rear Side Nut	5000	700 VDC	Gold	Bronze	100 °C	-20 C	Nickel	Polytetrafluoroethylene (PTFE)	IP68 - Dust Tight, Waterproof	Vacuumtight	Solder Cup
LEMO HGP.00.250.CTLPV	Brass	1 Connector, 1 Lockwasher, 1 Nut	Female Socket, Receptacle	50 Ohms	Solder	1	NIM-CAMAC CD/N 549	Silver	Push-Pull	Bulkhead - Rear Side Nut	5000	700 VDC	Gold	Bronze	100 °C	-20 C	Chrome	Polytetrafluoroethylene (PTFE)	IP68 - Dust Tight, Waterproof	Vacuumtight	Solder Cup
LEMO HGP.00.250.CTLP	Brass	1 Connector, 1 Lockwasher, 1 Nut	Female Socket, Receptacle	50 Ohms	Solder	1	NIM-CAMAC CD/N 549	Silver	Push-Pull	Bulkhead - Rear Side Nut	5000	700 VDC	Gold	Bronze	100 °C	-20 C	Chrome	Polytetrafluoroethylene (PTFE)	IP68 - Dust Tight, Waterproof		Solder Cup

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup
