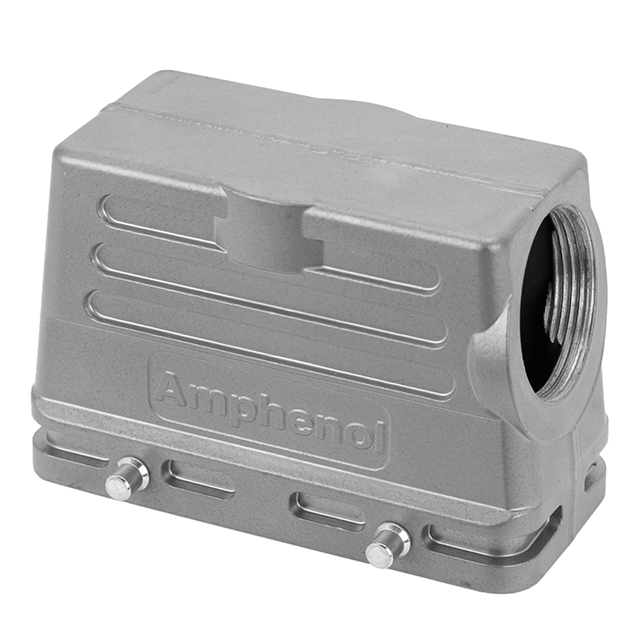

C146 21R016 500 8

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE16 M32

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C146 21R016 500 8

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE16 M32

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C146 21R016 500 8

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E16
Style	Side Entry
Thread Size	M32

C146 21R016 Series

Part	Housing Material	Features	Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Thread Size	Size	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Connector Type	Lock Location
Amphenol Tuchel Industrial C146 21R016 854 4	Aluminum Alloy Die Cast	Cable to Cable	Bottom Entry	79 mm	1.161 "	52.5 mm	2.067 "	29.5 mm	3.11 in	M20	A16	100 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood - Coupling	Locking Clip (1) on Hood Top
Amphenol Tuchel Industrial C146 21R016 502 1	Aluminum Alloy Die Cast		Side Entry	93.5 mm	1.693 in	62 mm	2.441 "	43 mm	3.681 "	M32	E16	100 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood	Locking Clip (2) on Hood
Amphenol Tuchel Industrial C146 21R016 500 8	Aluminum Die Cast		Side Entry							M32	E16	100 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood	Locking Clip (2) on Base Bottom
Amphenol Tuchel Industrial C146 21R016 852 8	Aluminum Die Cast	Cable to Cable	Bottom Entry	93.5 mm	1.693 in	76 mm	2.992 in	43 mm	3.681 "	M25	E16	100 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood - Coupling	Locking Clip (2) on Hood Top
Amphenol Tuchel Industrial C146 21R016 804 1	Aluminum Alloy Die Cast	Cable to Cable	Bottom Entry	93.5 mm	1.693 in	62 mm	2.441 "	43 mm	3.681 "	M32	E16	100 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood - Coupling	Locking Clip (1) on Hood Top
Amphenol Tuchel Industrial C146 21R016 550 1	Aluminum Alloy Die Cast		Side Entry	93.5 mm	1.693 in	62 mm	2.441 "	43 mm	3.681 "	M25	E16	100 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood	Locking Clip (2) on Base Bottom
Amphenol Tuchel Industrial C146 21R016 600 8F	Aluminum Die Cast		Top Entry	93.5 mm	1.693 in	76 mm	2.992 in	43 mm	3.681 "	M32	E16	100 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood	Locking Clip (2) on Base Bottom
Amphenol Tuchel Industrial C146 21R016 552 1	Aluminum Alloy Die Cast		Side Entry	93.5 mm	1.693 in	62 mm	2.441 "	43 mm	3.681 "	M25	E16	100 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood	Locking Clip (2) on Hood
Amphenol Tuchel Industrial C146 21R016 802 8	Aluminum Die Cast	Cable to Cable	Bottom Entry	93.5 mm	1.693 in	76 mm	2.992 in	43 mm	3.681 "	M32	E16	100 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood - Coupling	Locking Clip (2) on Hood Top

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 16.39

Description

General part information

C146 21R016 Series

Hood Connector Side Entry M32 E16 IP65 - Dust Tight, Water Resistant
