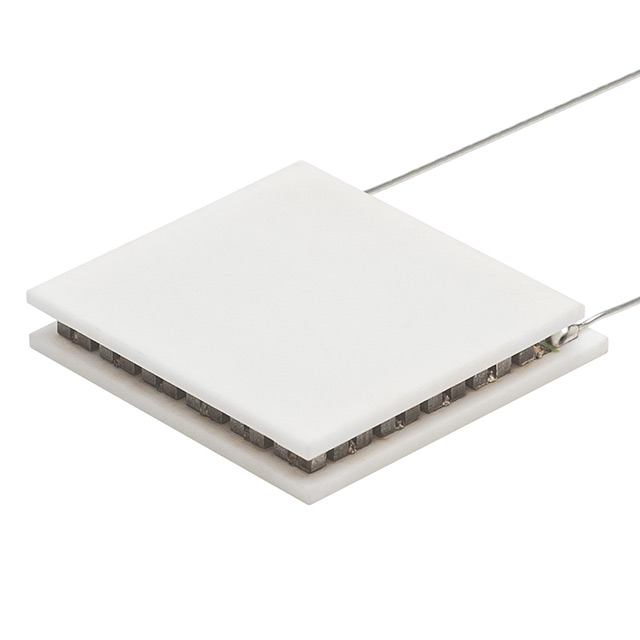

430040-514

Laird Thermal Systems, Inc.

HOT20,65,F2A,1312,11,RT,W2.25

Search across all available documentation for this part.

Laird Thermal Systems, Inc.

HOT20,65,F2A,1312,11,RT,W2.25

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	430040-514	430040 Series

Current - Max [Max]	2 A	2 A
Delta Tmax @ Th	67 °C	67 °C
Features	Sealed - Silicone RTV, Lead Wires	Sealed - Silicone RTV, Lead Wires, Lead Wires, Non-Sealed, Sealed - Epoxy
Height [z]	2.18 mm	2.18 mm
Number of Stages	1	1
Operating Temperature	175 °C	175 °C
Qmax @ Th	8.9 W	8.9 W
Resistance	3.39 Ohms	3.39 Ohms
Size / Dimension [x]	13.16 mm	13.16 mm
Size / Dimension [y]	13.16 mm	13.16 mm
Voltage - Max [Max]	7.4 V	7.4 V

HOT20,65,F2A,1312,11,RT,W2.25

Part	Current - Max [Max]	Features	Resistance	Size / Dimension [x]	Size / Dimension [y]	Delta Tmax @ Th	Qmax @ Th	Height [z]	Voltage - Max [Max]	Operating Temperature	Number of Stages
Laird Thermal Systems, Inc. 430040-514	2 A	Lead Wires, Sealed - Silicone RTV	3.39 Ohms	13.16 mm	13.16 mm	67 °C	8.9 W	2.18 mm	7.4 V	175 °C	1
Laird Thermal Systems, Inc. 430040-513	2 A	Lead Wires, Non-Sealed	3.39 Ohms	13.16 mm	13.16 mm	67 °C	8.9 W	2.18 mm	7.4 V	175 °C	1
Laird Thermal Systems, Inc. 430040-512	2 A	Lead Wires, Sealed - Epoxy	3.39 Ohms	13.16 mm	13.16 mm	67 °C	8.9 W	2.18 mm	7.4 V	175 °C	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 55.12
