9331 0601000

Active

Belden Inc.

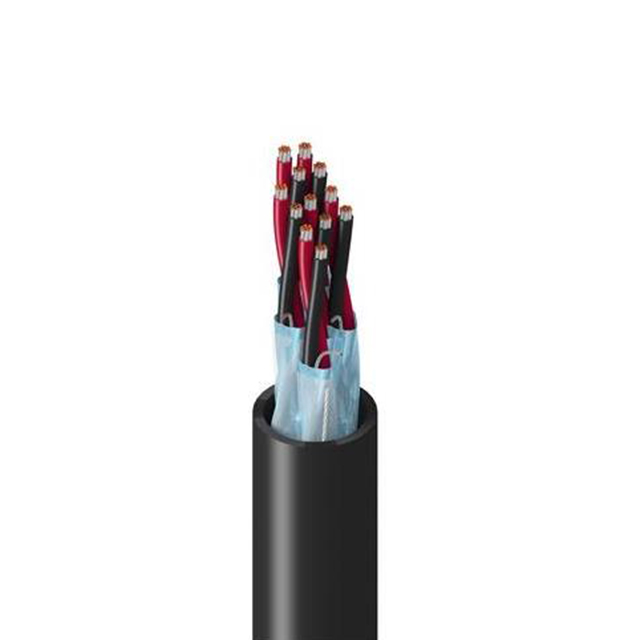

MULTI-PAIR 12COND 22AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 12COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9331 0601000

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Direct Burial, Ripcord, UV Resistant, Drain Wire
Jacket (Insulation) Diameter [diameter]	11.61 mm
Jacket (Insulation) Diameter [diameter]	0.457 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.346 mm
Jacket (Insulation) Thickness	0.053 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	22 AWG

Part	Shield Type	Ratings	Features	Wire Gauge	Cable Type	Shield Coverage	Conductor Material	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Jacket Color	Usage	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]
Belden Inc. 9331 0601000	Foil	UL Style 2464	Direct Burial Drain Wire Ripcord UV Resistant	22 AWG	Multi-Pair	100 %	Copper Tinned	Poly-Vinyl Chloride (PVC)	7	30 AWG	12	Aluminum	11.61 mm	0.457 in	Poly-Vinyl Chloride (PVC)	Chrome	Audio Control Instrumentation	1000 ft	304.8 m	1.346 mm	0.053 in	-30 ░C	105 ░C
Belden Inc. 9331 060500	Foil	UL Style 2464	Direct Burial Drain Wire Ripcord UV Resistant	22 AWG	Multi-Pair	100 %	Copper Tinned	Poly-Vinyl Chloride (PVC)	7	30 AWG	12	Aluminum	11.61 mm	0.457 in	Poly-Vinyl Chloride (PVC)	Chrome	Audio Control Instrumentation			1.346 mm	0.053 in	-30 ░C	105 ░C	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 6.85

General part information

12 (6 Pair) Conductor Multi-Pair Cable Chrome 22 AWG Foil 1000.0' (304.8m)
