R141327000

Active

Radiall USA, Inc.

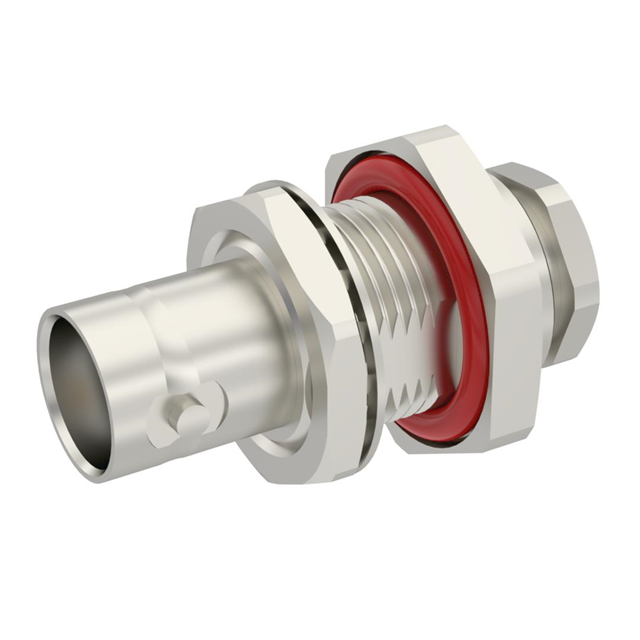

BNC / STRAIGHT BULKHEAD JACK PAN

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC / STRAIGHT BULKHEAD JACK PAN

Technical Specifications

Parameters and characteristics for this part

Specification	R141327000

Body Finish	Nickel
Body Material	Brass
Cable Group	400, 223, 141, RG-58, 142
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

Part	Housing Color	Shield Termination	Frequency - Max [Max]	Body Finish	Mating Cycles	Voltage Rating	Connector Type	Number of Ports	Impedance	Dielectric Material	Fastening Type	Center Contact Plating	Body Material	Mounting Feature	Center Contact Material	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Connector Style
Radiall USA, Inc. R141324000	Silver	Clamp	4 GHz	Nickel	500	500 V	Female Socket Jack	1	50 Ohms	Polytetrafluoroethylene (PTFE)	Bayonet Lock	Gold	Brass	Bulkhead - Front Side Nut	Beryllium Copper	179 316 RD-316 RG-174	-65 ░C	165 °C	Solder	BNC
Radiall USA, Inc. R141327000	Silver	Clamp	4 GHz	Nickel	500	500 V	Female Socket Jack	1	50 Ohms	Polytetrafluoroethylene (PTFE)	Bayonet Lock	Gold	Brass	Bulkhead - Front Side Nut	Beryllium Copper	141 142 223 400 RG-58	-65 ░C	165 °C	Solder	BNC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 16.54

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder

Technical documentation and resources

No documents available
