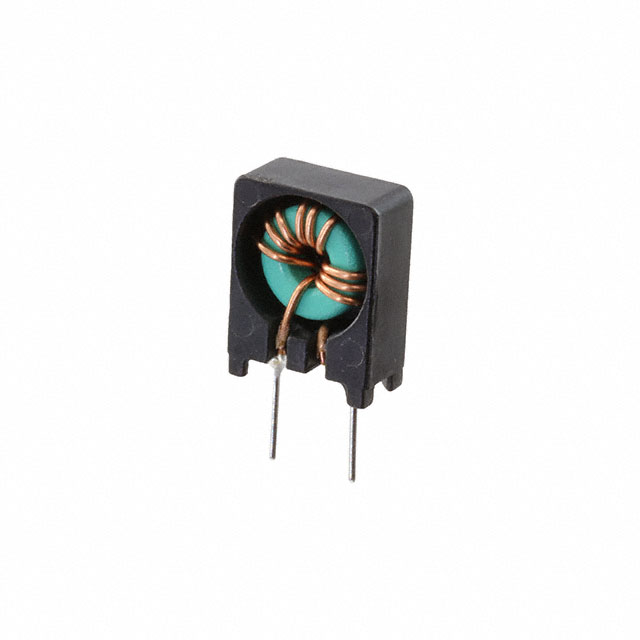

SNT-S20
ActiveKEMET
CMC 6UH 1.5A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
SNT-S20
ActiveKEMET
CMC 6UH 1.5A 2LN TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SNT-S20 |
|---|---|
| Current Rating (Amps) | 1.5 A |
| DC Resistance (DCR) | 35 mOhm |
| Height - Seated (Max) [Max] [z] | 12.7 mm |
| Height - Seated (Max) [Max] [z] | 0.5 in |
| Inductance | 6 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Nickel Zinc Ferrite (NiZn) |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | Vertical, 2 PC Pin |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.374 in |
| Size / Dimension [x] | 9.5 mm |
| Size / Dimension [y] | 0.197 " |
| Size / Dimension [y] | 5 mm |
| Type | Toroidal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.12 | |
| 10 | $ 1.74 | |||
| 25 | $ 1.61 | |||
| 50 | $ 1.52 | |||
| 100 | $ 1.43 | |||
| 250 | $ 1.33 | |||
| 500 | $ 1.25 | |||
| 1000 | $ 1.18 | |||
| 3000 | $ 1.08 | |||
Description
General part information
SNT-S Series
6 µH Unshielded Toroidal Inductor 1.5 A 35mOhm Vertical, 2 PC Pin
