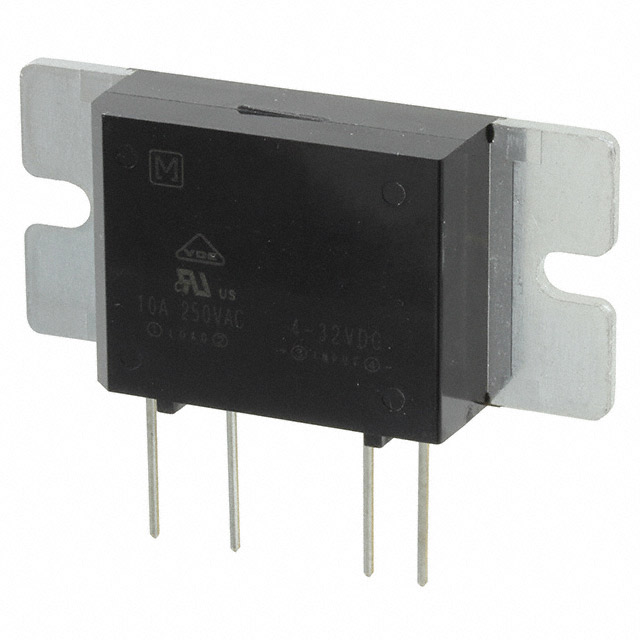

AQ10A2-ZT4/32VDC
ActivePanasonic Electric Works
SSR RELAY SPST-NO 10A 75-250V
Deep-Dive with AI
Search across all available documentation for this part.
AQ10A2-ZT4/32VDC
ActivePanasonic Electric Works
SSR RELAY SPST-NO 10A 75-250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AQ10A2-ZT4/32VDC |
|---|---|
| Approval Agency | cURus, VDE |
| Load Current | 10 A |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | AC, Zero Cross |
| Package / Case | 4-SIP |
| Termination Style | PC Pin |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 4 V |
| Voltage - Load [Max] | 250 V |
| Voltage - Load [Min] | 75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 16.11 | |
| 20 | $ 14.32 | |||
| 40 | $ 12.89 | |||
| 100 | $ 12.17 | |||
| 260 | $ 11.10 | |||
| 500 | $ 10.38 | |||
| 1000 | $ 9.85 | |||
Description
General part information
AQ10A2 Series
Solid State SPST-NO (1 Form A) 4-SIP
Documents
Technical documentation and resources
No documents available
