Technical Specifications
Parameters and characteristics for this part
| Specification | C192C104K1R5CA |
|---|---|
| Applications | General Purpose |
| Capacitance | 100000 pF |
| Lead Style | Straight |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Size / Dimension [diameter] | 3.56 mm |
| Size / Dimension [diameter] | 0.14 " |
| Size / Dimension [x] | 0.39 " |
| Size / Dimension [x] | 9.91 mm |
| Temperature Coefficient | X7R |
| Tolerance | 10 % |
| Voltage - Rated | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 200 | $ 1.92 | |
Description
General part information
C192C1 Series

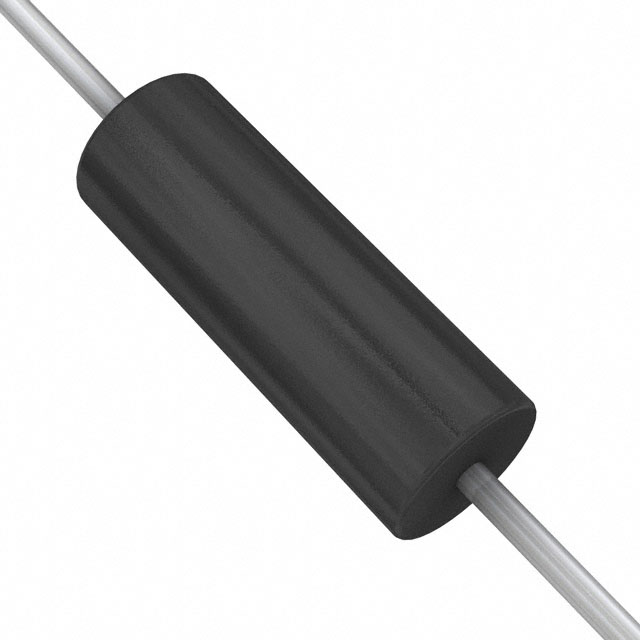

0.1 µF ±10% 100V Ceramic Capacitor X7R Axial
