SRN3015BTA-2R2M

Active

Bourns Inc.

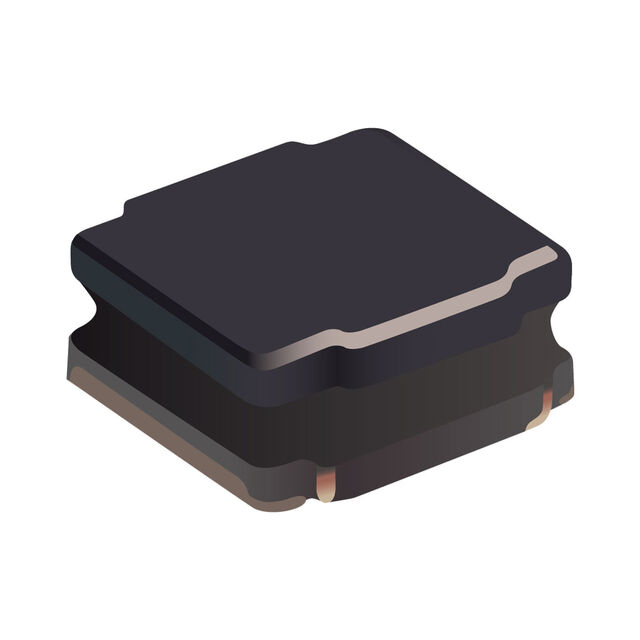

POWER INDUCTOR (SMD), 2.2 ΜH, 2.5 A, SEMISHIELDED, 2.1 A, SRN3015BTA SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

SRN3015BTA-2R2M

Active

Bourns Inc.

POWER INDUCTOR (SMD), 2.2 ΜH, 2.5 A, SEMISHIELDED, 2.1 A, SRN3015BTA SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRN3015BTA-2R2M

Current - Saturation (Isat)	2.1 A
Current Rating (Amps)	2.5 A
DC Resistance (DCR) [Max]	72 mOhm
Frequency - Self Resonant	96 MHz
Height - Seated (Max) [Max]	1.5 mm
Height - Seated (Max) [Max] [z]	0.059 "
Inductance	2.2 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1212
Package / Case	3030 Metric
Q @ Freq	1 MHz, 10
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	3015
Tolerance	20 %
Type	Wirewound, Drum Core

SRN3015BTA Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Inductance Frequency - Test	Supplier Device Package	DC Resistance (DCR) [Max]	Current Rating (Amps)	Frequency - Self Resonant	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Current - Saturation (Isat)	Material - Core	Tolerance	Q @ Freq	Shielding	Mounting Type	Ratings	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Inductance	Package / Case	Package / Case
Bourns Inc. SRN3015BTA-1R5M	-55 °C	125 °C	100 kHz	3015	43 mOhm	2.7 A	120 MHz	Drum Core Wirewound	1.5 mm	0.059 "	2.4 A	Ferrite	20 %	1 MHz 10	Shielded	Surface Mount	AEC-Q200	0.118 in	3 mm	3 mm	0.118 in	1.5 µH	1212	3030 Metric
Bourns Inc. SRN3015BTA-220M	-55 °C	125 °C	100 kHz	3015	540 mOhm	1 A	26 MHz	Drum Core Wirewound	1.5 mm	0.059 "	680 mA	Ferrite	20 %	1 MHz 15	Shielded	Surface Mount	AEC-Q200	0.118 in	3 mm	3 mm	0.118 in	22 µH	1212	3030 Metric
Bourns Inc. SRN3015BTA-R47M	-55 °C	125 °C	100 kHz	3015		3.7 A	246 MHz	Drum Core Wirewound	1.5 mm	0.059 "	4.3 A	Ferrite	20 %	1 MHz 10	Shielded	Surface Mount	AEC-Q200	0.118 in	3 mm	3 mm	0.118 in	470 nH	1212	3030 Metric
Bourns Inc. SRN3015BTA-150M	-55 °C	125 °C	100 kHz	3015	372 mOhm	1.2 A	30 MHz	Drum Core Wirewound	1.5 mm	0.059 "	850 mA	Ferrite	20 %	1 MHz 15	Shielded	Surface Mount	AEC-Q200	0.118 in	3 mm	3 mm	0.118 in	15 µH	1212	3030 Metric
Bourns Inc. SRN3015BTA-470M	-55 °C	125 °C	100 kHz	3015	1.44 Ohm	700 mA	18 MHz	Drum Core Wirewound	1.5 mm	0.059 "	460 mA	Ferrite	20 %	1 MHz 15	Shielded	Surface Mount	AEC-Q200	0.118 in	3 mm	3 mm	0.118 in	47 µH	1212	3030 Metric
Bourns Inc. SRN3015BTA-2R2M	-55 °C	125 °C	100 kHz	3015	72 mOhm	2.5 A	96 MHz	Drum Core Wirewound	1.5 mm	0.059 "	2.1 A	Ferrite	20 %	1 MHz 10	Shielded	Surface Mount	AEC-Q200	0.118 in	3 mm	3 mm	0.118 in	2.2 µH	1212	3030 Metric
Bourns Inc. SRN3015BTA-R68M	-55 °C	125 °C	100 kHz	3015	28 mOhm	3.5 A	190 MHz	Drum Core Wirewound	1.5 mm	0.059 "	3.8 A	Ferrite	20 %	1 MHz 10	Shielded	Surface Mount	AEC-Q200	0.118 in	3 mm	3 mm	0.118 in	0.68 µH	1212	3030 Metric
Bourns Inc. SRN3015BTA-100M	-55 °C	125 °C	100 kHz	3015	264 mOhm	1.5 A	45 MHz	Drum Core Wirewound	1.5 mm	0.059 "	1 A	Ferrite	20 %	1 MHz 10	Shielded	Surface Mount	AEC-Q200	0.118 in	3 mm	3 mm	0.118 in	10 µH	1212	3030 Metric
Bourns Inc. SRN3015BTA-6R8M	-55 °C	125 °C	100 kHz	3015	206 mOhm	1.7 A	50 MHz	Drum Core Wirewound	1.5 mm	0.059 "	1.3 A	Ferrite	20 %	1 MHz 10	Shielded	Surface Mount	AEC-Q200	0.118 in	3 mm	3 mm	0.118 in	6.8 µH	1212	3030 Metric
Bourns Inc. SRN3015BTA-330M	-55 °C	125 °C	100 kHz	3015	940 mOhm	0.85 A	21 MHz	Drum Core Wirewound	1.5 mm	0.059 "	570 mA	Ferrite	20 %	1 MHz 15	Shielded	Surface Mount	AEC-Q200	0.118 in	3 mm	3 mm	0.118 in	33 µH	1212	3030 Metric

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.43
		5	$ 0.42
		10	$ 0.41
		50	$ 0.34
		100	$ 0.28
		250	$ 0.26
		500	$ 0.22
		1000	$ 0.19
	Digi-Reel®	1	$ 0.43
		5	$ 0.42
		10	$ 0.41
		50	$ 0.34
		100	$ 0.28
		250	$ 0.26
		500	$ 0.22
		1000	$ 0.19
	Tape & Reel (TR)	2000	$ 0.18
		4000	$ 0.18
		6000	$ 0.17
		10000	$ 0.17
Newark	Each (Supplied on Full Reel)	1	$ 0.23
		5000	$ 0.22
		10000	$ 0.20
		20000	$ 0.19
		30000	$ 0.18
		50000	$ 0.17

Description

General part information

SRN3015BTA Series

2.2 µH Shielded Drum Core, Wirewound Inductor 2.5 A 72mOhm Max 1212 (3030 Metric)
