TPCC-R Series

Part	Package Length	Package Name	Package / Case	Package Features	Package Width	Breaking Capacity (AC)	Breaking Capacity (DC)	Mounting Type	Voltage Rating - AC	Voltage Rating - DC	Size / Dimension Diameter	Size / Dimension Length	Response Time	Current Rating	Fuse Type	Approval Agency

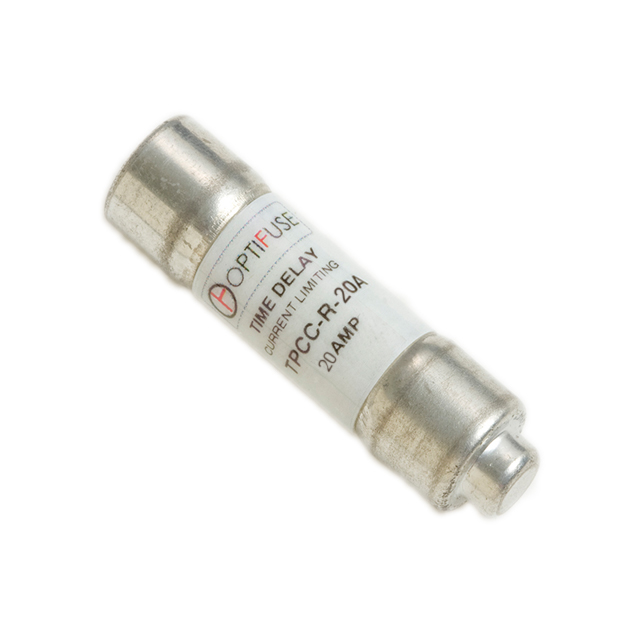

OptiFuse TPCC-R-20A	10 mm	5AG 5AG Midget	10mm x 38mm (Midget) 5AG	Midget	38 mm	200 kA	100 kA	Requires Holder	600 VAC	300 V	0.409 in	1.5 in	Slow Blow	20 A	Cartridge Ceramic
OptiFuse TPCC-R-1.125A	10 mm	5AG 5AG Midget	10mm x 38mm (Midget) 5AG	Midget	38 mm	200 kA	100 kA	Requires Holder	600 VAC	300 V	0.409 in	1.5 in	Slow Blow	1.125 A	Cartridge Ceramic	CSA UL
OptiFuse TPCC-R-2A	10 mm	5AG 5AG Midget	10mm x 38mm (Midget) 5AG	Midget	38 mm	200 kA	100 kA	Requires Holder	600 VAC	300 V	0.409 in	1.5 in	Slow Blow	2 A	Cartridge Ceramic
OptiFuse TPCC-R-5A	10 mm	5AG 5AG Midget	10mm x 38mm (Midget) 5AG	Midget	38 mm	200 kA	100 kA	Requires Holder	600 VAC	300 V	0.409 in	1.5 in	Slow Blow	5 A	Cartridge Ceramic
OptiFuse TPCC-R-1A	10 mm	5AG 5AG Midget	10mm x 38mm (Midget) 5AG	Midget	38 mm	200 kA	100 kA	Requires Holder	600 VAC	300 V	0.409 in	1.5 in	Slow Blow	1 A	Cartridge Ceramic	CSA UL
