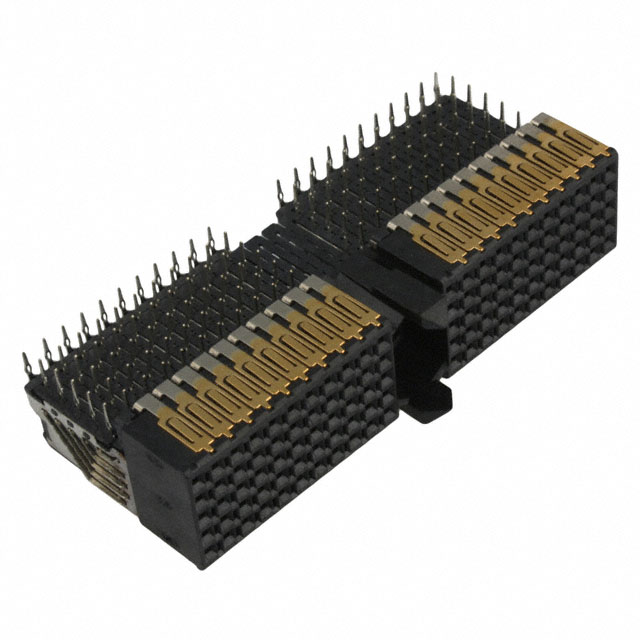

UHM-S125B3-5AP1-TG30

Active

CONN RECEPT 125POS 2MM PRESS-FIT

Search across all available documentation for this part.

Active

CONN RECEPT 125POS 2MM PRESS-FIT

Technical Specifications

Parameters and characteristics for this part

CONN RECEPT 125POS 2MM PRESS-FIT

Part	Connector Type	Termination	Mounting Type	Features	Number of Positions	Number of Positions Loaded	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Current Rating (Amps)	Connector Usage	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish
3M UHM-S125B3-5AP1-TG30	Receptacle, Female Sockets	Press-Fit	Through Hole, Right Angle	Upper and Lower Shield	125	All	B 25	0.76 Ám	30 Áin	0.079 in	2 mm	1 A	CompactPCI	5	-55 °C	125 °C	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

125 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole, Right Angle
