Specification	16-001790E

Accessory Type	Two Piece Backshell
Cable Exit	90°, 180°
Cable Type	Round
Compatible D-Sub Size	HD78pos, 50pos
Compatible Shell Size	D
Features	Snap Lock
Hardware	Assembly Hardware, Strain Relief
Material	Metallized, Plastic
Number of Positions	50
Primary Material	Plastic
Shielding	Shielded

16-0017 Series

Part	Number of Positions	Cable Exit	Primary Material	Cable Type	Accessory Type	Hardware	Material	Compatible D-Sub Size	Shielding	Features	Compatible Shell Size

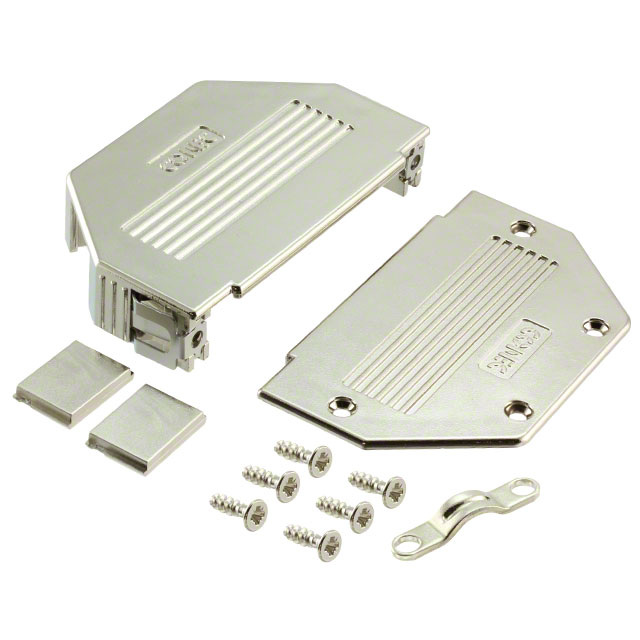

McGill Microwave Systems 16-001780E	37 pos	180° 90°	Plastic	Round	Two Piece Backshell	Assembly Hardware Strain Relief	Metallized Plastic	37pos HD62pos	Shielded	Snap Lock	C
McGill Microwave Systems 16-001790E	50	180° 90°	Plastic	Round	Two Piece Backshell	Assembly Hardware Strain Relief	Metallized Plastic	50pos HD78pos	Shielded	Snap Lock	D
McGill Microwave Systems 16-001770E	25	180° 90°	Plastic	Round	Two Piece Backshell	Assembly Hardware Strain Relief	Metallized Plastic	25pos HD44pos	Shielded	Snap Lock	B
