IXBL60N360

IXYS

IGBT 3600V 92A ISOPLUSI5

Search across all available documentation for this part.

IXYS

IGBT 3600V 92A ISOPLUSI5

Technical Specifications

Parameters and characteristics for this part

Specification	IXBL60N360

Current - Collector (Ic) (Max) [Max]	92 A
Current - Collector Pulsed (Icm)	720 A
Gate Charge	450 nC
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

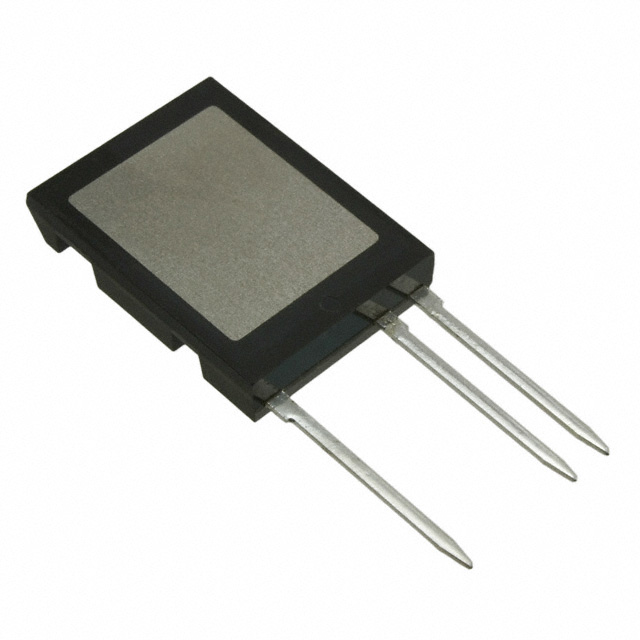

Package / Case	ISOPLUSi5-Pak™
Power - Max [Max]	417 W
Reverse Recovery Time (trr)	1.95 µs
Supplier Device Package	ISOPLUSi5-Pak™
Td (on/off) @ 25°C	50 ns, 340 ns
Test Condition	15 V, 60 A, 4.7 Ohm, 960 V
Vce(on) (Max) @ Vge, Ic	3.4 V
Voltage - Collector Emitter Breakdown (Max)	3600 V

Part	Vce(on) (Max) @ Vge, Ic	Package / Case	Gate Charge	Operating Temperature [Min]	Operating Temperature [Max]	Reverse Recovery Time (trr)	Current - Collector (Ic) (Max) [Max]	Td (on/off) @ 25°C	Test Condition	Supplier Device Package	Current - Collector Pulsed (Icm)	Power - Max [Max]	Mounting Type	Voltage - Collector Emitter Breakdown (Max)
IXYS IXBL60N360	3.4 V	ISOPLUSi5-Pak™	450 nC	-55 °C	150 °C	1.95 µs	92 A	50 ns 340 ns	4.7 Ohm 15 V 60 A 960 V	ISOPLUSi5-Pak™	720 A	417 W	Through Hole	3600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	25	$ 99.40

General part information

IGBT 3600 V 92 A 417 W Through Hole ISOPLUSi5-Pak™
