71016S15PHG
ActiveIDT, Integrated Device Technology Inc

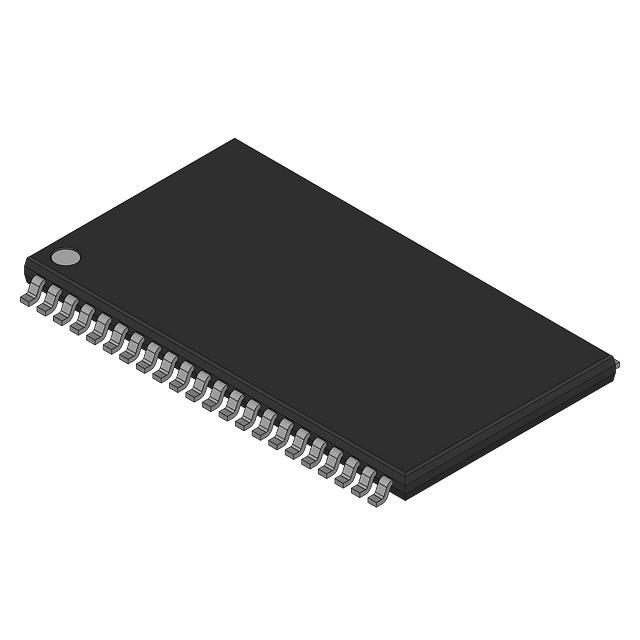

IC SRAM 1MBIT PARALLEL 44TSOP II
Deep-Dive with AI
Search across all available documentation for this part.
71016S15PHG
ActiveIDT, Integrated Device Technology Inc
IC SRAM 1MBIT PARALLEL 44TSOP II
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 71016S15PHG | 71016S Series |
|---|---|---|
| Access Time | 15 ns | 12 - 15 ns |
| Memory Format | SRAM | SRAM |
| Memory Interface | Parallel | Parallel |
| Memory Organization [custom] | 64 K | 64 K |
| Memory Organization [custom] | 16 bits | 16 bits |
| Memory Size | 1 Mbit | 1 Mbit |
| Memory Type | Volatile | Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Package / Case | 10.16 mm | 10.16 mm |
| Package / Case | 10.16 mm | 10.16 mm |
| Package / Case | 44-TSOP | 44-TSOP |
| Supplier Device Package | 44-TSOP II | 44-TSOP II |
| Technology | SRAM - Asynchronous | SRAM - Asynchronous |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 4.5 V | 4.5 V |
| Write Cycle Time - Word, Page | 15 ns | 12 - 15 ns |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 106 | $ 2.85 | |
| Tray | 1 | $ 4.27 | ||
| 10 | $ 3.87 | |||
| 25 | $ 3.79 | |||
| 40 | $ 3.77 | |||
| 135 | $ 3.38 | |||
| 270 | $ 3.37 | |||
| 540 | $ 3.24 | |||
| 945 | $ 3.08 | |||
71016S Series
IC SRAM 1MBIT PARALLEL 44TSOP II
| Part | Memory Format | Memory Interface | Memory Type | Package / Case | Package / Case | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Memory Organization [custom] | Memory Organization [custom] | Mounting Type | Access Time | Write Cycle Time - Word, Page | Voltage - Supply [Min] | Voltage - Supply [Max] | Memory Size | Supplier Device Package | Technology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDT, Integrated Device Technology Inc 71016S12PH | SRAM | Parallel | Volatile | 10.16 mm | 10.16 mm | 44-TSOP | 70 °C | 0 °C | 64 K | 16 bits | Surface Mount | 12 ns | 12 ns | 4.5 V | 5.5 V | 1 Mbit | 44-TSOP II | SRAM - Asynchronous |
IDT, Integrated Device Technology Inc 71016S15PHG | SRAM | Parallel | Volatile | 10.16 mm | 10.16 mm | 44-TSOP | 70 °C | 0 °C | 64 K | 16 bits | Surface Mount | 15 ns | 15 ns | 4.5 V | 5.5 V | 1 Mbit | 44-TSOP II | SRAM - Asynchronous |
Description
General part information
71016S Series
SRAM - Asynchronous Memory IC 1Mbit Parallel 15 ns 44-TSOP II
Documents
Technical documentation and resources
No documents available
