329-10-110-00-560000

Active

Mill-Max Manufacturing Corp.

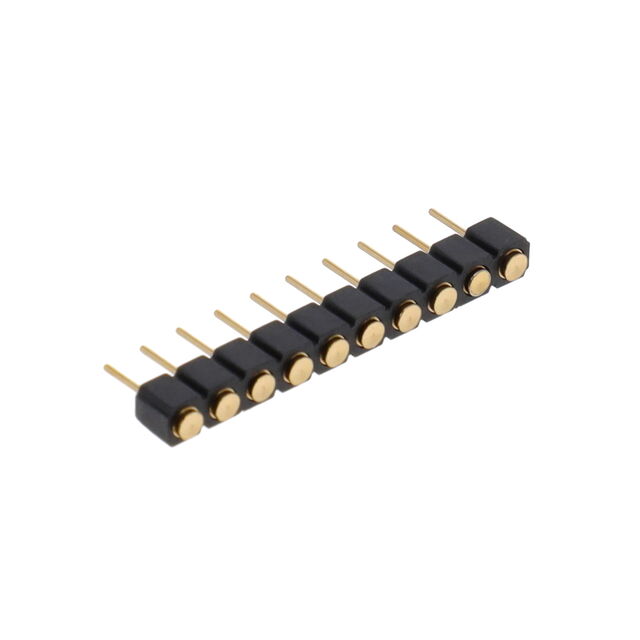

CONN HEADER SMD 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

329-10-110-00-560000

Active

Mill-Max Manufacturing Corp.

CONN HEADER SMD 10POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	329-10-110-00-560000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	0.121 in
Contact Length - Mating	3.07 mm
Contact Material	Brass Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Thermoplastic
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	7 mm
Overall Contact Length	0.276 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

329-10 Series

Part	Number of Rows	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Shape	Contact Material	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Insulation Material	Contact Finish - Mating	Shrouding	Insulation Color	Contact Type	Termination	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Length - Mating	Contact Length - Mating	Number of Positions
Mill-Max Manufacturing Corp. 329-10-154-00-560000	1	0.1 in	2.54 mm	All	Circular	Brass Alloy	Surface Mount	10 çin	0.25 çm	Header	Gold	7 mm	0.276 in	Thermoplastic	Gold	Unshrouded	Black	Male Pin	Solder	Push-Pull	10 çin	0.25 çm	54	0.121 in	3.07 mm
Mill-Max Manufacturing Corp. 329-10-158-00-560000	1	0.1 in	2.54 mm	All	Circular	Brass Alloy	Surface Mount	10 çin	0.25 çm	Header	Gold	7 mm	0.276 in	Thermoplastic	Gold	Unshrouded	Black	Male Pin	Solder	Push-Pull	10 çin	0.25 çm	58	0.121 in	3.07 mm
Mill-Max Manufacturing Corp. 329-10-116-00-560000	1	0.1 in	2.54 mm	All	Circular	Brass Alloy	Surface Mount	10 çin	0.25 çm	Header	Gold	7 mm	0.276 in	Thermoplastic	Gold	Unshrouded	Black	Male Pin	Solder	Push-Pull	10 çin	0.25 çm		0.121 in	3.07 mm	16
Mill-Max Manufacturing Corp. 329-10-159-00-560000	1	0.1 in	2.54 mm	All	Circular	Brass Alloy	Surface Mount	10 çin	0.25 çm	Header	Gold	7 mm	0.276 in	Thermoplastic	Gold	Unshrouded	Black	Male Pin	Solder	Push-Pull	10 çin	0.25 çm	59	0.121 in	3.07 mm
Mill-Max Manufacturing Corp. 329-10-119-00-560000	1	0.1 in	2.54 mm	All	Circular	Brass Alloy	Surface Mount	10 çin	0.25 çm	Header	Gold	7 mm	0.276 in	Thermoplastic	Gold	Unshrouded	Black	Male Pin	Solder	Push-Pull	10 çin	0.25 çm	19	0.121 in	3.07 mm
Mill-Max Manufacturing Corp. 329-10-115-00-560000	1	0.1 in	2.54 mm	All	Circular	Brass Alloy	Surface Mount	10 çin	0.25 çm	Header	Gold	7 mm	0.276 in	Thermoplastic	Gold	Unshrouded	Black	Male Pin	Solder	Push-Pull	10 çin	0.25 çm	15	0.121 in	3.07 mm
Mill-Max Manufacturing Corp. 329-10-110-00-560000	1	0.1 in	2.54 mm	All	Circular	Brass Alloy	Surface Mount	10 çin	0.25 çm	Header	Gold	7 mm	0.276 in	Thermoplastic	Gold	Unshrouded	Black	Male Pin	Solder	Push-Pull	10 çin	0.25 çm	10	0.121 in	3.07 mm
Mill-Max Manufacturing Corp. 329-10-118-00-560000	1	0.1 in	2.54 mm	All	Circular	Brass Alloy	Surface Mount	10 çin	0.25 çm	Header	Gold	7 mm	0.276 in	Thermoplastic	Gold	Unshrouded	Black	Male Pin	Solder	Push-Pull	10 çin	0.25 çm	18	0.121 in	3.07 mm
Mill-Max Manufacturing Corp. 329-10-120-00-560000	1	0.1 in	2.54 mm	All	Circular	Brass Alloy	Surface Mount	10 çin	0.25 çm	Header	Gold	7 mm	0.276 in	Thermoplastic	Gold	Unshrouded	Black	Male Pin	Solder	Push-Pull	10 çin	0.25 çm	20	0.121 in	3.07 mm
Mill-Max Manufacturing Corp. 329-10-141-00-560000	1	0.1 in	2.54 mm	All	Circular	Brass Alloy	Surface Mount	10 çin	0.25 çm	Header	Gold	7 mm	0.276 in	Thermoplastic	Gold	Unshrouded	Black	Male Pin	Solder	Push-Pull	10 çin	0.25 çm	41	0.121 in	3.07 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 16.56
		20	$ 14.35
		100	$ 11.83
		500	$ 10.80

Description

General part information

329-10 Series

Connector Header Surface Mount 10 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
