BMB2A0030BN7
ActiveTE Connectivity AMP Connectors

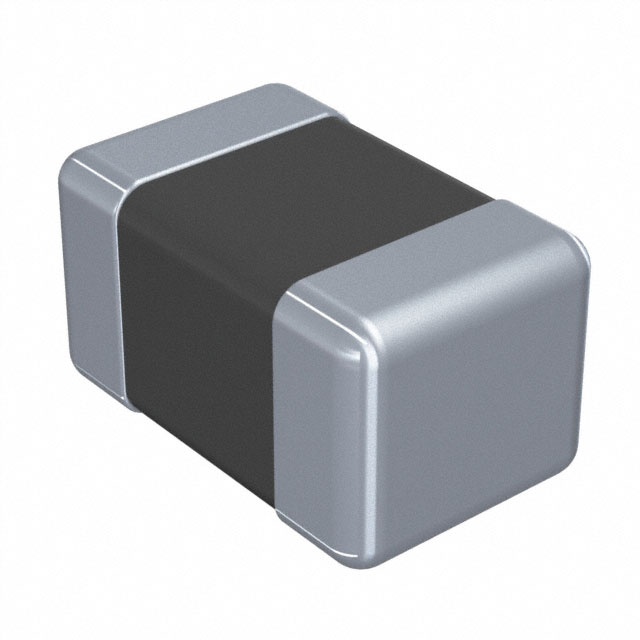

FERRITE BEAD 30 OHM 0805 1LN
Deep-Dive with AI
Search across all available documentation for this part.
BMB2A0030BN7
ActiveTE Connectivity AMP Connectors
FERRITE BEAD 30 OHM 0805 1LN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BMB2A0030BN7 |
|---|---|
| Current Rating (Max) [Max] | 300 mA |
| DC Resistance (DCR) (Max) [Max] | 200 mOhm |
| Height (Max) [Max] | 0.043 in |
| Height (Max) [Max] | 1.1 mm |
| Impedance @ Frequency | 30 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0805 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.047 in |
| Size / Dimension [y] | 1.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BMB2 Series
FERRITE BEAD 30 OHM 0805 1LN
| Part | Package / Case | Impedance @ Frequency | DC Resistance (DCR) (Max) [Max] | Height (Max) [Max] | Height (Max) [Max] | Number of Lines | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Current Rating (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors BMB2A0030BN7 | 0805 | 30 Ohms | 200 mOhm | 0.043 in | 1.1 mm | 1 | -55 °C | 125 °C | 2 mm | 0.047 in | 0.079 in | 1.2 mm | Surface Mount | 300 mA |
Description
General part information
BMB2 Series
30 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0805 (2012 Metric) 300mA 200mOhm
Documents
Technical documentation and resources
No documents available
