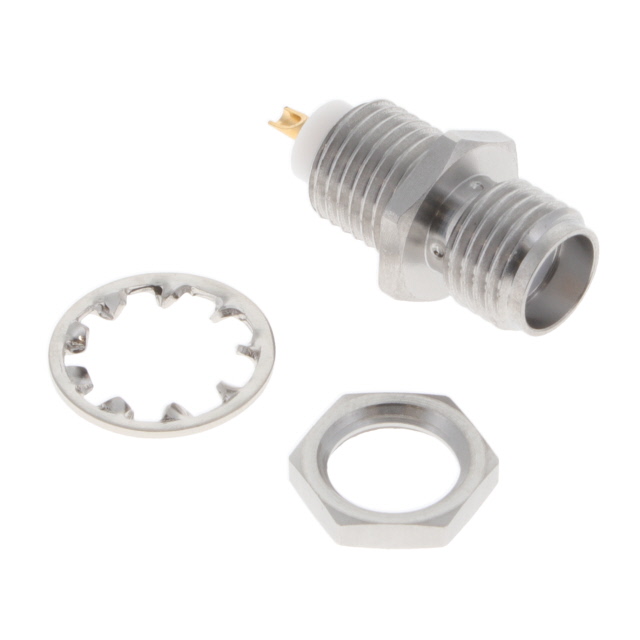

Specification	9422-9113-000

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Jack, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	18 GHz
Impedance	50 Ohm
Includes	Lockwasher, Nut, Connector
Includes Total Count	3 pcs
Mating Cycles	500 cycles
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder

9422-9113 Series

Part	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Dielectric Material	Body Material	Includes Total Count	Includes	Mounting Type	Connector Type	Shield Termination	Fastening Type	Contact Termination	Frequency - Max	Impedance	Center Contact Material	Number of Ports	Connector Style	Mounting Feature
Radiall USA, Inc. 9422-9113-000	500 cycles	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Stainless Steel	3 pcs	Connector Lockwasher Nut	Panel Mount	Female Socket Jack	Solder	Threaded	Solder Cup	18 GHz	50 Ohm	Beryllium Copper	1	SMA	Bulkhead Rear Side Nut
