SMH-112-02-L-S-TR

Active

Samtec Inc.

.100" HORIZONTAL SURFACE MOUNT S

Search across all available documentation for this part.

Active

Samtec Inc.

.100" HORIZONTAL SURFACE MOUNT S

Technical Specifications

Parameters and characteristics for this part

Specification	SMH-112-02-L-S-TR

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.095 in
Insulation Height [z]	2.41 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Shape	Insulation Color	Termination	Contact Finish - Post	Contact Finish - Mating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Fastening Type	Number of Rows	Contact Material	Number of Positions	Insulation Material
Samtec Inc. SMH-112-02-L-S-TR	Surface Mount Right Angle	-55 °C	125 °C	Receptacle	Forked	0.1 in	2.54 mm	UL94 V-0	Square	Black	Solder	Tin	Gold	All	10 çin	0.25 çm	0.095 in	2.41 mm	Push-Pull	1	Phosphor Bronze	12	Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	575	$ 2.32

General part information

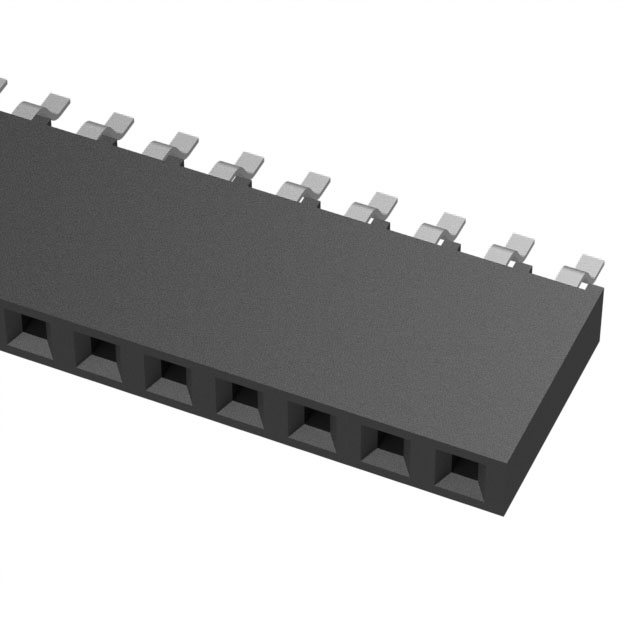

12 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold
