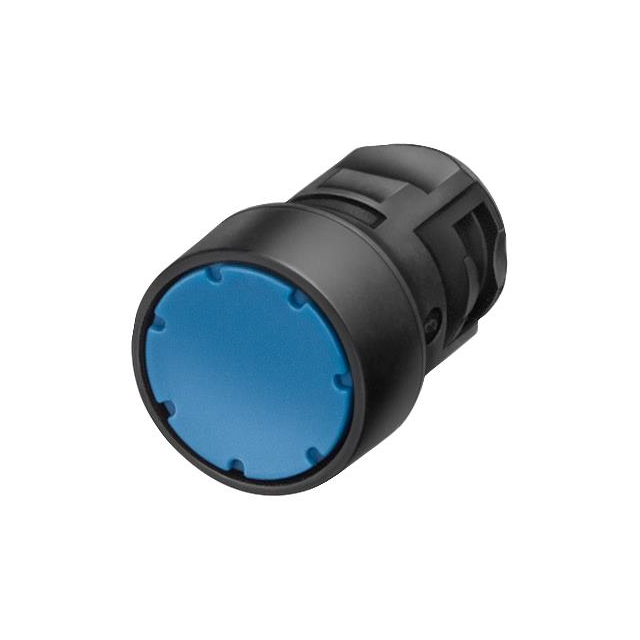

3SB20000AF01

Active

Siemens

CONFIG SW BODY PUSHBUT NON-ILLUM

Search across all available documentation for this part.

Active

Siemens

CONFIG SW BODY PUSHBUT NON-ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	3SB20000AF01

(Select First, Then Apply Filters) Compatible Series	Siemens
(Select First, Then Apply Filters) Compatible Series	16 mm
Actuator Type	Pushbutton, Round
Illumination	Non-Illuminated
Panel Cutout Dimensions [diameter]	16 mm
Requires	Contact Block(s)
Type	Momentary

Part	Type	Actuator Type	(Select First, Then Apply Filters) Compatible Series	(Select First, Then Apply Filters) Compatible Series	Requires	Panel Cutout Dimensions [diameter]	Illumination
Siemens 3SB20004QA01	Momentary	Keylock	Siemens	16 mm	Contact Block(s)	16 mm	Non-Illuminated
Siemens 3SB20000LC01	Momentary	Pushbutton Round	Siemens	16 mm	Contact Block(s)	16 mm	Non-Illuminated
Siemens 3SB20000AH01	Momentary	Pushbutton Round	Siemens	16 mm	Contact Block(s)	16 mm	Non-Illuminated
Siemens 3SB20002DE01	Maintained	Selector	Siemens	16 mm	Contact Block(s)	16 mm	Non-Illuminated
Siemens 3SB20002AB01	Maintained	Selector	Siemens	16 mm	Contact Block(s)	16 mm	Non-Illuminated
Siemens 3SB20000LF01	Momentary	Pushbutton Round	Siemens	16 mm	Contact Block(s)	16 mm	Non-Illuminated
Siemens 3SB20002HG01	Maintained	Selector	Siemens	16 mm	Contact Block(s)	16 mm	Non-Illuminated
Siemens 3SB20002DB01	Maintained	Selector	Siemens	16 mm	Contact Block(s)	16 mm	Non-Illuminated
Siemens 3SB20000AF01	Momentary	Pushbutton Round	Siemens	16 mm	Contact Block(s)	16 mm	Non-Illuminated
Siemens 3SB20004MA01	Momentary	Keylock	Siemens	16 mm	Contact Block(s)	16 mm	Non-Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 29.65

General part information

Configurable Switch Body Pushbutton, Round Non-Illuminated
