SSM-122-S-DV-BE-A-K

Active

Samtec Inc.

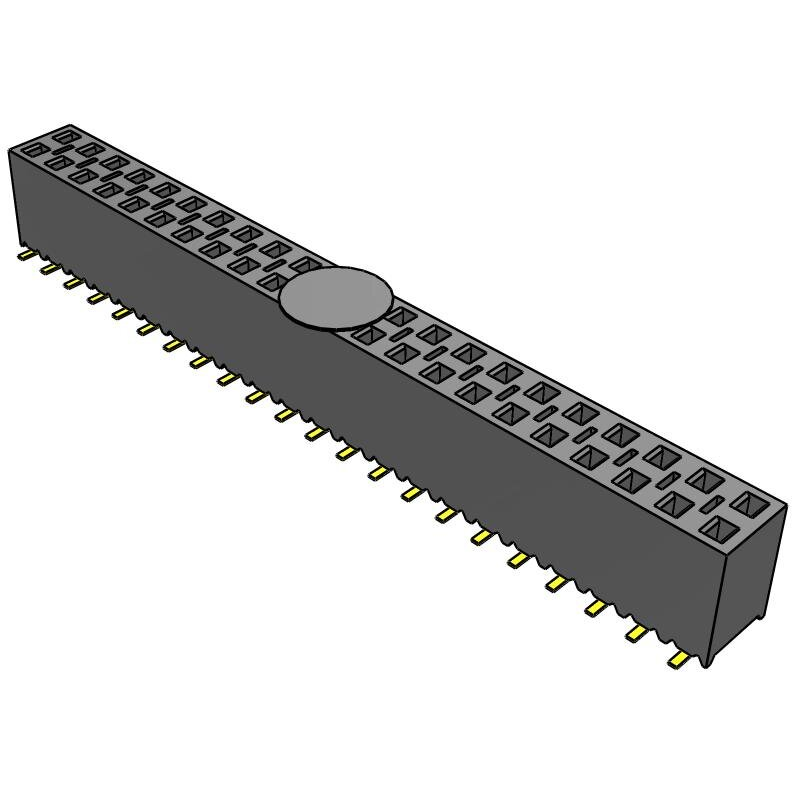

CONN SOCKET STRIP SKT 44 POS 2.54MM SOLDER ST BOTTOM ENTRY SMD TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SSM-122-S-DV-BE-A-K

Active

Samtec Inc.

CONN SOCKET STRIP SKT 44 POS 2.54MM SOLDER ST BOTTOM ENTRY SMD TUBE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSM-122-S-DV-BE-A-K

Connector Type	Receptacle, Bottom Entry
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	5.2 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	7.37 mm
Insulation Height	0.29 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	44
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	572 VDC, 405 VAC

SSM-122 Series

Part	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Current Rating (Amps)	Style	Features	Number of Rows	Fastening Type	Mounting Type	Contact Material	Insulation Material	Contact Finish - Post	Number of Positions	Number of Positions Loaded	Termination	Insulation Height	Insulation Height	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Samtec Inc. SSM-122-F-DV-P-TR	Female Socket	3 µin	0.076 µm	Gold	Pass Through Receptacle	0.1 in	2.54 mm	Black	-55 °C	125 °C	405 VAC 572 VDC	5.2 A	Board to Board Cable	Pick and Place	2	Push-Pull	Surface Mount	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Tin	44	All	Solder	7.37 mm	0.29 in	Square	2.54 mm	0.1 in
Samtec Inc. SSM-122-S-DV-BE-LC-P	Female Socket	30 Áin	0.76 Ám	Gold	Receptacle Bottom Entry	0.1 in	2.54 mm	Black	-55 °C	125 °C	405 VAC 572 VDC	5.2 A	Board to Board Cable	Board Lock Pick and Place	2	Push-Pull	Surface Mount	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Tin	44	All	Solder	7.37 mm	0.29 in	Square	2.54 mm	0.1 in
Samtec Inc. SSM-122-S-SV-P-TR	Female Socket	30 Áin	0.76 Ám	Gold	Pass Through Receptacle	0.1 in	2.54 mm	Black	-55 °C	125 °C	405 VAC 572 VDC	5.2 A	Board to Board Cable	Pick and Place	1	Push-Pull	Surface Mount	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Tin	22 positions	All	Solder	7.37 mm	0.29 in	Square
Samtec Inc. SSM-122-L-DV-A-P-TR	Female Socket	10 çin	0.25 çm	Gold	Pass Through Receptacle	0.1 in	2.54 mm	Black	-55 °C	125 °C	405 VAC 572 VDC	5.2 A	Board to Board Cable	Board Guide Pick and Place	2	Push-Pull	Surface Mount	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Tin	44	All	Solder	7.37 mm	0.29 in	Square	2.54 mm	0.1 in
Samtec Inc. SSM-122-S-DV-BE-A-K	Female Socket	30 Áin	0.76 Ám	Gold	Receptacle Bottom Entry	0.1 in	2.54 mm	Black	-55 °C	125 °C	405 VAC 572 VDC	5.2 A	Board to Board Cable	Board Guide Pick and Place	2	Push-Pull	Surface Mount	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Tin	44	All	Solder	7.37 mm	0.29 in	Square	2.54 mm	0.1 in
Samtec Inc. SSM-122-L-DV-K	Female Socket	10 çin	0.25 çm	Gold	Pass Through Receptacle	0.1 in	2.54 mm	Black	-55 °C	125 °C	405 VAC 572 VDC	5.2 A	Board to Board Cable	Pick and Place	2	Push-Pull	Surface Mount	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Tin	44	All	Solder	7.37 mm	0.29 in	Square	2.54 mm	0.1 in
Samtec Inc. SSM-122-T-DV	Female Socket				Pass Through Receptacle	0.1 in	2.54 mm	Black	-55 °C	125 °C	405 VAC 572 VDC	5.2 A	Board to Board Cable		2	Push-Pull	Surface Mount	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Tin	44	All	Solder	7.37 mm	0.29 in	Square	2.54 mm	0.1 in
Samtec Inc. SSM-122-S-DH	Female Socket	30 Áin	0.76 Ám	Gold	Receptacle	0.1 in	2.54 mm	Black	-55 °C	125 °C	405 VAC 572 VDC	5.2 A	Board to Board Cable		2	Push-Pull	Surface Mount Right Angle	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Tin	44	All	Solder	5.72 mm	0.225 in	Square	2.54 mm	0.1 in
Samtec Inc. SSM-122-L-DH-LC	Female Socket	10 çin	0.25 çm	Gold	Receptacle	0.1 in	2.54 mm	Black	-55 °C	125 °C	405 VAC 572 VDC	5.2 A	Board to Board Cable		2	Push-Pull	Surface Mount Right Angle	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Tin	44	All	Solder	5.72 mm	0.225 in	Square	2.54 mm	0.1 in
Samtec Inc. SSM-122-S-DV-A	Female Socket	30 Áin	0.76 Ám	Gold	Pass Through Receptacle	0.1 in	2.54 mm	Black	-55 °C	125 °C	405 VAC 572 VDC	5.2 A	Board to Board Cable	Board Guide	2	Push-Pull	Surface Mount	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Tin	44	All	Solder	7.37 mm	0.29 in	Square	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 9.69
		10	$ 9.06
		25	$ 8.38
		50	$ 7.71
		100	$ 6.84

Description

General part information

SSM-122 Series

44 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Surface Mount Gold
