337-019-500-158

Active

EDAC Inc.

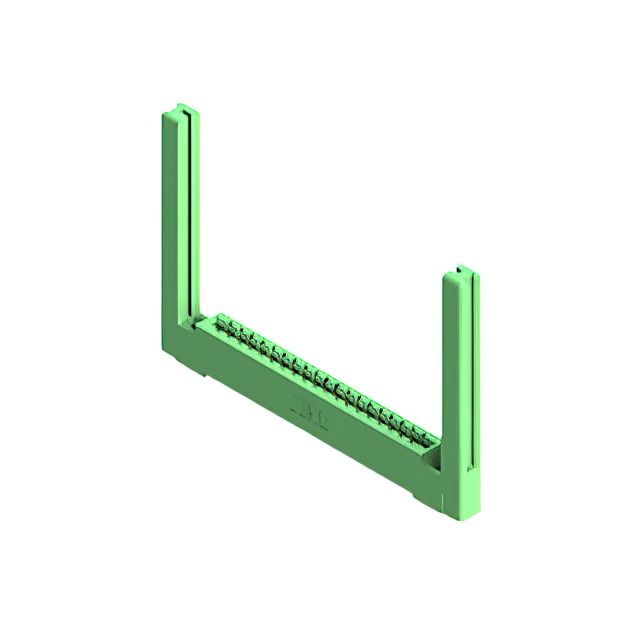

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 19 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN +1

337-019-500-158

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 19 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	337-019-500-158

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	19
Number of Positions/Bay/Row [custom]	19
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder Eyelet(s)
Termination Rows	1

337-019 Series

...

Part	Flange Feature	Flange Feature	Flange Feature	Material - Insulation	Color	Contact Material	Termination	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Gender	Pitch [x]	Pitch [x]	Contact Type	Card Type	Number of Positions	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Termination Rows	Read Out	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 337-019-559-612	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Polyester Thermoplastic	Green	Copper Alloy	Wire Wrap	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	19	Female	0.156 in	3.96 mm	Cantilever	Non Specified - Single Edge	19	Through Hole Right Angle	-40 °C	105 ░C	1	1	Single
EDAC Inc. 337-019-542-658	4-40 Threaded Insert Top Mount Opening			Polyester Thermoplastic	Green	Copper Alloy	Wire Wrap	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	19	Female	0.156 in	3.96 mm	Cantilever	Non Specified - Single Edge	19	Through Hole	-40 °C	105 ░C	1	1	Single	Card Guides
EDAC Inc. 337-019-540-604	Top Mount Opening Unthreaded			Polyester Thermoplastic	Green	Copper Alloy	Wire Wrap	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	19	Female	0.156 in	3.96 mm	Cantilever	Non Specified - Single Edge	19	Through Hole	-40 °C	105 ░C	1	1	Single		0.156 in	3.96 mm
EDAC Inc. 337-019-500-158	4-40 Flush Mount Threaded Insert Top Opening			Polyester Thermoplastic	Green	Copper Alloy	Solder Eyelet(s)	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	19	Female	0.156 in	3.96 mm	Cantilever	Non Specified - Single Edge	19	Through Hole	-40 °C	105 ░C	1	1	Single	Card Guides
EDAC Inc. 337-019-540-668	4-40 Threaded Insert Top Mount Opening			Polyester Thermoplastic	Green	Copper Alloy	Wire Wrap	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	19	Female	0.156 in	3.96 mm	Cantilever	Non Specified - Single Edge	19	Through Hole	-40 °C	105 ░C	1	1	Single	Card Guides
EDAC Inc. 337-019-540-612	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Polyester Thermoplastic	Green	Copper Alloy	Wire Wrap	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	19	Female	0.156 in	3.96 mm	Cantilever	Non Specified - Single Edge	19	Through Hole	-40 °C	105 ░C	1	1	Single
EDAC Inc. 337-019-540-103	Floating Bobbin Flush Mount			Polyester Thermoplastic	Green	Copper Alloy	Wire Wrap	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	19	Female	0.156 in	3.96 mm	Cantilever	Non Specified - Single Edge	19	Through Hole	-40 °C	105 ░C	1	1	Single		0.116 in	2.95 mm
EDAC Inc. 337-019-520-103	Floating Bobbin Flush Mount			Polyester Thermoplastic	Green	Copper Alloy	Solder	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	19	Female	0.156 in	3.96 mm	Cantilever	Non Specified - Single Edge	19	Through Hole	-40 °C	105 ░C	1	1	Single		0.116 in	2.95 mm
EDAC Inc. 337-019-500-668	4-40 Threaded Insert Top Mount Opening			Polyester Thermoplastic	Green	Copper Alloy	Solder Eyelet(s)	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	19	Female	0.156 in	3.96 mm	Cantilever	Non Specified - Single Edge	19	Through Hole	-40 °C	105 ░C	1	1	Single	Card Guides
EDAC Inc. 337-019-521-158	4-40 Flush Mount Threaded Insert Top Opening			Polyester Thermoplastic	Green	Copper Alloy	Solder	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	19	Female	0.156 in	3.96 mm	Cantilever	Non Specified - Single Edge	19	Through Hole	-40 °C	105 ░C	1	1	Single	Card Guides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 17.10
Newark	Each	1	$ 20.97
		100	$ 12.08
		250	$ 11.05
		500	$ 10.31
		1000	$ 8.78

Description

General part information

337-019 Series

19 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
