Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-ISB013V1 |
|---|---|
| Contents | Board(s) |
| Embedded | False |
| Function | Battery Monitor |
| Primary Attributes | Current, Voltage |
| Type | Power Management |
| Utilized IC / Part | STC3105 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
STEVAL-ISB013V1 Series

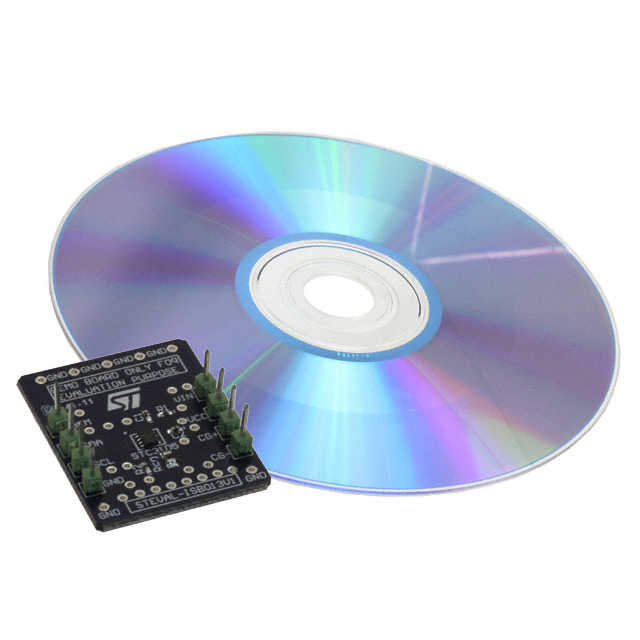

The STEVAL-ISB013V1 is a demonstration board based on the STC3105 battery monitor IC. The application monitors the voltage and current of a battery and includes a Coulomb counter to keep track of the charge/discharge status.
An alarm output signals a low state-of-charge (SOC) condition and/or low battery voltage. In addition, a relaxation register begins counting when the gas gauge is in a specified light-load condition, indicating when an OCV (open circuit voltage) measurement should be made for SOC correction.
