88859-8
ActiveTE Connectivity AMP Connectors

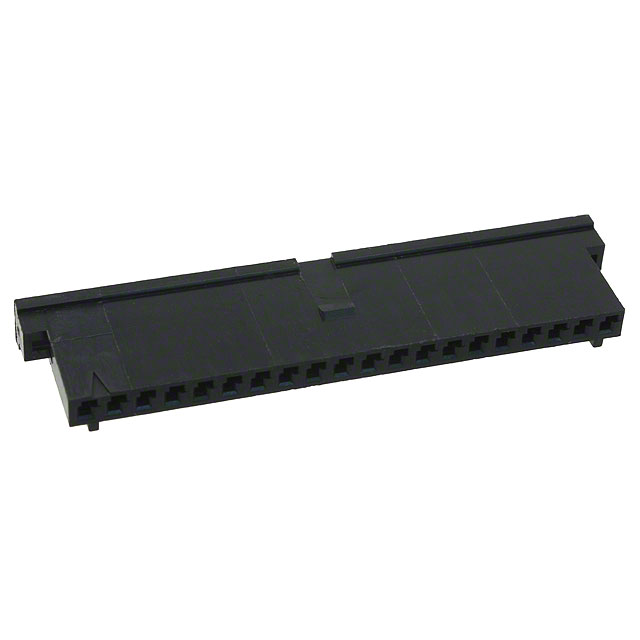

CONN FFC RCPT HSG 20POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
88859-8
ActiveTE Connectivity AMP Connectors
CONN FFC RCPT HSG 20POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 88859-8 | 88859 Series |
|---|---|---|
| Connector Type | Housing for Female Contacts | Housing for Female Contacts |
| Current Rating (Amps) | 1.5 A | 1.5 A |
| FFC, FCB Thickness [Max] | 0.13 mm | 0.13 mm |
| FFC, FCB Thickness [Min] | 0.05 mm | 0.05 mm |
| Flat Flex Type | FFC | FFC |
| Housing Color | Black | Black |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Locking Feature | Detent Lock | Detent Lock |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 20 | 6 - 20 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Voltage Rating | 300 VDC | 300 VDC |
88859 Series
CONN FFC RCPT HSG 15POS 2.54MM
| Part | Locking Feature | Housing Color | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Flat Flex Type | Number of Rows | Number of Positions | Note | Material Flammability Rating | Voltage Rating | FFC, FCB Thickness [Min] | FFC, FCB Thickness [Max] | Pitch [x] | Pitch [x] | Connector Type | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 88859-6 | Detent Lock | Black | 1.5 A | -65 ░C | 105 ░C | FFC | 1 | 15 | Contacts Not Included | UL94 V-0 | 300 VDC | 0.05 mm | 0.13 mm | 2.54 mm | 0.1 in | Housing for Female Contacts | Polybutylene Terephthalate (PBT), Glass Filled |
TE Connectivity AMP Connectors 88859-9 | Detent Lock | Black | 1.5 A | -65 ░C | 105 ░C | FFC | 1 | Contacts Not Included | UL94 V-0 | 300 VDC | 0.05 mm | 0.13 mm | 2.54 mm | 0.1 in | Housing for Female Contacts | Polybutylene Terephthalate (PBT), Glass Filled | |
TE Connectivity AMP Connectors 88859-8 | Detent Lock | Black | 1.5 A | -65 ░C | 105 ░C | FFC | 1 | 20 | Contacts Not Included | UL94 V-0 | 300 VDC | 0.05 mm | 0.13 mm | 2.54 mm | 0.1 in | Housing for Female Contacts | Polybutylene Terephthalate (PBT), Glass Filled |
TE Connectivity AMP Connectors 88859-2 | Detent Lock | Black | 1.5 A | -65 ░C | 105 ░C | FFC | 1 | 8 | Contacts Not Included | UL94 V-0 | 300 VDC | 0.05 mm | 0.13 mm | 2.54 mm | 0.1 in | Housing for Female Contacts | Polybutylene Terephthalate (PBT), Glass Filled |
TE Connectivity AMP Connectors 88859-5 | Detent Lock | Black | 1.5 A | -65 ░C | 105 ░C | FFC | 1 | 13 | Contacts Not Included | UL94 V-0 | 300 VDC | 0.05 mm | 0.13 mm | 2.54 mm | 0.1 in | Housing for Female Contacts | Polybutylene Terephthalate (PBT), Glass Filled |
TE Connectivity AMP Connectors 1-88859-1 | Detent Lock | Black | 1.5 A | -65 ░C | 105 ░C | FFC | 1 | Contacts Not Included | UL94 V-0 | 300 VDC | 0.05 mm | 0.13 mm | 2.54 mm | 0.1 in | Housing for Female Contacts | Polybutylene Terephthalate (PBT), Glass Filled | |
TE Connectivity AMP Connectors 1-88859-2 | Detent Lock | Black | 1.5 A | -65 ░C | 105 ░C | FFC | 1 | 7 | Contacts Not Included | UL94 V-0 | 300 VDC | 0.05 mm | 0.13 mm | 2.54 mm | 0.1 in | Housing for Female Contacts | Polybutylene Terephthalate (PBT), Glass Filled |
TE Connectivity AMP Connectors 88859-3 | Detent Lock | Black | 1.5 A | -65 ░C | 105 ░C | FFC | 1 | 10 | Contacts Not Included | UL94 V-0 | 300 VDC | 0.05 mm | 0.13 mm | 2.54 mm | 0.1 in | Housing for Female Contacts | Polybutylene Terephthalate (PBT), Glass Filled |
TE Connectivity AMP Connectors 88859-1 | Detent Lock | Black | 1.5 A | -65 ░C | 105 ░C | FFC | 1 | 6 | Contacts Not Included | UL94 V-0 | 300 VDC | 0.05 mm | 0.13 mm | 2.54 mm | 0.1 in | Housing for Female Contacts | Polybutylene Terephthalate (PBT), Glass Filled |
TE Connectivity AMP Connectors 88859-7 | Detent Lock | Black | 1.5 A | -65 ░C | 105 ░C | FFC | 1 | 14 | Contacts Not Included | UL94 V-0 | 300 VDC | 0.05 mm | 0.13 mm | 2.54 mm | 0.1 in | Housing for Female Contacts | Polybutylene Terephthalate (PBT), Glass Filled |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 24000 | $ 2.14 | |
Description
General part information
88859 Series
Housing FFC Housing for Female Contacts Connector Detent Lock 20Pos 0.100" (2.54mm)
