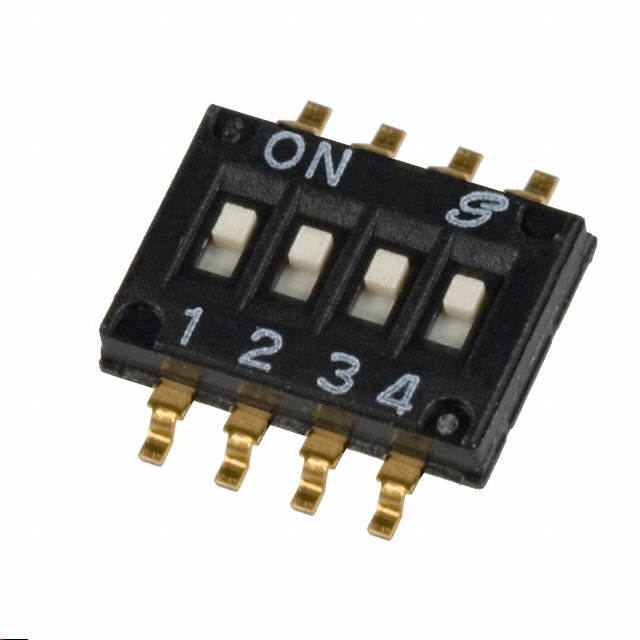

Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 97R04ST |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Slide (Standard) |
| Body Material | Nylon, Polyamide (PA) |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 25 mA |
| Features | Tape Seal |
| Height Above Board [z] | 0.061 " |
| Height Above Board [z] | 1.55 mm |
| Length [x] | 6.31 mm |
| Length [x] | 0.248 in |
| Mechanical Life | 1000 Cycles |
| Mounting Type | Surface Mount |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 24 VDC |
| Washable | True |
DIP SWITCHES / SIP SWITCHES HALF PITCH DIP 4 POS TOP TAPE SEAL
| Part | Termination Style | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Washable | Current Rating (Amps) | Number of Positions | Circuit | Body Material | Actuator Type | Length [x] | Length [x] | Actuator Level | Voltage Rating | Contact Finish | Height Above Board [z] | Height Above Board [z] | Mounting Type | Features | Mechanical Life | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. 97R04ST | Gull Wing | 0.05 in | 1.27 mm | 85 °C | -40 °C | 25 mA | 4 | SPST | Nylon, Polyamide (PA) | Slide (Standard) | 6.31 mm | 0.248 in | Flush, Recessed | 24 VDC | Gold | 0.061 " | 1.55 mm | Surface Mount | Tape Seal | 1000 Cycles | Copper Alloy |
