CMT-ST-108-0625

Active

Parker Chomerics

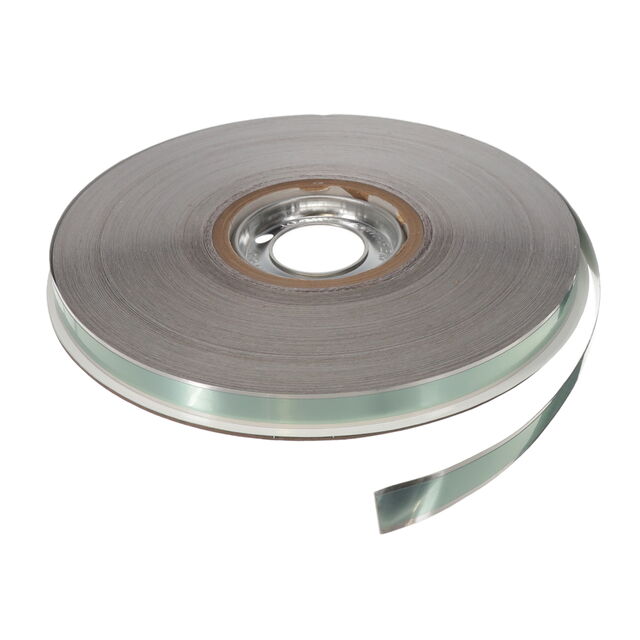

RF EMI SHIELD TAPE 98.75MX0.063"

Search across all available documentation for this part.

Active

Parker Chomerics

RF EMI SHIELD TAPE 98.75MX0.063"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Shielding Tape CHO-MASK® II Tin-Plated Copper Foil Acrylic, Conductive 0.063" (1.59mm) X 323.983' (98.75m) X 0.005" (0.12mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	CMT-ST-108-0625	CMT-ST-108 Series

Adhesive	Acrylic, Conductive	Acrylic, Conductive
Length [x]	323.983 '	323.983 '
Length [x]	98.75 m	98.75 m
Material	Tin-Plated Copper Foil	Tin-Plated Copper Foil
Operating Temperature [Max]	82 °C	82 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shape	Circular	Circular
Shelf Life	24 Months	24 Months
Shelf Life Start	Date of Shipment	Date of Shipment
Thickness - Overall	-	0.003 "
Thickness - Overall	-	0.08 mm
Thickness - Overall [z]	0.005 in	0.005 in
Thickness - Overall [z]	0.12 mm	0.12 mm
Type	Shielding Tape	Absorbing Tape, Shielding Tape
Width	1.59 mm	1.59 - 38.1 mm
Width	0.063 "	0.063 "
Width	-	0.429 - 0.8 in
Width	-	10.9 - 20.32 mm
Width	-	1 - 1.5 in

RF EMI ABSORB TAPE 98.75M X 0.8"

Part	Adhesive	Type	Shelf Life	Thickness - Overall	Thickness - Overall	Operating Temperature [Max]	Operating Temperature [Min]	Width [y]	Width [y]	Material	Length [x]	Length [x]	Shape	Shelf Life Start	Thickness - Overall [z]	Thickness - Overall [z]	Width [x]	Width	Width
Parker Chomerics CMT-ST-108-0800	Acrylic, Conductive	Absorbing Tape	24 Months	0.003 "	0.08 mm	82 °C	-40 °C	0.8 in	20.32 mm	Tin-Plated Copper Foil	323.983 '	98.75 m	Circular	Date of Shipment
Parker Chomerics CMT-ST-108-0750	Acrylic, Conductive	Shielding Tape	24 Months			82 °C	-40 °C	0.75 in	19.05 mm	Tin-Plated Copper Foil	323.983 '	98.75 m	Circular	Date of Shipment	0.005 in	0.12 mm
Parker Chomerics CMT-ST-108-1500	Acrylic, Conductive	Shielding Tape	24 Months	0.003 "	0.08 mm	82 °C	-40 °C			Tin-Plated Copper Foil	323.983 '	98.75 m	Circular	Date of Shipment			1.5 in	38.1 mm
Parker Chomerics CMT-ST-108-0500	Acrylic, Conductive	Shielding Tape	24 Months	0.003 "	0.08 mm	82 °C	-40 °C			Tin-Plated Copper Foil	323.983 '	98.75 m	Circular	Date of Shipment
Parker Chomerics CMT-ST-108-1000	Acrylic, Conductive	Shielding Tape	24 Months	0.003 "	0.08 mm	82 °C	-40 °C			Tin-Plated Copper Foil	323.983 '	98.75 m	Circular	Date of Shipment			1 in	25.4 mm
Parker Chomerics CMT-ST-108-0625	Acrylic, Conductive	Shielding Tape	24 Months			82 °C	-40 °C			Tin-Plated Copper Foil	323.983 '	98.75 m	Circular	Date of Shipment	0.005 in	0.12 mm		1.59 mm	0.063 "
Parker Chomerics CMT-ST-108-0430	Acrylic, Conductive	Shielding Tape	24 Months	0.003 "	0.08 mm	82 °C	-40 °C	0.429 in	10.9 mm	Tin-Plated Copper Foil	323.983 '	98.75 m	Circular	Date of Shipment
