Specification	MB7RJN0901-KIT

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Current Rating Options	10A, 30A
Fastening Type	Threaded
Features	Rotatable, Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Feature	Flange
Mounting Type	Panel Mount, Right Angle
Number of Positions (Normal)	5
Number of Positions (Power)	4
Number of Positions (Total)	9
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-20 °C
Orientation	N (Normal)
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-9
Termination	Crimp
Voltage Rating	250 V
Voltage Rating (Type)	DC

MB7RJN Series

Part	Termination	Mounting Feature	Color	Fastening Type	Orientation	Features	Mounting Type	Primary Material	Current Rating Options	Ingress Protection Description	Ingress Protection IP Rating	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish - Mating	Number of Positions (Power)	Number of Positions (Normal)	Number of Positions (Total)	Voltage Rating	Voltage Rating (Type)	Connector Type	Shell Material	Shell Finish	Shell Size - Insert	Contact Shape	Position Types	Number of Positions	Contact Type	Housing Color	Type	Material Flammability Rating	Note	Insert Material	Shielding	Contact Size	Current Rating
McGill Microwave Systems MB7RJN0901-KIT	Crimp	Flange	Silver	Threaded	N (Normal)	Backshell Rotatable	Panel Mount Right Angle	Metal	10A 30A	Dust Tight Waterproof	IP67	-20 °C	130 °C	Gold	4	5	9	250 V	DC	Male Pins Receptacle	Zinc Die Cast	Nickel	M23-9

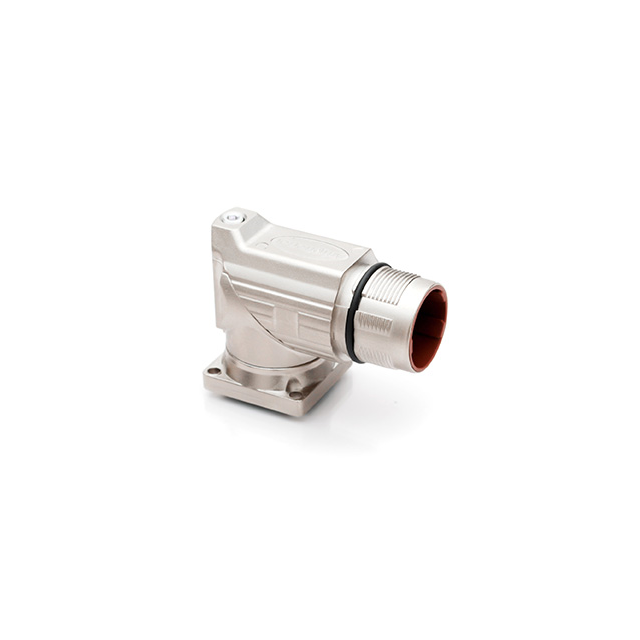

McGill Microwave Systems MB7RJN0902		Flange		Push-Twist	Keyed	Backshell Rotatable	Panel Mount Right Angle			Dust Tight Waterproof	IP67	-20 °C	130 °C							Receptacle Housing	Zinc Die Cast	Nickel	M23-9	Circular	PE Power	9	Crimp	Silver	For Male Pins	UL94 V-0	Contacts Not Included	Nylon 6/6 PA66 Polyamide	Shielded	1 mm 2 mm
McGill Microwave Systems MB7RJN0901		Flange		Threaded	Keyed	Backshell Rotatable	Panel Mount Right Angle			Dust Tight Waterproof	IP67	-20 °C	130 °C							Receptacle Housing	Zinc Die Cast	Nickel	M23-9	Circular	PE Power	9	Crimp	Silver	For Male Pins	UL94 V-0	Contacts Not Included	Nylon 6/6 PA66 Polyamide	Shielded	1 mm 2 mm

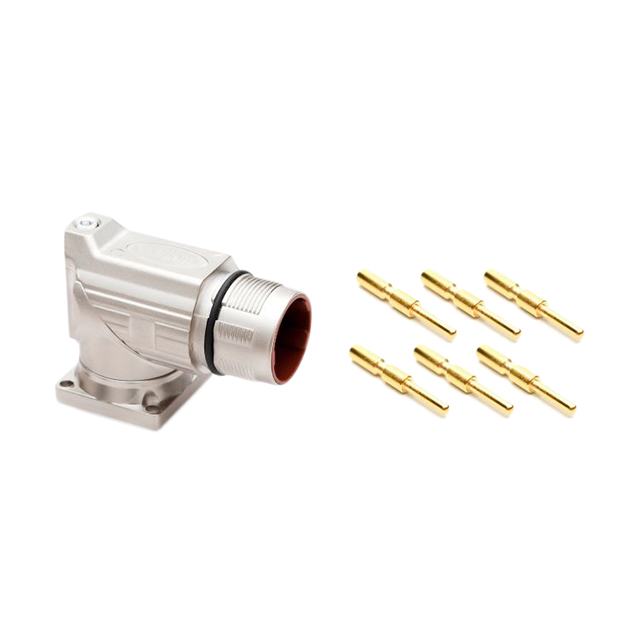

McGill Microwave Systems MB7RJN0602-KIT	Crimp	Flange	Silver	Threaded	N (Normal)	Backshell Rotatable	Panel Mount Right Angle	Metal		Dust Tight Waterproof	IP67	-20 °C	130 °C	Gold				630 V		Male Pins Receptacle	Zinc Die Cast	Nickel	M23-6		Power	6									28 A

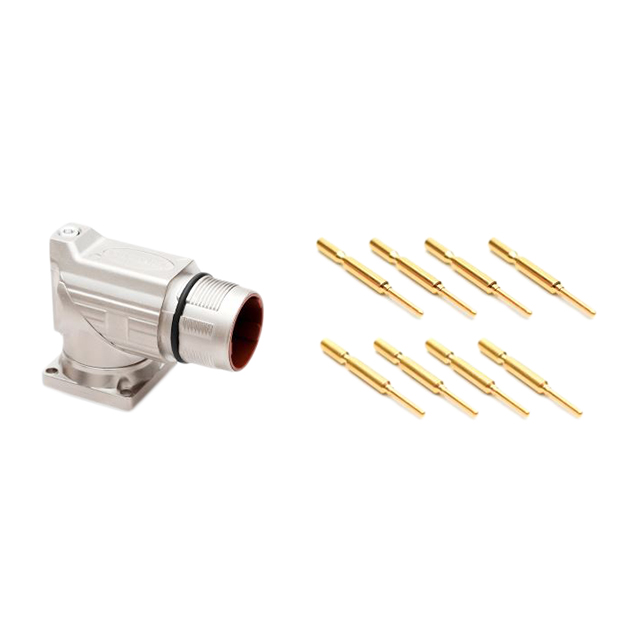

McGill Microwave Systems MB7RJN0802-KIT	Crimp	Flange	Silver	Threaded	N (Normal)	Backshell Rotatable	Panel Mount Right Angle	Metal	10A 30A	Dust Tight Waterproof	IP67	-20 °C	130 °C	Gold	4	4	8	250 V	DC	Male Pins Receptacle	Zinc Die Cast	Nickel	M23-8

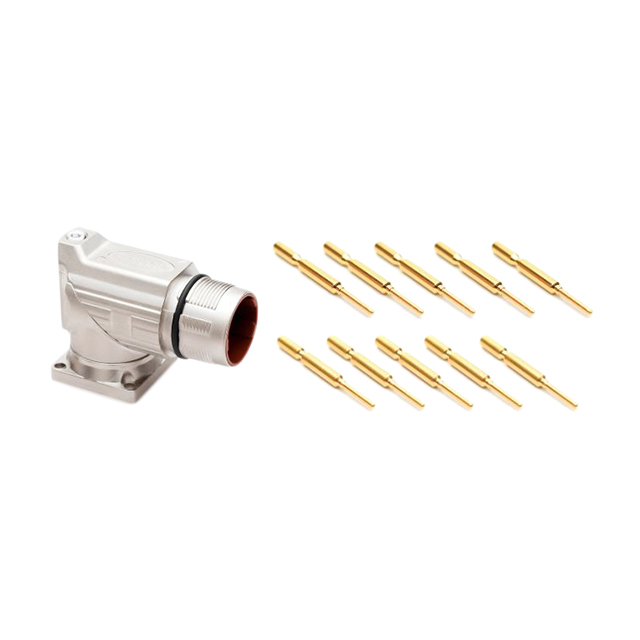

McGill Microwave Systems MB7RJN0902-KIT	Crimp	Flange	Silver	Threaded	N (Normal)	Backshell Rotatable	Panel Mount Right Angle	Metal	10A 30A	Dust Tight Waterproof	IP67	-20 °C	130 °C	Gold	4	5	9	250 V	DC	Male Pins Receptacle	Zinc Die Cast	Nickel	M23-9

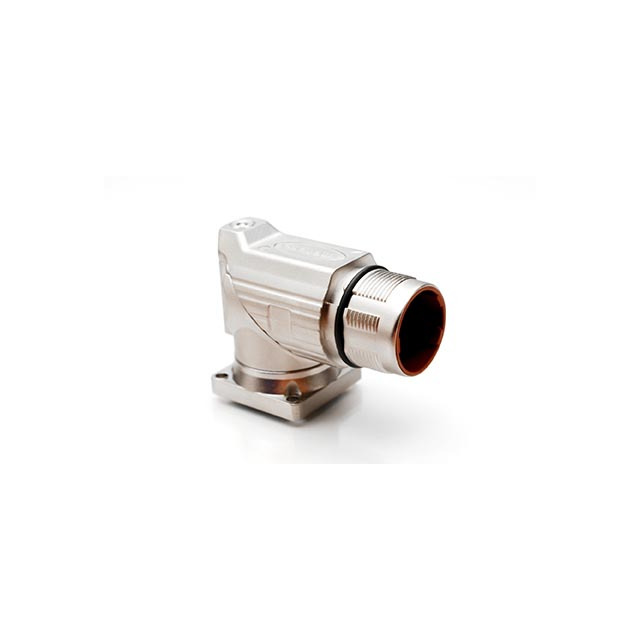

McGill Microwave Systems MB7RJN0802		Flange		Push-Twist	Keyed	Backshell Rotatable	Panel Mount Right Angle			Dust Tight Waterproof	IP67	-20 °C	130 °C							Receptacle Housing	Zinc Die Cast	Nickel	M23-8	Circular	PE Power	8	Crimp	Silver	For Male Pins	UL94 V-0	Contacts Not Included	Nylon 6/6 PA66 Polyamide	Shielded	1 mm 2 mm
