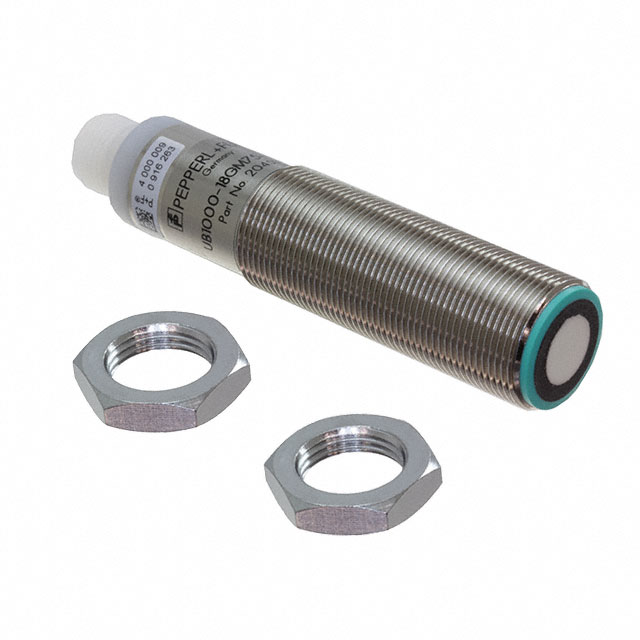

UB1000-18GM75-E5-V15

Active

PEPPERL+FUCHS

ULTRASONIC SEN 70-1000MM PNP

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

ULTRASONIC SEN 70-1000MM PNP

Technical Specifications

Parameters and characteristics commom to parts in this series

ULTRASONIC SEN 70-1000MM ANALOG

Part	Indicator [custom]	Package / Case	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Ingress Protection	Sensor Type	Material - Body
PEPPERL+FUCHS UB1000-18GM75-U-V15	LED	Cylinder, Threaded - M18	Analog Voltage	15 VDC	30 VDC	Connector	70 °C	-25 °C	Unshielded	70 mm	2.756 "	39.37 in	1000 mm	IP67	Ultrasonic	Nickel-Plated Brass
PEPPERL+FUCHS UB1000-18GM75-E5-V15	LED	Cylinder, Threaded - M18	4-Wire, PNP-NC/NO	10 VDC	30 VDC	Connector	70 °C	-25 °C	Unshielded	70 mm	2.756 "	39.37 in	1000 mm	IP67	Ultrasonic	Nickel-Plated Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ULTRASONIC SEN 70-1000MM PNP

Technical documentation and resources
