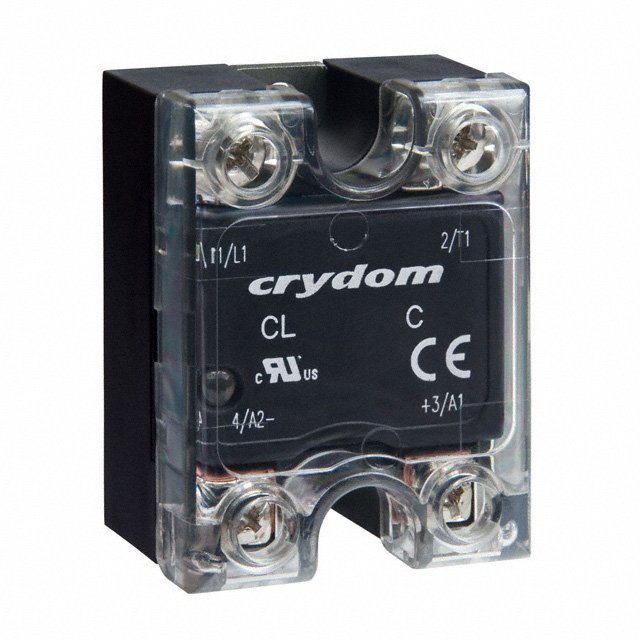

CL240A05C

Active

Sensata-Crydom

SSR RELAY SPST-NO 5A 24-280V

Search across all available documentation for this part.

Active

Sensata-Crydom

SSR RELAY SPST-NO 5A 24-280V

Technical Specifications

Parameters and characteristics for this part

Part	Output Type	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Load Current	Voltage - Load [Min]	Voltage - Load [Max]	Termination Style	Approval Agency	Package / Case	Mounting Type
Sensata-Crydom CL240A10R	AC	250 VAC	90 VAC	-40 °C	80 C	10 A	24 V	280 V	Screw Terminal	CE cURus	Hockey Puck	Chassis Mount
Sensata-Crydom CL240A10C	AC Zero Cross	250 VAC	90 VAC	-40 °C	80 C	10 A	24 V	280 V	Screw Terminal	CE cURus	Hockey Puck	Chassis Mount
Sensata-Crydom CL240A05C	AC Zero Cross	250 VAC	90 VAC	-40 °C	80 C	5 A	24 V	280 V	Screw Terminal	CE cURus	Hockey Puck	Chassis Mount
Sensata-Crydom CL240A10RC	AC	250 VAC	90 VAC	-40 °C	80 C	10 A	24 V	280 V	Screw Terminal	CE cURus	Hockey Puck	Chassis Mount
Sensata-Crydom CL240A05CH	AC Zero Cross	250 VAC	90 VAC	-40 °C	80 C	5 A	24 V	280 V	Screw Terminal	CE cURus	Hockey Puck	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) Hockey Puck
