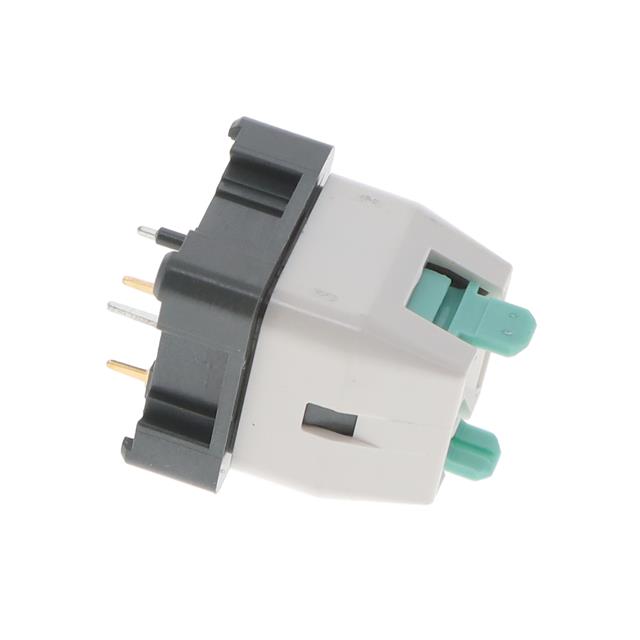

99-455.837
ActiveEAO
SWITCH PB SPST-NO 0.1A 42V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
99-455.837
ActiveEAO
SWITCH PB SPST-NO 0.1A 42V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 99-455.837 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Rectangular, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | White |
| Current Rating (Amps) | 100 mA |
| Ingress Protection | IP40 |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Switch Function | Off-Mom |
| Type | Standard |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 42 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.11 | |
| 10 | $ 10.45 | |||
| 25 | $ 9.85 | |||
| 50 | $ 9.42 | |||
| 100 | $ 9.01 | |||
| 250 | $ 8.88 | |||
99-455 Series
SWITCH PB SPST-NO 0.1A 42V
| Part | Switch Function | Type | Color - Actuator/Cap | Voltage Rating - AC | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Current Rating (Amps) | Mounting Type | Ingress Protection | Voltage Rating - DC | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 99-455.837 | Off-Mom | Standard | White | 42 V | Rectangular, Button | 55 °C | -25 °C | SPST-NO | 100 mA | Panel Mount, Front | IP40 | 42 V | No Marking |
Description
General part information
99-455 Series
Pushbutton Switch SPST-NO Standard Panel Mount, Front
