95-132I25

Active

Aries Electronics

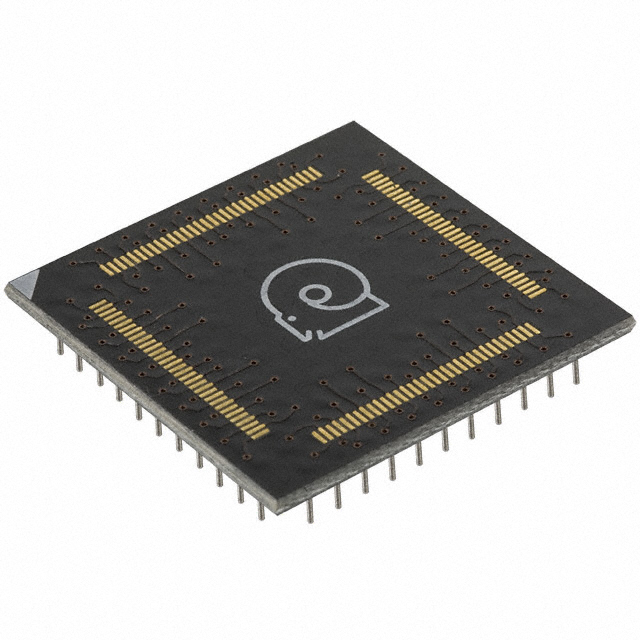

SOCKET ADAPTER QFP TO 132PGA

Search across all available documentation for this part.

Active

Aries Electronics

SOCKET ADAPTER QFP TO 132PGA

Technical Specifications

Parameters and characteristics for this part

Specification	95-132I25

Board Material	FR4 Epoxy Glass
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Copper
Contact Material - Post [custom]	Brass
Convert From (Adapter End)	QFP
Convert To (Adapter End)	PGA
Mounting Type	Through Hole
Number of Pins	132 pins
Pitch - Mating	0.025 in
Pitch - Mating	0.64 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in

SOCKET ADAPTER QFP TO 132PGA

Part	Pitch - Mating	Pitch - Mating	Contact Material - Post [custom]	Mounting Type	Termination Post Length	Termination Post Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Post	Pitch - Post	Board Material	Contact Material - Mating	Convert From (Adapter End)	Termination	Contact Finish - Post	Number of Pins	Convert To (Adapter End)
Aries Electronics 95-132I25	0.025 in	0.64 mm	Brass	Through Hole	3.18 mm	0.125 in	200 µin	5.08 µm	2.54 mm	0.1 in	FR4 Epoxy Glass	Copper	QFP	Solder	Tin-Lead	132 pins	PGA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IC Socket Adapter QFP To PGA Through Hole
