Q-1U03L0005108i

Active

Amphenol Custom Cable

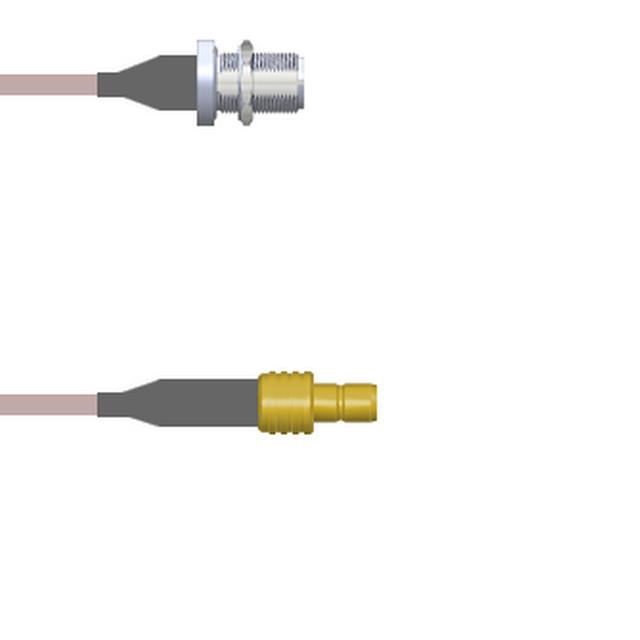

CBL ASSY SMB-NTYPE JACK-JACK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U03L0005108i

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE JACK-JACK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U03L0005108i

1st Connector	SMB Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-1U03L0 Series

Part	Cable Type	2nd Connector	2nd Connector Mounting Feature	Overall Impedance	1st Connector Mounting Type	Length	Length	1st Connector	Style	2nd Contact Gender	2nd Connector Mounting Type	1st Contact Gender	Color	Frequency - Max [Max]	Features	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1U03L0005024i	RG-316	N-Type Jack	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	24 "	609.6 mm	SMB Jack	SMB to N-Type	Female	Panel Mount	Male	Copper	4 GHz	Shielded
Amphenol Custom Cable Q-1U03L0003003M	RG-174	N-Type Jack	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	118.1 in	3 m	SMB Jack	SMB to N-Type	Female	Panel Mount	Male	Black	4 GHz	Shielded	9.8 '
Amphenol Custom Cable Q-1U03L0003.75M	RG-174	N-Type Jack	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	29.53 "	750 mm	SMB Jack	SMB to N-Type	Female	Panel Mount	Male	Black	4 GHz	Shielded
Amphenol Custom Cable Q-1U03L0005084i	RG-316	N-Type Jack	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	84 in	2.1 m	SMB Jack	SMB to N-Type	Female	Panel Mount	Male	Copper	4 GHz	Shielded	7 ft
Amphenol Custom Cable Q-1U03L00050.5M	RG-316	N-Type Jack	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	19.69 "	50 cm	SMB Jack	SMB to N-Type	Female	Panel Mount	Male	Copper	4 GHz	Shielded
Amphenol Custom Cable Q-1U03L00051.5M	RG-316	N-Type Jack	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	59.1 in	1.5 m	SMB Jack	SMB to N-Type	Female	Panel Mount	Male	Copper	4 GHz	Shielded	4.9 ft
Amphenol Custom Cable Q-1U03L0005.25M	RG-316	N-Type Jack	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)			SMB Jack	SMB to N-Type	Female	Panel Mount	Male	Copper	4 GHz	Shielded		9.843 "	250 mm
Amphenol Custom Cable Q-1U03L0003108i	RG-174	N-Type Jack	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	108 in	2.7 m	SMB Jack	SMB to N-Type	Female	Panel Mount	Male	Black	4 GHz	Shielded	9 ft
Amphenol Custom Cable Q-1U03L0005108i	RG-316	N-Type Jack	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	108 in	2.7 m	SMB Jack	SMB to N-Type	Female	Panel Mount	Male	Copper	4 GHz	Shielded	9 ft
Amphenol Custom Cable Q-1U03L0003060i	RG-174	N-Type Jack	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	5 '	1.5 m	SMB Jack	SMB to N-Type	Female	Panel Mount	Male	Black	4 GHz	Shielded	5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 142.32
		25	$ 139.57
		50	$ 136.82
		100	$ 134.08
		250	$ 131.33

Description

General part information

Q-1U03L0 Series

Cable Assembly Coaxial SMB to N-Type RG-316 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
