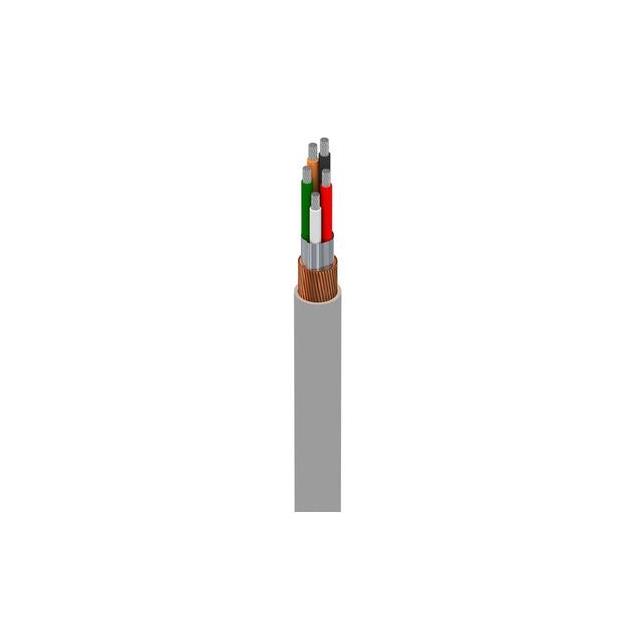

76205WS 008500

Active

Belden Inc.

CABLE 5CON 24AWG CHROM SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 5CON 24AWG CHROM SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	76205WS 008500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	10
Conductor Strand [diameter]	34 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.225 "
Jacket (Insulation) Diameter [diameter]	5.72 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	5
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Spiral
Voltage	300 V
Wire Gauge	24 AWG

Part	Number of Conductors	Length [x]	Length [x]	Voltage	Wire Gauge	Cable Type	Conductor Insulation	Conductor Strand [diameter]	Conductor Strand [custom]	Shield Material	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Conductor Material	Shield Coverage	Jacket Color	Shield Type
Belden Inc. 76205WS 008500	5	500 '	152.4 m	300 V	24 AWG	Multi-Conductor	Poly-Vinyl Chloride (PVC)	34 AWG	10	Aluminum Copper Tinned	Oil Resistant	0.04 in	1.016 mm	0.225 "	5.72 mm	Poly-Vinyl Chloride (PVC)	Copper Tinned	90 % 100 %	Chrome	Foil Spiral

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 2.39

General part information

5 Conductor Multi-Conductor Cable Chrome 24 AWG Foil, Spiral 500.0' (152.4m)
