SDF-S15-203L011

Active

NorComp Inc.

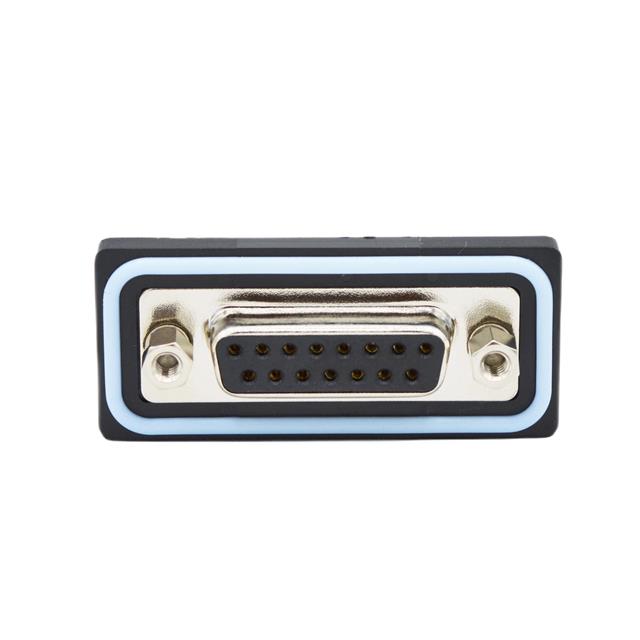

D SUB CONNECTOR, IP67, STANDARD, RECEPTACLE, NANOOK SERIES, 15 CONTACTS, DA, SOLDER CUP

Search across all available documentation for this part.

Active

NorComp Inc.

D SUB CONNECTOR, IP67, STANDARD, RECEPTACLE, NANOOK SERIES, 15 CONTACTS, DA, SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SDF-S15-203L011	SDF-S15 Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Plug, Male Pins, Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Finish Thickness	-	0.76 Ám
Contact Finish Thickness	-	30 Áin
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Features	-	Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	15	15
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout	2	2

D SUB CONNECTOR, IP67, STANDARD, PLUG, NANOOK SERIES, 15 CONTACTS, DA, SOLDER CUP

Part	Connector Type	Shell Size, Connector Layout	Flange Feature	Dielectric Material	Features	Ingress Protection	Color	Number of Rows	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Connector Style	Shell Material, Finish	Number of Positions	Current Rating (Amps)	Contact Type	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness
NorComp Inc. SDF-S15-103L012	Male Pins, Plug	2	Female Screwlock (4-40), Mating Side	Polybutylene Terephthalate (PBT)	Grounding Indents	IP67 - Dust Tight, Waterproof	Black	2	Brass	-25 °C	85 °C	Gold	D-Sub	Nickel Plated, Steel	15	5 A	Signal	UL94 V-0	0.76 Ám	30 Áin
NorComp Inc. SDF-S15-203L011	Receptacle, Female Sockets	2	Female Screwlock (4-40), Mating Side	Polybutylene Terephthalate (PBT)		IP67 - Dust Tight, Waterproof	Black	2	Brass	-25 °C	85 °C	Gold	D-Sub	Nickel Plated, Steel	15	5 A	Signal	UL94 V-0			Flash
NorComp Inc. SDF-S15-203L012	Receptacle, Female Sockets	2	Female Screwlock (4-40), Mating Side	Polybutylene Terephthalate (PBT)		IP67 - Dust Tight, Waterproof	Black	2	Brass	-25 °C	85 °C	Gold	D-Sub	Nickel Plated, Steel	15	5 A	Signal	UL94 V-0	0.76 Ám	30 Áin
NorComp Inc. SDF-S15-103L011	Male Pins, Plug	2	Female Screwlock (4-40), Mating Side	Polybutylene Terephthalate (PBT)	Grounding Indents	IP67 - Dust Tight, Waterproof	Black	2	Brass	-25 °C	85 °C	Gold	D-Sub	Nickel Plated, Steel	15	5 A	Signal	UL94 V-0			Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Receptacle, Female Sockets Connector
