155226-6202-RB

Active

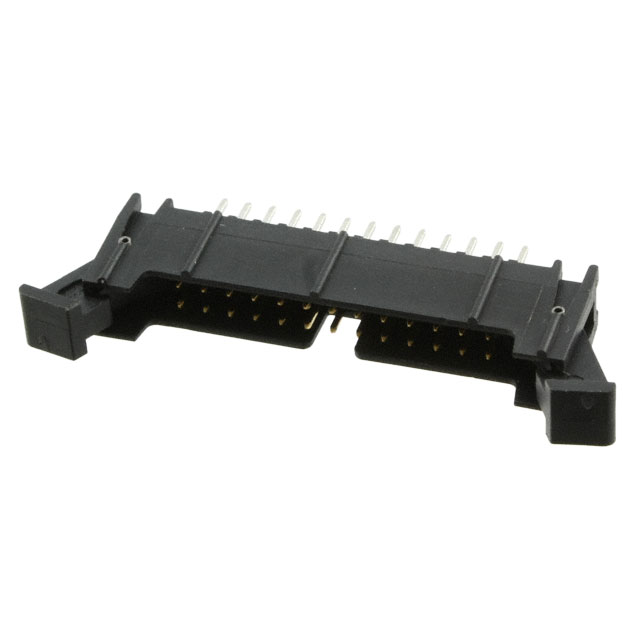

PIN HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 26 CONTACTS, THROUGH HOLE STRAIGHT, 1552 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

155226-6202-RB

Active

PIN HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 26 CONTACTS, THROUGH HOLE STRAIGHT, 1552 SERIES

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	155226-6202-RB	155226 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	10 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.25 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	0.15 in	0.15 in
Contact Length - Mating	3.81 mm	3.81 mm
Contact Length - Post	2.84 mm	2.84 - 3.94 mm
Contact Length - Post	0.112 in	0.112 - 0.155 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks
Features	Keying Slot	Keying Slot, Pick and Place
Insulation Color	Black	Black
Insulation Height	0.425 in	0.247 - 0.425 in
Insulation Height	10.8 mm	6.28 - 10.8 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Surface Mount, Through Hole, Through Hole, Right Angle
Number of Positions	26	26
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

155226 Series

CONN HEADER SMD 26POS 2MM

Part	Fastening Type	Contact Finish - Mating	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Insulation Height	Insulation Height	Contact Finish - Post	Features	Shrouding	Style	Connector Type	Number of Positions Loaded	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Current Rating (Amps)	Number of Rows	Contact Length - Mating	Contact Length - Mating	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post
3M 155226-2300-RB	Latch Lock/Eject Hooks	Gold	26	200 µin	5.08 µm	Male Pin	0.079 in	2 mm	UL94 V-0	Copper Alloy	105 ░C	-55 °C	Surface Mount	0.425 in	10.8 mm	Tin	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	Header	All	Square	30 Áin	0.76 Ám	Solder	1.25 A	2	0.15 in	3.81 mm	Black	0.079 in	2 mm
3M 155226-2300-RB-WF	Latch Lock/Eject Hooks	Gold	26	200 µin	5.08 µm	Male Pin	0.079 in	2 mm	UL94 V-0	Copper Alloy	105 ░C	-55 °C	Surface Mount	0.425 in	10.8 mm	Tin	Keying Slot, Pick and Place	Shrouded - 4 Wall	Board to Cable/Wire	Header	All	Square	30 Áin	0.76 Ám	Solder	1.25 A	2	0.15 in	3.81 mm	Black	0.079 in	2 mm
3M 155226-6302-RA	Latch Lock/Eject Hooks	Gold	26	200 µin	5.08 µm	Male Pin	0.079 in	2 mm	UL94 V-0	Copper Alloy	105 ░C	-55 °C	Through Hole	0.425 in	10.8 mm	Tin	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	Header	All	Square	10 çin	0.25 çm	Solder	1.25 A	2	0.15 in	3.81 mm	Black	0.079 in	2 mm	2.84 mm	0.112 in
3M 155226-6202-RB	Latch Lock/Eject Hooks	Gold	26	200 µin	5.08 µm	Male Pin	0.079 in	2 mm	UL94 V-0	Copper Alloy	105 ░C	-55 °C	Through Hole	0.425 in	10.8 mm	Tin	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	Header	All	Square	30 Áin	0.76 Ám	Solder	1.25 A	2	0.15 in	3.81 mm	Black	0.079 in	2 mm	2.84 mm	0.112 in
3M 155226-5202-RB	Latch Lock/Eject Hooks	Gold	26	200 µin	5.08 µm	Male Pin	0.079 in	2 mm	UL94 V-0	Copper Alloy	105 ░C	-55 °C	Through Hole, Right Angle	0.247 in	6.28 mm	Tin	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	Header	All	Square	30 Áin	0.76 Ám	Solder	1.25 A	2	0.15 in	3.81 mm	Black	0.079 in	2 mm	2.84 mm	0.112 in
3M 155226-5303-RB	Latch Lock/Eject Hooks	Gold	26	200 µin	5.08 µm	Male Pin	0.079 in	2 mm	UL94 V-0	Copper Alloy	105 ░C	-55 °C	Through Hole, Right Angle	0.247 in	6.28 mm	Tin	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	Header	All	Square	30 Áin	0.76 Ám	Solder	1.25 A	2	0.15 in	3.81 mm	Black	0.079 in	2 mm	3.94 mm	0.155 "
3M 155226-5302-RB	Latch Lock/Eject Hooks	Gold	26	200 µin	5.08 µm	Male Pin	0.079 in	2 mm	UL94 V-0	Copper Alloy	105 ░C	-55 °C	Through Hole, Right Angle	0.247 in	6.28 mm	Tin	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	Header	All	Square	30 Áin	0.76 Ám	Solder	1.25 A	2	0.15 in	3.81 mm	Black	0.079 in	2 mm	2.84 mm	0.112 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	980	$ 6.27

Description

General part information

155226 Series

Connector Header Through Hole 26 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet
