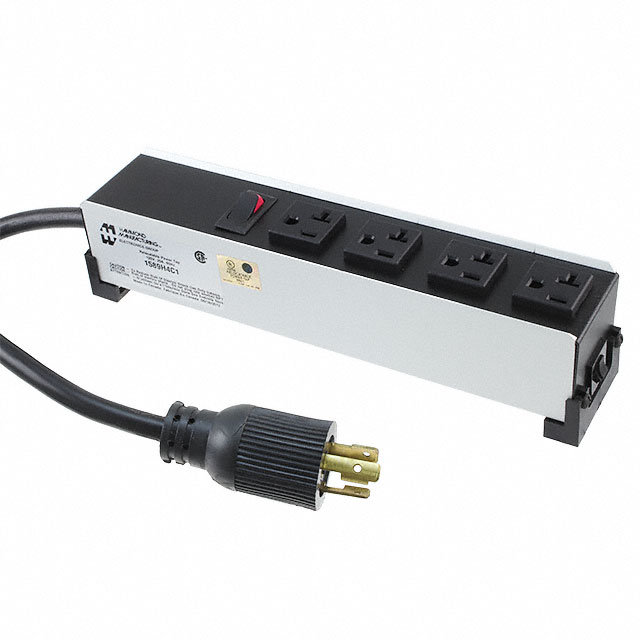

Specification	1589H4C1

AC Outlets (Count)	4 count
Approval Agency	UL, CSA
Connector - AC Input	NEMA L5-20P
Connector - AC Output	NEMA 5-20R
Cord Length	6 ft
Current - Max	20 A
Housing Material	Aluminum, Steel
Mounting Type	Bench, Wall
Overload Protection	Circuit Breaker(s)
Region Utilized	North America
Type	Outlet Strip, Power Strip
Voltage - Input	120 VAC
Weight	3 lb

1589H4 Series

Part	Mounting Type	Overload Protection	Type	Connector - AC Output	Cord Length	Connector - AC Input	Housing Material	Region Utilized	Current - Max	Voltage - Input	Connector - AC Output Quantity (NEMA 5-20R)	AC Outlets (Count)	Approval Agency	Weight
Hammond Manufacturing 1589H48G1	Bench Chassis Mount Rack Wall	Circuit Breaker(s) None	Outlet Strip PDU (Power Distribution Unit) Power Strip	NEMA 5-20R	15 ft	NEMA 5-20P	Aluminum	North America	20 A	120 VAC	8 pcs	8 count	CSA UL
Hammond Manufacturing 1589H42G1	Bench Rack Wall	Circuit Breaker(s)	PDU (Power Distribution Unit)	NEMA 5-20R	15 ft	NEMA 5-20P	Aluminum	North America	20 A	120 VAC		7 count	CSA UL
Hammond Manufacturing 1589H48D1	Bench Rack Wall	Circuit Breaker(s)	PDU (Power Distribution Unit)	NEMA 5-20R	15 ft	NEMA L5-20P	Aluminum	North America	20 A	120 VAC		8 count	CSA UL
Hammond Manufacturing 1589H48C116	Bench Rack Wall	Circuit Breaker(s)	PDU (Power Distribution Unit)	NEMA 5-20R	6 ft	NEMA L5-20P	Aluminum	North America	20 A	120 VAC		16 count	CSA UL
Hammond Manufacturing 1589H42C1	Bench Rack Wall	Circuit Breaker(s)	PDU (Power Distribution Unit)	NEMA 5-20R	6 ft	NEMA L5-20P	Aluminum	North America	20 A	120 VAC		7 count	CSA UL
Hammond Manufacturing 1589H4C1	Bench Wall	Circuit Breaker(s)	Outlet Strip Power Strip	NEMA 5-20R	6 ft	NEMA L5-20P	Aluminum Steel	North America	20 A	120 VAC		4 count	CSA UL	3 lb
Hammond Manufacturing 1589H4F1	Bench Wall	Circuit Breaker(s)	Outlet Strip Power Strip	NEMA 5-20R	6 ft	NEMA 5-20P	Aluminum Steel	North America	20 A	120 VAC		4 count	CSA UL	3 lb
Hammond Manufacturing 1589H48F1	Bench Rack Wall	Circuit Breaker(s)	PDU (Power Distribution Unit)	NEMA 5-20R	6 ft	NEMA 5-20P	Aluminum	North America	20 A	120 VAC		8 count	CSA UL
Hammond Manufacturing 1589H42F1	Bench Rack Wall	Circuit Breaker(s)	PDU (Power Distribution Unit)	NEMA 5-20R	6 ft	NEMA 5-20P	Aluminum	North America	20 A	120 VAC		7 count	CSA UL
Hammond Manufacturing 1589H48G116	Bench Rack Wall	Circuit Breaker(s)	PDU (Power Distribution Unit)	NEMA 5-20R	15 ft	NEMA 5-20P	Aluminum	North America	20 A	120 VAC		16 count	CSA UL
