Specification	3-644565-3

Cable Termination	IDC
Color	Green
Connector Type	Receptacle
Contact Finish	Tin
Contact Finish Thickness	80 µin
Contact Type	Female Socket
Fastening Type	Locking Ramp
Features	Feed Through
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Positions	3
Number of Rows	1
Pitch	0.1 in
Wire Gauge	28 AWG
Wire Type	Ribbon Cable, Discrete

644565 Series

Part	Contact Finish	Color	Cable Termination	Contact Type	Wire Type	Number of Positions	Wire Gauge	Number of Rows	Features	Fastening Type	Contact Finish Thickness	Mounting Type	Pitch	Connector Type

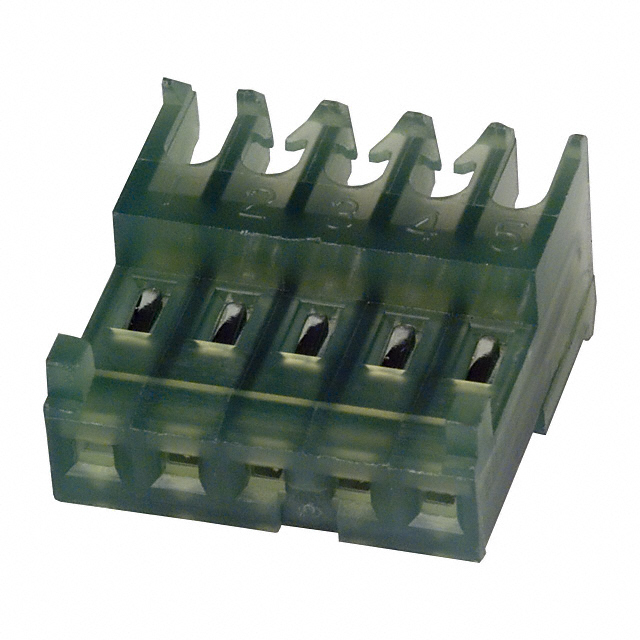

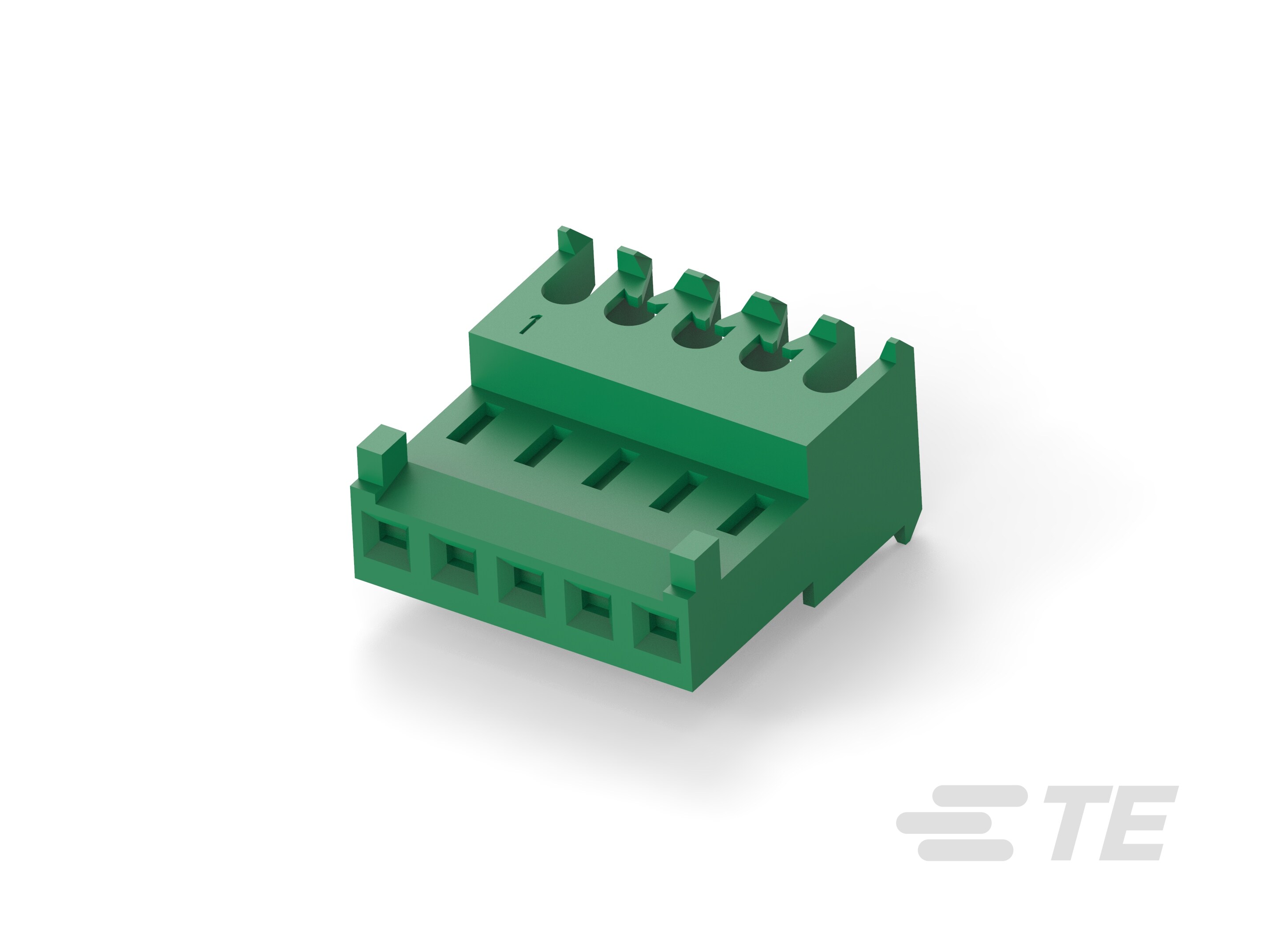

TE Connectivity AMP Connectors 3-644565-5	Tin	Green	IDC	Female Socket	Discrete Ribbon Cable	5	28 AWG	1	Feed Through	Locking Ramp	80 µin	Free Hanging (In-Line) Right Angle	0.1 in	Receptacle
TE Connectivity AMP Connectors 4-644565-2	Tin	Green	IDC	Female Socket	Discrete Ribbon Cable	12	28 AWG	1	Feed Through	Locking Ramp	80 µin	Free Hanging (In-Line) Right Angle	0.1 in	Receptacle

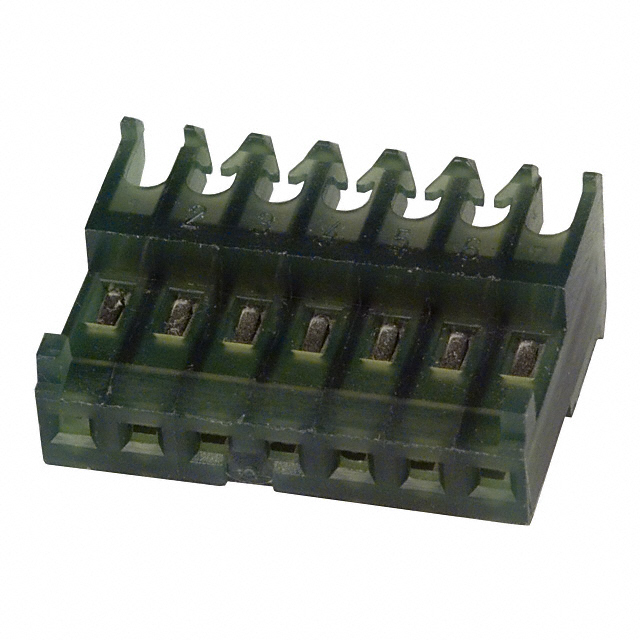

TE Connectivity AMP Connectors 3-644565-7	Tin	Green	IDC	Female Socket	Discrete Ribbon Cable	7	28 AWG	1	Feed Through	Locking Ramp	80 µin	Free Hanging (In-Line) Right Angle	0.1 in	Receptacle
TE Connectivity AMP Connectors 3-644565-3	Tin	Green	IDC	Female Socket	Discrete Ribbon Cable	3	28 AWG	1	Feed Through	Locking Ramp	80 µin	Free Hanging (In-Line) Right Angle	0.1 in	Receptacle

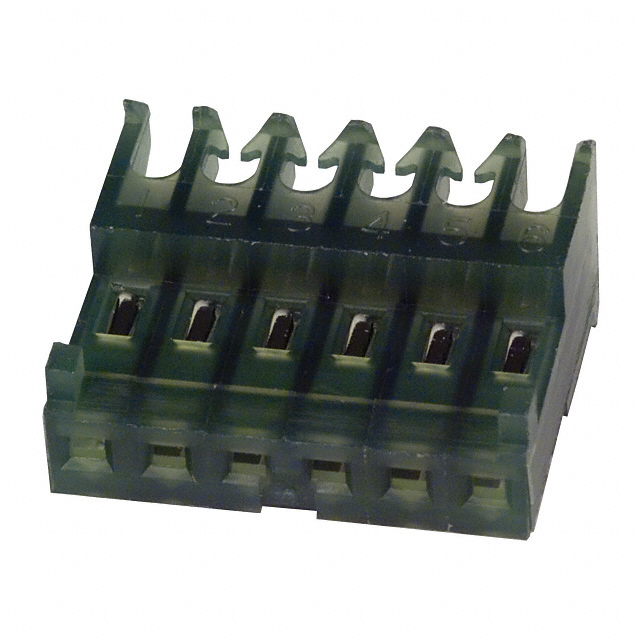

TE Connectivity AMP Connectors 644565-6	Tin-Lead	Green	IDC	Female Socket	Discrete Ribbon Cable	6	28 AWG	1	Feed Through	Locking Ramp	80 µin	Free Hanging (In-Line) Right Angle	0.1 in	Receptacle

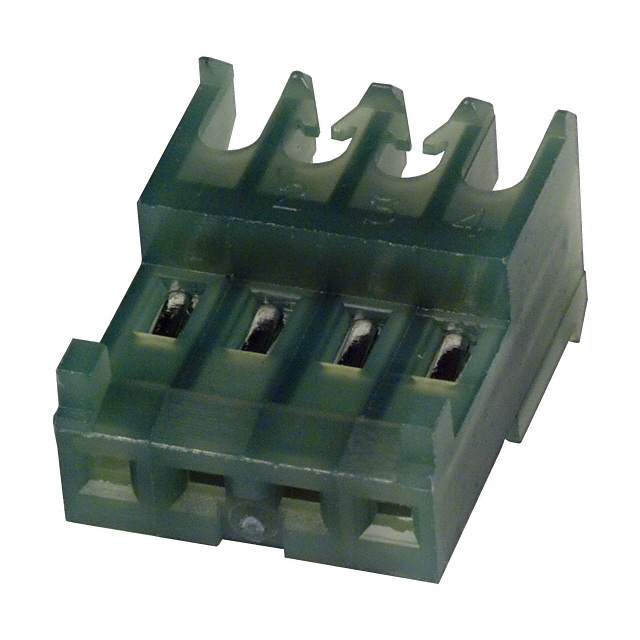

TE Connectivity AMP Connectors 644565-4	Tin-Lead	Green	IDC	Female Socket	Discrete Ribbon Cable	4	28 AWG	1	Feed Through	Locking Ramp	80 µin	Free Hanging (In-Line) Right Angle	0.1 in	Receptacle
TE Connectivity AMP Connectors 4-644565-3	Tin	Green	IDC	Female Socket	Discrete Ribbon Cable	13	28 AWG	1	Feed Through	Locking Ramp	80 µin	Free Hanging (In-Line) Right Angle	0.1 in	Receptacle
TE Connectivity AMP Connectors 3-644565-2	Tin	Green	IDC	Female Socket	Discrete Ribbon Cable	2	28 AWG	1	Feed Through	Locking Ramp	80 µin	Free Hanging (In-Line) Right Angle	0.1 in	Receptacle
TE Connectivity AMP Connectors 644565-5	Tin-Lead	Green	IDC	Female Socket	Discrete Ribbon Cable	5	28 AWG	1	Feed Through	Locking Ramp	80 µin	Free Hanging (In-Line) Right Angle	0.1 in	Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Product Change Notice EN

3-644565-3 | Datasheet
