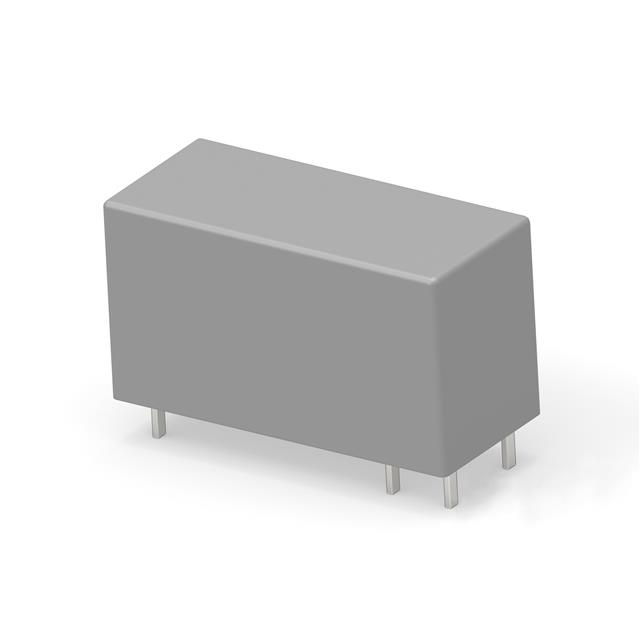

4-1415898-0

Unknown

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 16A 110V

Search across all available documentation for this part.

Unknown

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 16A 110V

Technical Specifications

Parameters and characteristics for this part

Specification	4-1415898-0

Approval Agency	cURus, CQC, VDE, CSA
Coil Current	3.8 mA
Coil Insulation	Class F
Coil Resistance	28800 Ohms
Coil Type	Non Latching
Coil Voltage	110 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Tungsten (W), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	16 A
Load - Max Switching	6400 VA
Mounting Type	Through Hole
Must Operate Voltage	77 VDC
Must Release Voltage	11 VDC
Operate Time	10 ms
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	5 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage	480 VAC
Termination Style	PC Pin

Part	Coil Voltage	Termination Style	Approval Agency	Contact Form	Load - Max Switching	Contact Material	Coil Type	Release Time	Must Release Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Coil Insulation	Coil Current	Must Operate Voltage	Contact Rating (Current)	Relay Type	Switching Voltage	Operate Time	Seal Rating	Coil Resistance
TE Connectivity Potter & Brumfield Relays 4-1415898-0	110 VDC	PC Pin	CQC CSA cURus VDE	SPST-NO (1 Form A)	6400 VA	Silver Tin Oxide (AgSnO) Tungsten (W)	Non Latching	5 ms	11 VDC	-40 °C	105 ░C	Through Hole	Class F	3.8 mA	77 VDC	16 A	General Purpose	480 VAC	10 ms	Sealed - Flux Protection	28800 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 5.37

General part information

General Purpose Relay SPST-NO (1 Form A) 110VDC Coil Through Hole
