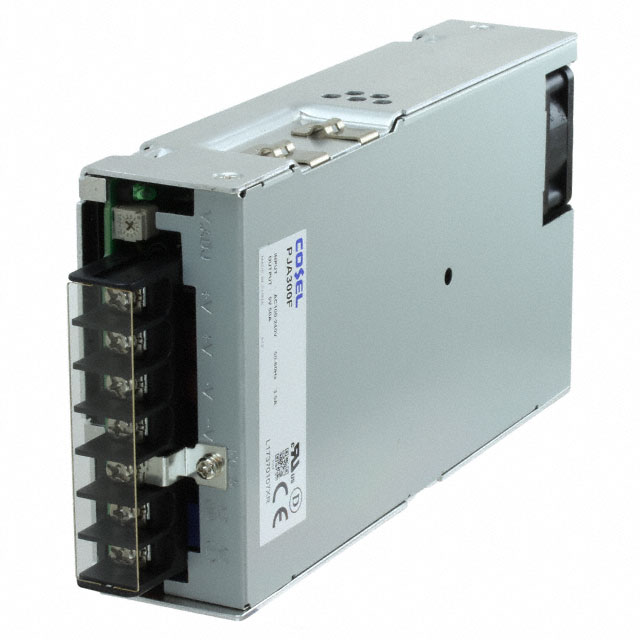

PJA300F-36

Active

Cosel USA, Inc.

AC/DC CONVERTER 36V 302W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PJA300F-36

Active

Cosel USA, Inc.

AC/DC CONVERTER 36V 302W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PJA300F-36

Applications	ITE (Commercial)
Approval Agency	CE, UL, CSA, DEMKO, cURus
Current - Output 1	8.4 A
Efficiency	87 %
Features	Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	302 W
Size / Dimension [x]	190 mm
Size / Dimension [x]	7.48 "
Size / Dimension [y]	4.02 in
Size / Dimension [y]	102.1 mm
Size / Dimension [z]	1.61 "
Size / Dimension [z]	40.9 mm
Standard Number	508, 62368-1, 60950-1
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	36 V

PJA300F Series

Part	Number of Outputs	Mounting Type	Standard Number	Type	Voltage - Output 1	Current - Output 1	Power (Watts)	Applications	Approval Agency	Voltage - Isolation	Efficiency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Features
Cosel USA, Inc. PJA300F-36-R	1	Chassis Mount	508 60950-1 62368-1	Enclosed	36 V	8.4 A	302 W	ITE (Commercial)	CE CSA cURus DEMKO UL	3000 V	87 %	1.61 "	40.9 mm	4.02 in	190 mm	102.1 mm	7.48 "	-20 °C	70 °C	Universal Input
Cosel USA, Inc. PJA300F-48-R	1	Chassis Mount	508 60950-1 62368-1	Enclosed	48 V	6.3 A	302 W	ITE (Commercial)	CE CSA cURus DEMKO UL	3000 V	86 %	1.61 "	40.9 mm	4.02 in	190 mm	102.1 mm	7.48 "	-20 °C	70 °C	Universal Input
Cosel USA, Inc. PJA300F-48	1	Chassis Mount	508 60950-1 62368-1	Enclosed	48 V	6.3 A	302 W	ITE (Commercial)	CE CSA cURus DEMKO UL	3000 V	86 %	1.61 "	40.9 mm	4.02 in	190 mm	102.1 mm	7.48 "	-20 °C	70 °C	Universal Input
Cosel USA, Inc. PJA300F-12-C	1	Chassis Mount	508 60950-1 62368-1	Conformal Coated Enclosed	12 V	25 A	300 W	ITE (Commercial)	CE CSA cURus DEMKO UL	3000 V		1.61 "	40.9 mm	4.02 in	190 mm	102.1 mm	7.48 "	-20 °C	70 °C	Universal Input
Cosel USA, Inc. PJA300F-12-F4	1	Chassis Mount	508 60950-1 62368-1	Enclosed	12 V	25 A	300 W	ITE (Commercial)	CE CSA cURus DEMKO UL	3000 V		1.61 "	40.9 mm	4.02 in	190 mm	102.1 mm	7.48 "	-20 °C	70 °C	Universal Input
Cosel USA, Inc. PJA300F-48-M	1	Chassis Mount	508 60950-1 62368-1	Enclosed	48 V	6.3 A	302 W	ITE (Commercial)	CE CSA cURus DEMKO UL	3000 V	86 %	1.61 "	40.9 mm	4.02 in	190 mm	102.1 mm	7.48 "	-20 °C	70 °C	Universal Input
Cosel USA, Inc. PJA300F-24-F4	1	Chassis Mount	508 60950-1 62368-1	Enclosed	24 V	12.5 A	300 W	ITE (Commercial)	CE CSA cURus DEMKO UL	3000 V	86 %	1.61 "	40.9 mm	4.02 in	190 mm	102.1 mm	7.48 "	-20 °C	70 °C	Universal Input
Cosel USA, Inc. PJA300F-36	1	Chassis Mount	508 60950-1 62368-1	Enclosed	36 V	8.4 A	302 W	ITE (Commercial)	CE CSA cURus DEMKO UL	3000 V	87 %	1.61 "	40.9 mm	4.02 in	190 mm	102.1 mm	7.48 "	-20 °C	70 °C	Universal Input
Cosel USA, Inc. PJA300F-15-G	1	Chassis Mount	508 60950-1 62368-1	Enclosed	15 V	20 A	300 W	ITE (Commercial)	CE CSA cURus DEMKO UL	3000 V	84 %	1.61 "	40.9 mm	4.02 in	190 mm	102.1 mm	7.48 "	-20 °C	70 °C	Universal Input
Cosel USA, Inc. PJA300F-15-F4	1	Chassis Mount	508 60950-1 62368-1	Enclosed	15 V	20 A	300 W	ITE (Commercial)	CE CSA cURus DEMKO UL	3000 V	84 %	1.61 "	40.9 mm	4.02 in	190 mm	102.1 mm	7.48 "	-20 °C	70 °C	Universal Input

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 109.42
		5	$ 106.06
		10	$ 102.69
		25	$ 99.32
		50	$ 95.95
		100	$ 92.59

Description

General part information

PJA300F Series

Enclosed AC DC Converters 1 Output 36V 85 ~ 264 VAC Input
