Q-1T02I0005009i
ActiveAmphenol Custom Cable

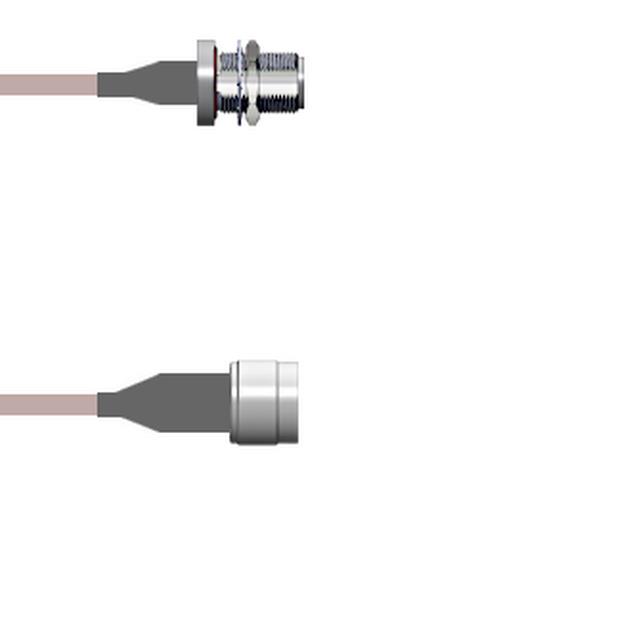

CBL ASSY NTYPE JACK TO PLUG 9"
Deep-Dive with AI
Search across all available documentation for this part.
Q-1T02I0005009i
ActiveAmphenol Custom Cable
CBL ASSY NTYPE JACK TO PLUG 9"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-1T02I0005009i |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 11 GHz |
| Length | 9 " |
| Length | 228.6 mm |
| Overall Impedance | 50 Ohms |
| Style | N-Type to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 99.41 | |
| 25 | $ 97.49 | |||
| 50 | $ 95.57 | |||
| 100 | $ 93.64 | |||
| 250 | $ 91.72 | |||
Description
General part information
Q-1T02I0 Series
Cable Assembly Coaxial N-Type to N-Type RG-316 9.000" (228.60mm)
Documents
Technical documentation and resources
No documents available
