M55-7011642R

Active

Harwin Inc.

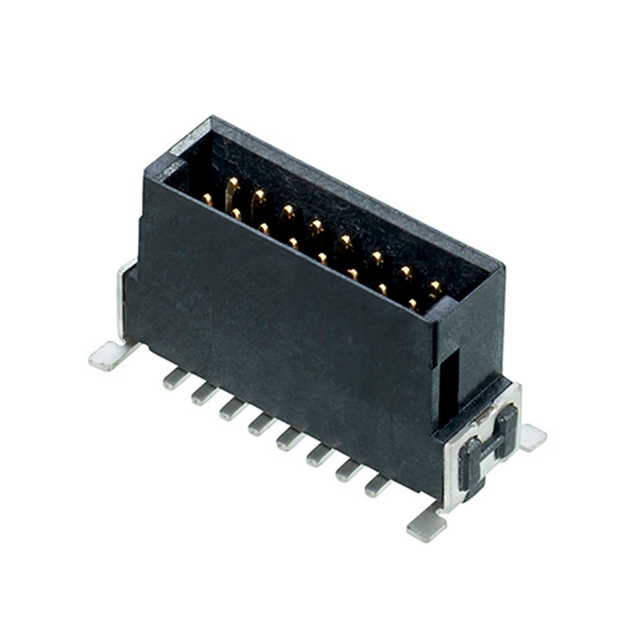

PIN HEADER, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 16 CONTACTS, SURFACE MOUNT, KONTROL M55 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M55-6001242R +3

M55-7011642R

Active

Harwin Inc.

PIN HEADER, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 16 CONTACTS, SURFACE MOUNT, KONTROL M55 SERIES

Deep-Dive with AI

DocumentsDatasheet M55-6001242R +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M55-7011642R

Applications	Industrial, General Purpose, Automotive
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µin
Contact Finish Thickness - Mating	0.025 µm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Male Pin
Current Rating (Amps)	1.2 A
Fastening Type	Latch Lock
Features	Pick and Place, Board Guide, Solder Retention
Insulation Color	Black
Insulation Height	8.25 mm
Insulation Height	0.325 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	16.9 mm, 9.5 mm, 12.3 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

M55-701 Series

Part	Mated Stacking Heights	Insulation Material	Contact Type	Insulation Height	Insulation Height	Number of Rows	Number of Positions	Applications	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Features	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Fastening Type	Termination	Number of Positions Loaded	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Finish - Post	Contact Finish - Mating	Insulation Color	Contact Length - Mating	Contact Length - Mating	Mounting Type	Contact Material	Number of Positions
Harwin Inc. M55-7018042R	9.5 mm 12.3 mm 16.9 mm	Liquid Crystal Polymer (LCP)	Male Pin	8.25 mm	0.325 in	2	80	Automotive General Purpose Industrial	0.05 in	1.27 mm	Shrouded - 4 Wall	1 µin	0.025 µm	Header	Board Guide Pick and Place Solder Retention	UL94 V-0	2.54 µm	100 µin	0.05 in	1.27 mm	Latch Lock	Solder	All	1.2 A	-55 °C	125 °C	Rectangular	Tin	Gold	Black	4 mm	0.157 in	Surface Mount	Phosphor Bronze
Harwin Inc. M55-7011642R	9.5 mm 12.3 mm 16.9 mm	Liquid Crystal Polymer (LCP)	Male Pin	8.25 mm	0.325 in	2		Automotive General Purpose Industrial	0.05 in	1.27 mm	Shrouded - 4 Wall	1 µin	0.025 µm	Header	Board Guide Pick and Place Solder Retention	UL94 V-0	2.54 µm	100 µin	0.05 in	1.27 mm	Latch Lock	Solder	All	1.2 A	-55 °C	125 °C	Rectangular	Tin	Gold	Black	4 mm	0.157 in	Surface Mount	Phosphor Bronze	16
Harwin Inc. M55-7012042R	9.5 mm 12.3 mm 16.9 mm	Liquid Crystal Polymer (LCP)	Male Pin	8.25 mm	0.325 in	2	20	Automotive General Purpose Industrial	0.05 in	1.27 mm	Shrouded - 4 Wall	1 µin	0.025 µm	Header	Board Guide Pick and Place Solder Retention	UL94 V-0	2.54 µm	100 µin	0.05 in	1.27 mm	Latch Lock	Solder	All	1.2 A	-55 °C	125 °C	Rectangular	Tin	Gold	Black	4 mm	0.157 in	Surface Mount	Phosphor Bronze
Harwin Inc. M55-7016842R	9.5 mm 12.3 mm 16.9 mm	Liquid Crystal Polymer (LCP)	Male Pin	8.25 mm	0.325 in	2	68	Automotive General Purpose Industrial	0.05 in	1.27 mm	Shrouded - 4 Wall	1 µin	0.025 µm	Header	Board Guide Pick and Place Solder Retention	UL94 V-0	2.54 µm	100 µin	0.05 in	1.27 mm	Latch Lock	Solder	All	1.2 A	-55 °C	125 °C	Rectangular	Tin	Gold	Black	4 mm	0.157 in	Surface Mount	Phosphor Bronze
Harwin Inc. M55-7011242R	9.5 mm 12.3 mm 16.9 mm	Liquid Crystal Polymer (LCP)	Male Pin	8.25 mm	0.325 in	2	12	Automotive General Purpose Industrial	0.05 in	1.27 mm	Shrouded - 4 Wall	1 µin	0.025 µm	Header	Board Guide Pick and Place Solder Retention	UL94 V-0	2.54 µm	100 µin	0.05 in	1.27 mm	Latch Lock	Solder	All	1.2 A	-55 °C	125 °C	Rectangular	Tin	Gold	Black	4 mm	0.157 in	Surface Mount	Phosphor Bronze
