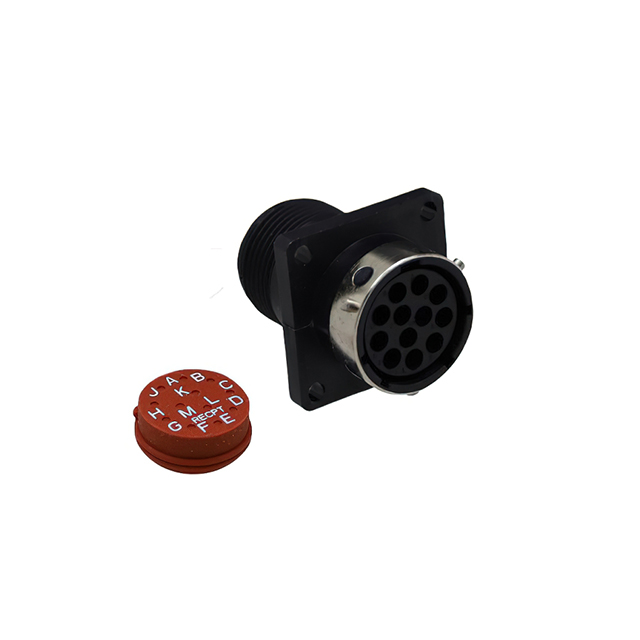

Specification	192900-0324

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Solder Cup, Crimp, Solder
Fastening Type	Detent Lock
Housing Color	Black
Includes	Grommet, Connector, O-Ring
Includes Total Count	3 pcs
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	PA, Nylon, Polyamide
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	12
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Shell Material	Nylon, Polyamide (PA)
Shell Size - Insert	14-0012
Shielding	Unshielded
Type	For Female Sockets

19290 Series

...

Part	Ingress Protection Description	Ingress Protection IP Rating	Housing Color	Connector Type	Contact Type	Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Note	Shell Material	Features	Includes	Includes Total Count	Material Flammability Rating	Mounting Type	Insert Material	Contact Shape	Shielding	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions (Normal)	Number of Positions (Total)	Number of Positions (Power)	Color	Material	Shell Size - Insert	Shell Size - Insert	Accessory Type	For Use With/Related Products	Number of Positions	Mounting Feature
ITT Cannon, LLC 192900-0550	Dust Tight Waterproof	IP67	Black	Plug Housing	Crimp Solder Cup	For Female Sockets	428	24	Contacts Not Included	Nylon Polyamide (PA)	Coupling Nut	Connector Grommet Nut	3 pcs	UL94 V-0	Free Hanging (In-Line)	Nylon PA Polyamide	Circular	Unshielded	Detent Lock	-55 °C	105 °C	28	32	4
ITT Cannon, LLC 192900-0022
ITT Cannon, LLC 192900-0718											Contains Strap Sealed														Black	Plastic	16	16	Cap (Cover) Dust	Ringlock Series Receptacles Trident Neptune
ITT Cannon, LLC 192900-0564	Dust Tight Waterproof	IP67	Black	Plug Housing	Crimp Solder Cup	For Female Sockets	213	16 S	Contacts Not Included	Nylon Polyamide (PA)	Coupling Nut	Connector Grommet Nut	3 pcs	UL94 V-0	Free Hanging (In-Line)	Nylon PA Polyamide	Circular	Unshielded	Detent Lock	-55 °C	105 °C	13	15	2
ITT Cannon, LLC 192900-0548	Dust Tight Waterproof	IP67	Black	Plug Housing	Crimp Solder Cup	For Female Sockets	48	24	Contacts Not Included	Nylon Polyamide (PA)	Coupling Nut	Connector Grommet Nut	3 pcs	UL94 V-0	Free Hanging (In-Line)	Nylon PA Polyamide	Circular	Unshielded	Detent Lock	-55 °C	105 °C										48
ITT Cannon, LLC 192900-0481	Dust Tight Waterproof	IP67	Black	Receptacle Housing	Crimp Solder Solder Cup	For Female Sockets	48	24	Contacts Not Included	Nylon Polyamide (PA)		Connector Grommet Nuts O-Ring	5 pcs	UL94 V-0	Panel Mount	Nylon PA Polyamide	Circular	Unshielded	Detent Lock	-55 °C	105 °C										48	Bulkhead Front Side Nut
ITT Cannon, LLC 192900-0324	Dust Tight Waterproof	IP67	Black	Receptacle Housing	Crimp Solder Solder Cup	For Female Sockets			Contacts Not Included	Nylon Polyamide (PA)		Connector Grommet O-Ring	3 pcs	UL94 V-0	Panel Mount	Nylon PA Polyamide	Circular	Unshielded	Detent Lock	-55 °C	105 °C							14-0012			12	Flange
ITT Cannon, LLC 192900-0057	Dust Tight Waterproof	IP67	Black Silver	Plug Housing	Crimp Solder Cup	For Female Sockets	19	16 S	Contacts Not Included	Nylon Polyamide (PA)	Coupling Nut	Connector Grommet Nut	3 pcs	UL94 V-0	Free Hanging (In-Line)	Nylon PA Polyamide	Circular	Unshielded	Detent Lock	-55 °C	105 °C										19
ITT Cannon, LLC 192900-0487																									Black		24	24	Hex Nut	Trident Neptune Jam Nut Receptacles
ITT Cannon, LLC 192900-0323	Dust Tight Waterproof	IP67	Black	Receptacle Housing	Crimp Solder Solder Cup	For Female Sockets			Contacts Not Included	Nylon Polyamide (PA)		Connector Grommet Nut O-Ring	4 pcs	UL94 V-0	Panel Mount	Nylon PA Polyamide	Circular	Unshielded	Detent Lock	-55 °C	105 °C							14-0012			12	Flange
